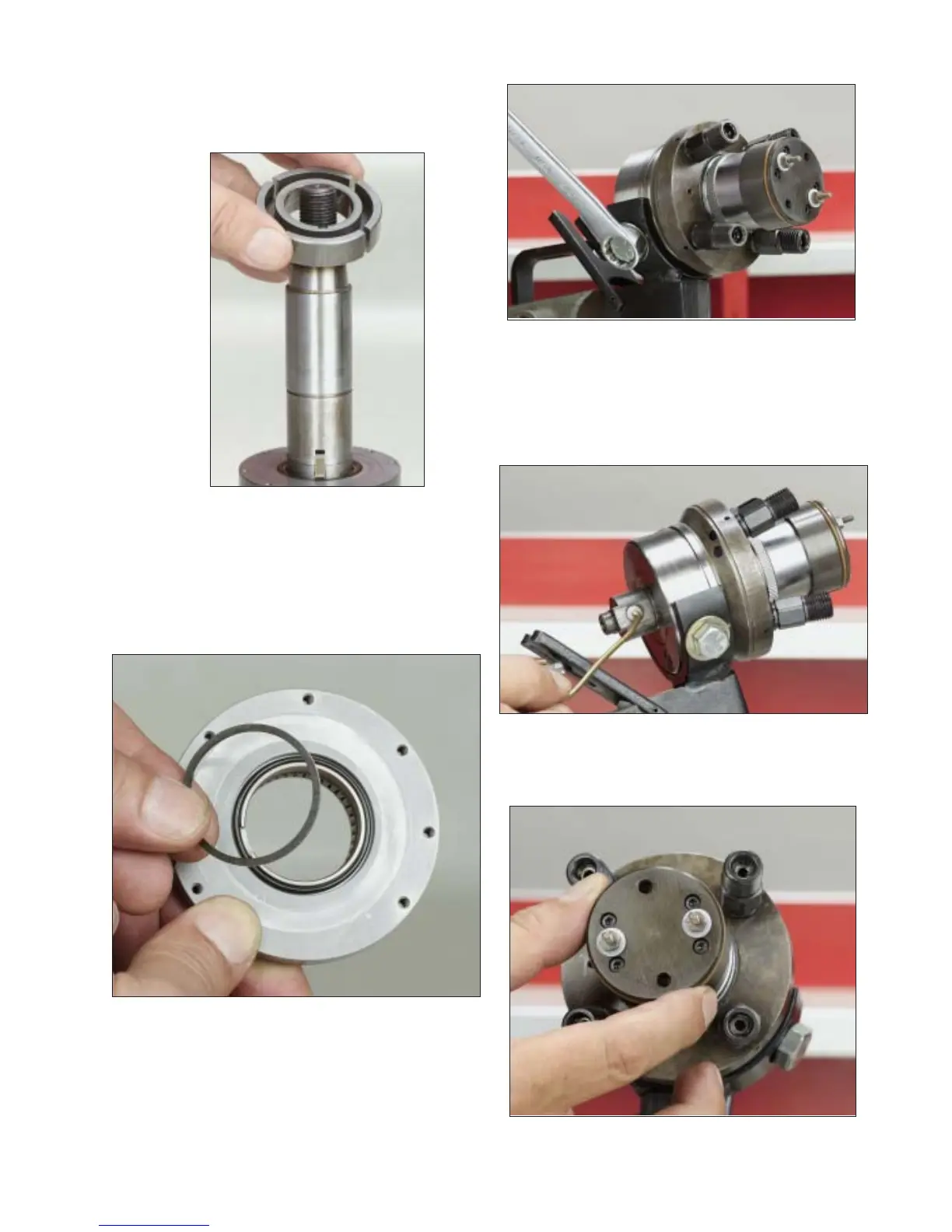

Step 30 Lift the blade retainer off the drive
shaft and remove the woodruff key from the
shaft.
Step 31 Lift off the inner bearing retainer and
remove the sealing ring and o-ring from the
plate. Discard the o-ring but retain the sealing
ring for reuse if it is still serviceable
Step 32 Install the head and rotor into the
30851 fixture.
Fig. 2-30
Fig. 2-31
.
Step 33 Using the brass hook, 13301 remove
the 2 rotor plungers from the rotor. NOTE: Do
not remove the set screw from the drive end of
the rotor – it is not serviceable.
Step 34 Unthread and remove the solenoid
assembly. Remove and discard the o-ring seals.
Fig. 2-32
Fig. 2-33
Fig. 2-34
20
