Step 34 Install an outer bushing, new seal,
and an inner bushing onto each terminal stud.
Lubricate the seals with Lubriplate grease and
assemble the two terminal stud assemblies to
the armature cover.
Step 35 Lubricate the seals on the solenoid
body with Lubriplate grease and assemble the
armature cover to the solenoid body. Tighten
the terminal studs to 24-28 lbf-inches (2.5-3 N-
m).

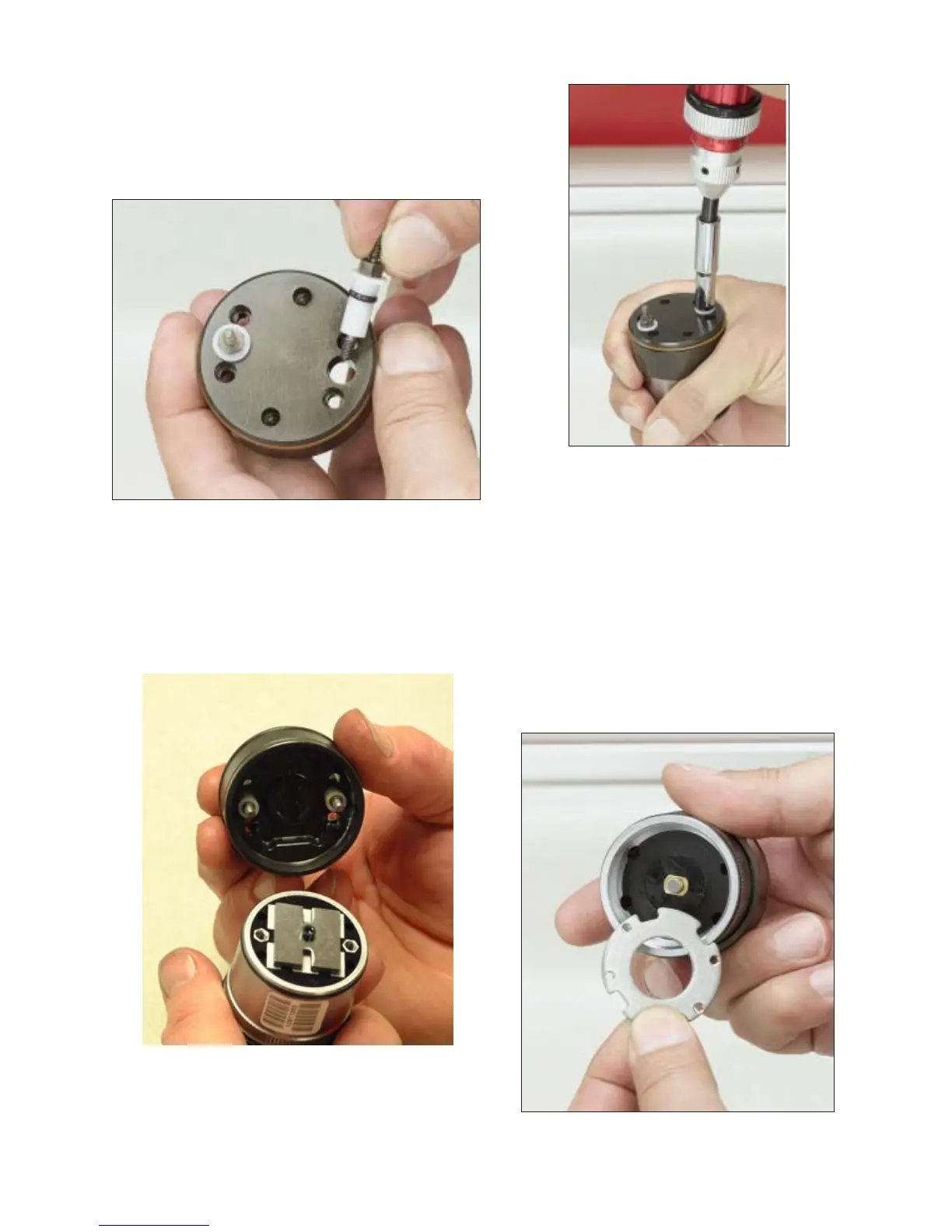

Fig. 4.34
Fig. 4.35a
Fig. 4.35b
Fig. 4.36a
37
Step 36 Orient the armature cover retainer
with the flat side against the end of the solenoid
and with the holes aligned. Install new copper
washers to the armature cover retainer screws
and assemble the screws through the solenoid
to engage the cover retainer. Using a T10 bit,
tighten the screws to 15-18 lbf-inches (1.7-2 N-
m). Check for freedom of movement of the ar-
mature pin assembly in the solenoid by shak-
ing the assembly and observing armature pin
movement.
