41

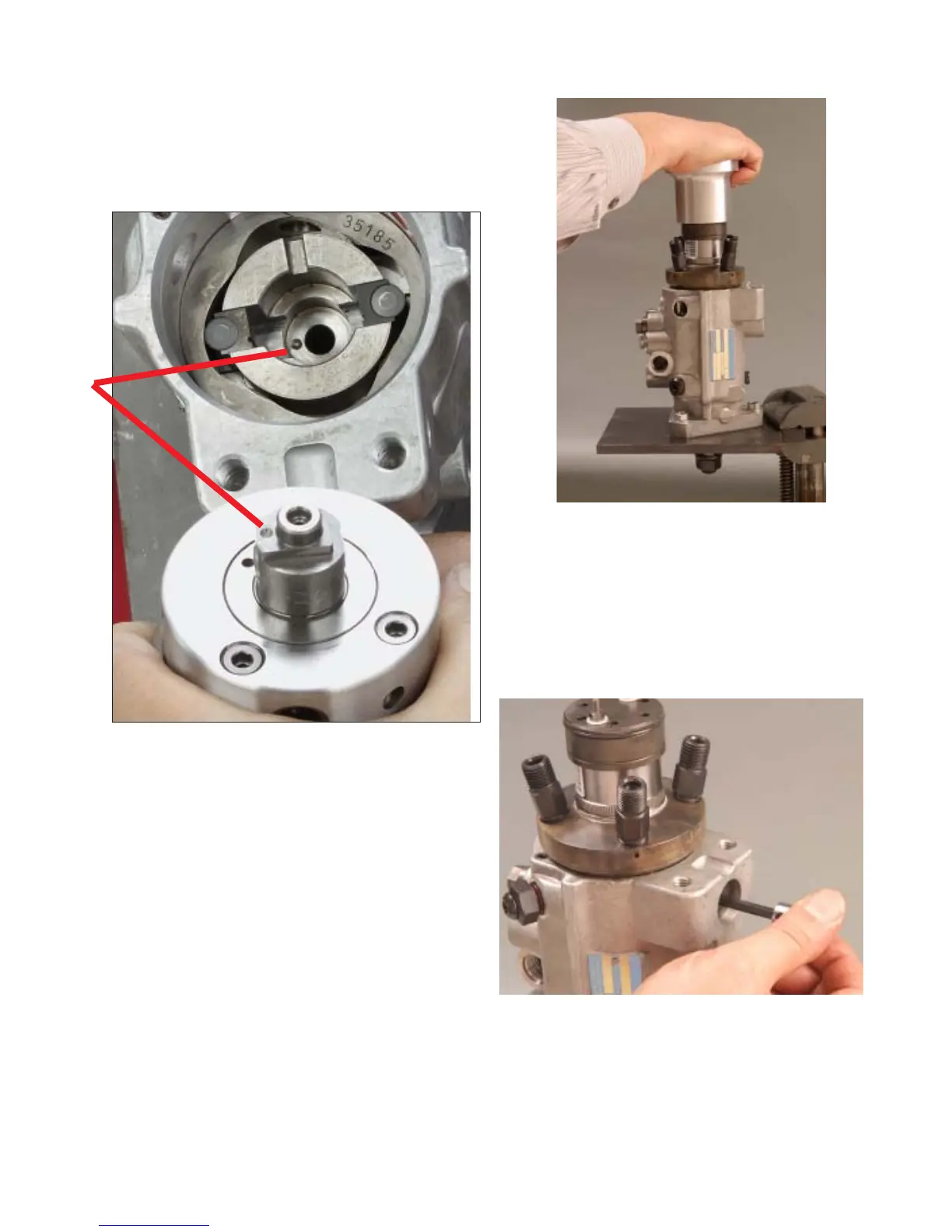

Step 47 Carefully align the dot on the rotor
drive tang with the alignment dot on the drive
shaft and install the head and rotor assembly
into the housing lining up the head locking and
locating screw holes.
Step 48 Place tool 30854 over the fuel con-
trol solenoid. Push on the tool and if necessary,
rotate the drive shaft slightly to engage the ro-
tor tang with drive shaft slot. NOTE: A firm push
on the head and rotor assembly will be required
to seat the head and rotor assembly in the hous-
ing.
Step 49 Using protection tube 31215, as-
semble two new seals to the head locating
screw and lubricate with Lubriplate grease. If
necessary rotate head in housing slightly to align
holes and install head locating screw finger
tight.
Fig. 4.47
Fig. 4.48
Fig. 4.49
