– 9 –
ENGLISH
2 Pass the fastener through the ferrite
core.
3 Loop the fastener around the cable
and lock it. Use scissors to cut off
any excess.
5-2. Connecting to host computer (serial interface)
1 Turn off power to both the host
computer and the printer.
2 Insert the connector at one end of
the interface cable into the connec-
tor on the printer and the other con-
nector into the connector for the
host computer.
3 Next, fasten the right and left screws
for the respective interface connec-
tors to fix them in place on the
connectors.

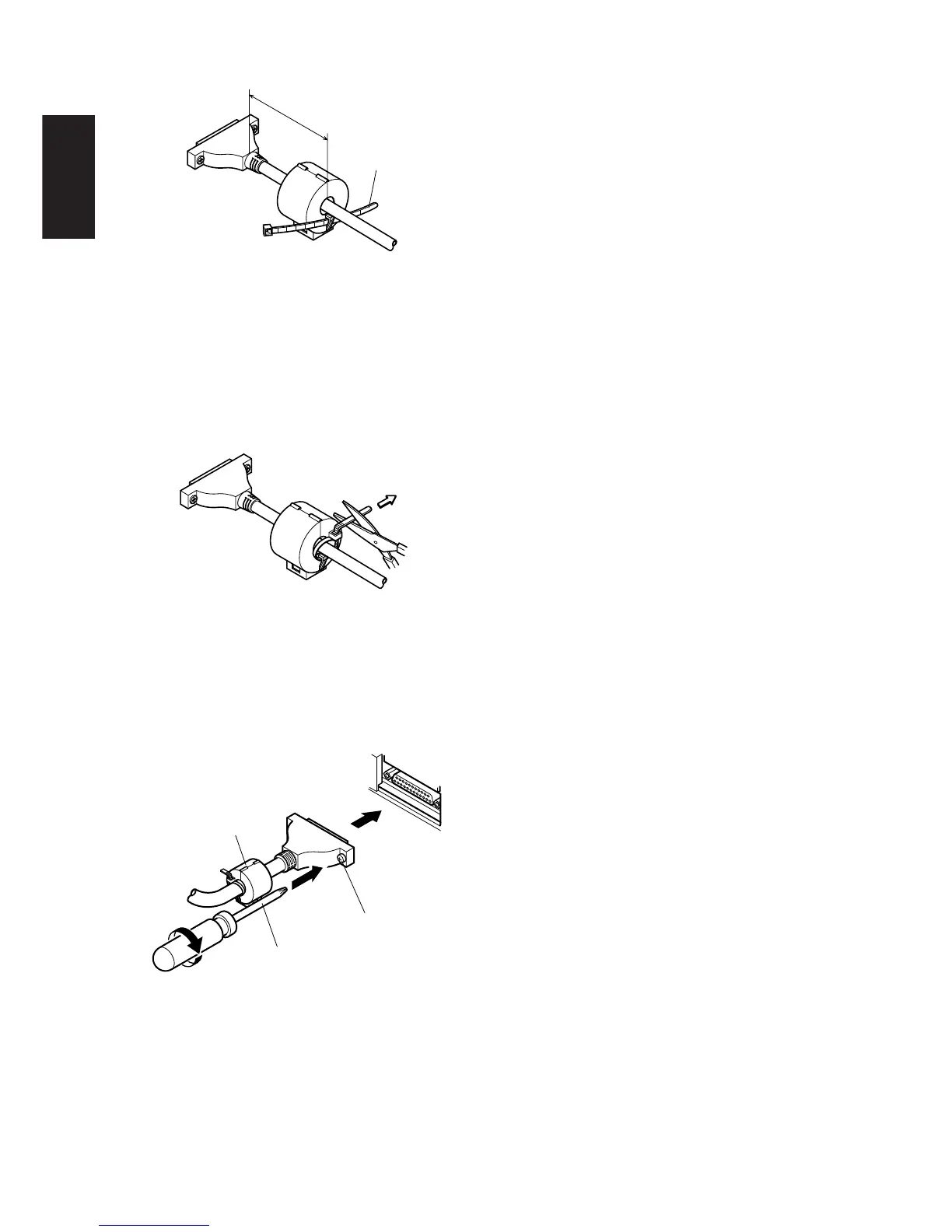

Fig. 5-2
Fig. 5-3
5 cm
maximum
Fastener
Pull and cut
Fig. 5-4 Connecting the serial
interface cable
Ferrite core
Screwdriver
Screws
To Next Page
