4. Optional AC Adapter
Use the following procedure to install the optional AC adapter.
Fig. 4-2 Flat side faces this way
1 Turn the printer over.
2 Plug the AC adapter’s cord into the socket as shown in the above illustration.
Make sure the flat side of the plug is facing towards the inside of the printer.
3 Use one of the nylon fasteners that comes with the printer to fasten the cord
at the point indicated in the illustration.

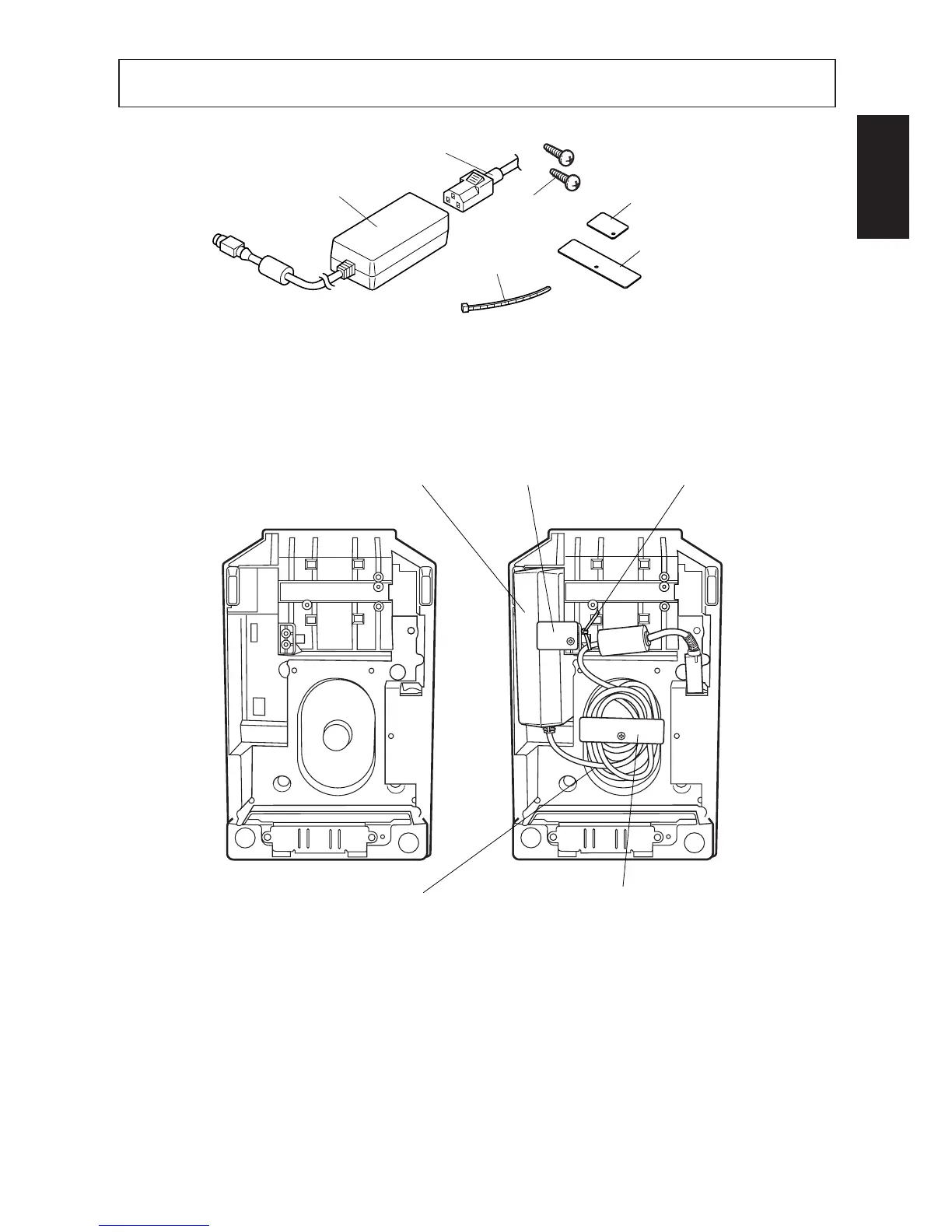

AC adapter
Adapter holder
Fasteners
AC adapter cord
Cord holder
[Before AC adaptor installed]
[After AC adaptor installed]
Fig. 4-1
AC adaptor
Screws
Fastener
Adaptor holder
Cord holder
Power code
