Appendix D: DIP Switch Setting
D-1. Parallel Interface
Be sure to turn the power to both the printer and host computer off before
changing the setting of the DIP switches.

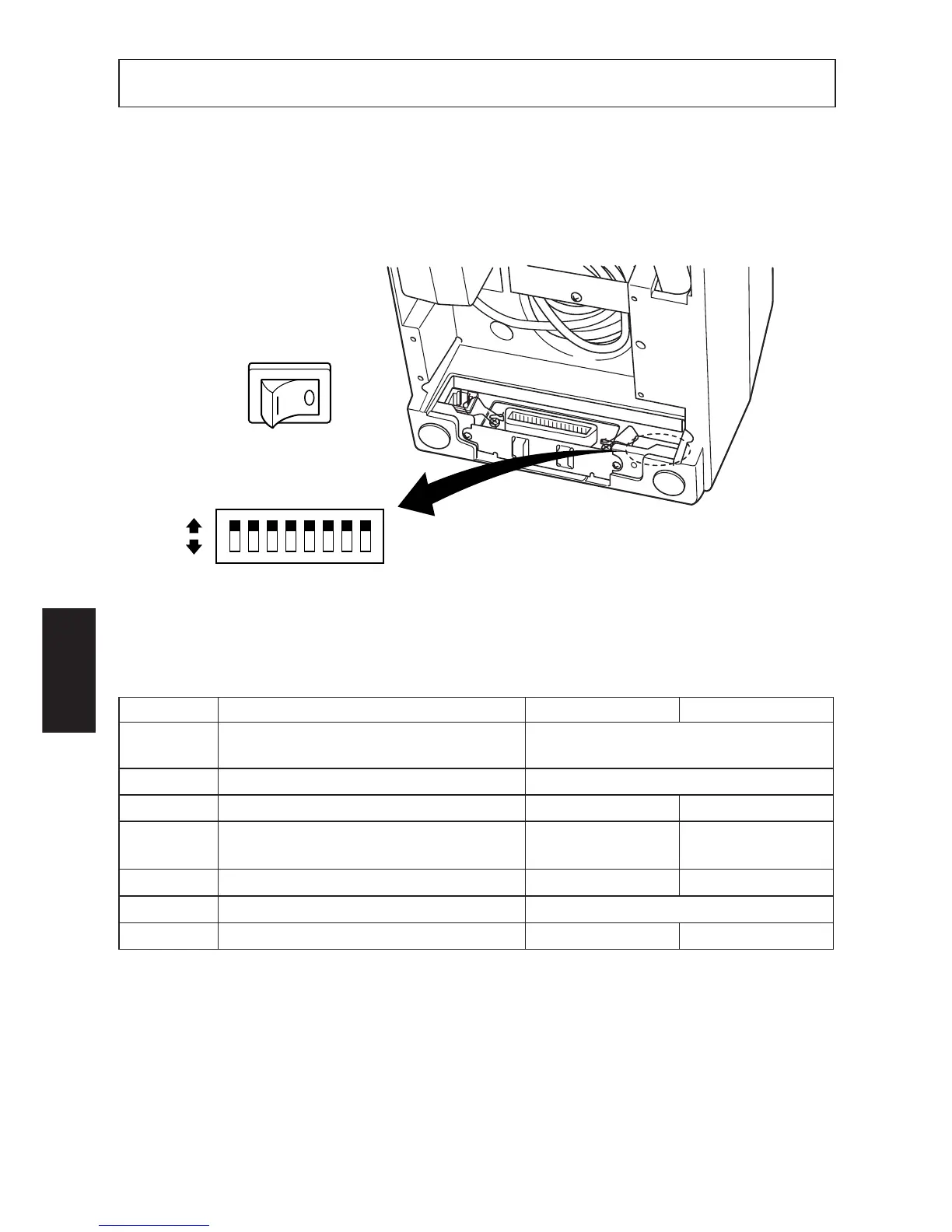

Fig. D-1 DIP switch array
■ DIP switch 1 Factory presetting: All on
*1
SW Function ON OFF
1-1
Reset input conditions or Enable/disable
1-2
conditions IEEE1284 reverse mode
See table below
1-3 Always ON Should be set on
1-4 Auto Cutter *1 Invalid Valid
1-5 Printing width *2
210 dots 200 dots
(420 half dots) (400 half dots)
1-6 Automatic status function *3 Invalid Valid
1-7 Should not be change (Should be set on)
1-8 Command emulation Star ESC/POS
Power off
ON
OFF
DIP switch 1
