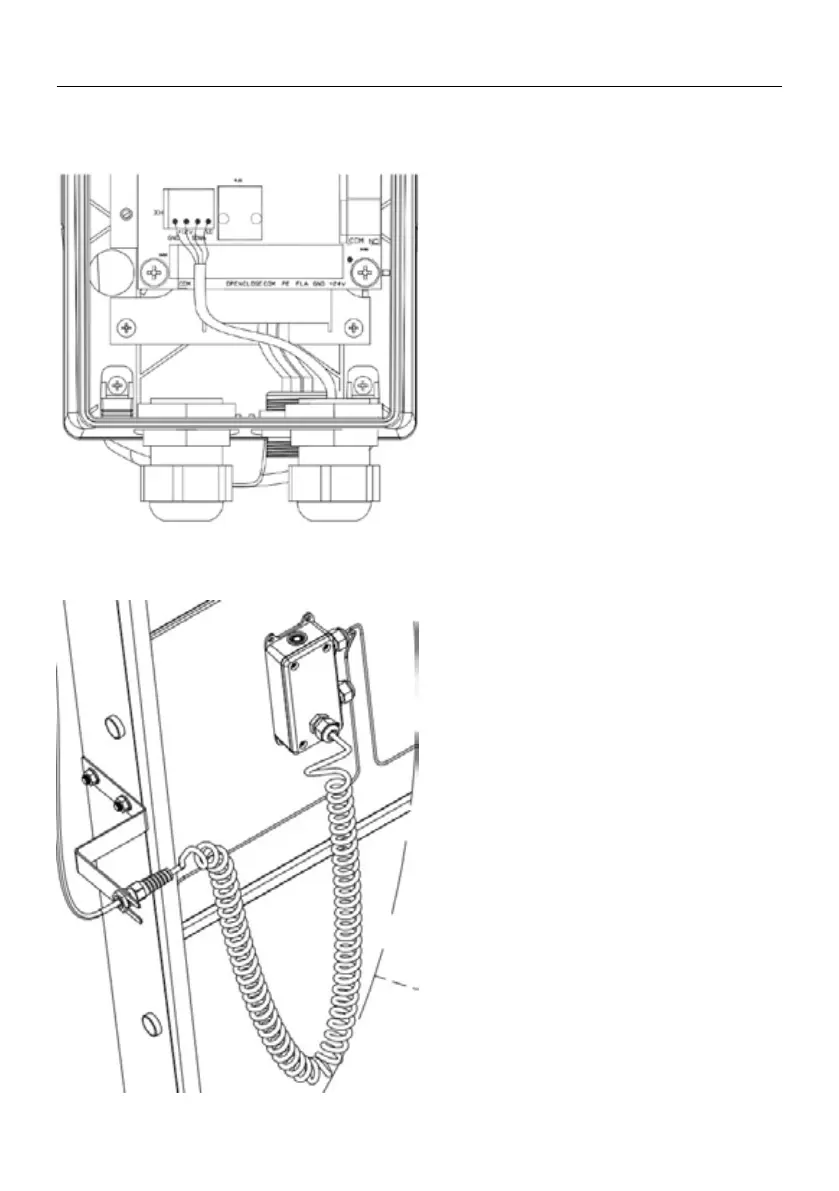

1. To connect the spring wire to the
motor, you need to remove the 8.2K
resistor and short wire from the original
safety terminal, and then connect the
spring wire to the safety terminal from
left to right according to the color of the
wire.
2. Input +12V, the green wire is con-
nected to SINA, and the black wire is
connected to SD.
1. A torsion-resistant waterproof con-
nector is installed on the spring wire
bracket, and then xed on the side of
the door frame by bolts, and the long
straight end of the spring wire passes
through the torsion-resistant waterpro-
of connector to connect to the motor.
Note: After the spring wire passes
through the torsion-resistant waterpro-
of connector, the nut of the waterproof
connector needs to be tightened to
prevent the spring wire from sliding.
DESCRIPTION OF THE INPUTS / OUTPUTS OF THE CONTROL
