4 Scope of delivery
• StecaGrid 3000/3600 
• Mounting plate 
• AC plug 
• Installation and operating instructions 




StecaGrid 3000
StecaGrid 3600
Installations- und Bedienungsanleitung
Installation and operating instructions
Notice d'installation et d'utilisation
742.221 | Z03 | 11.43
DE EN FR

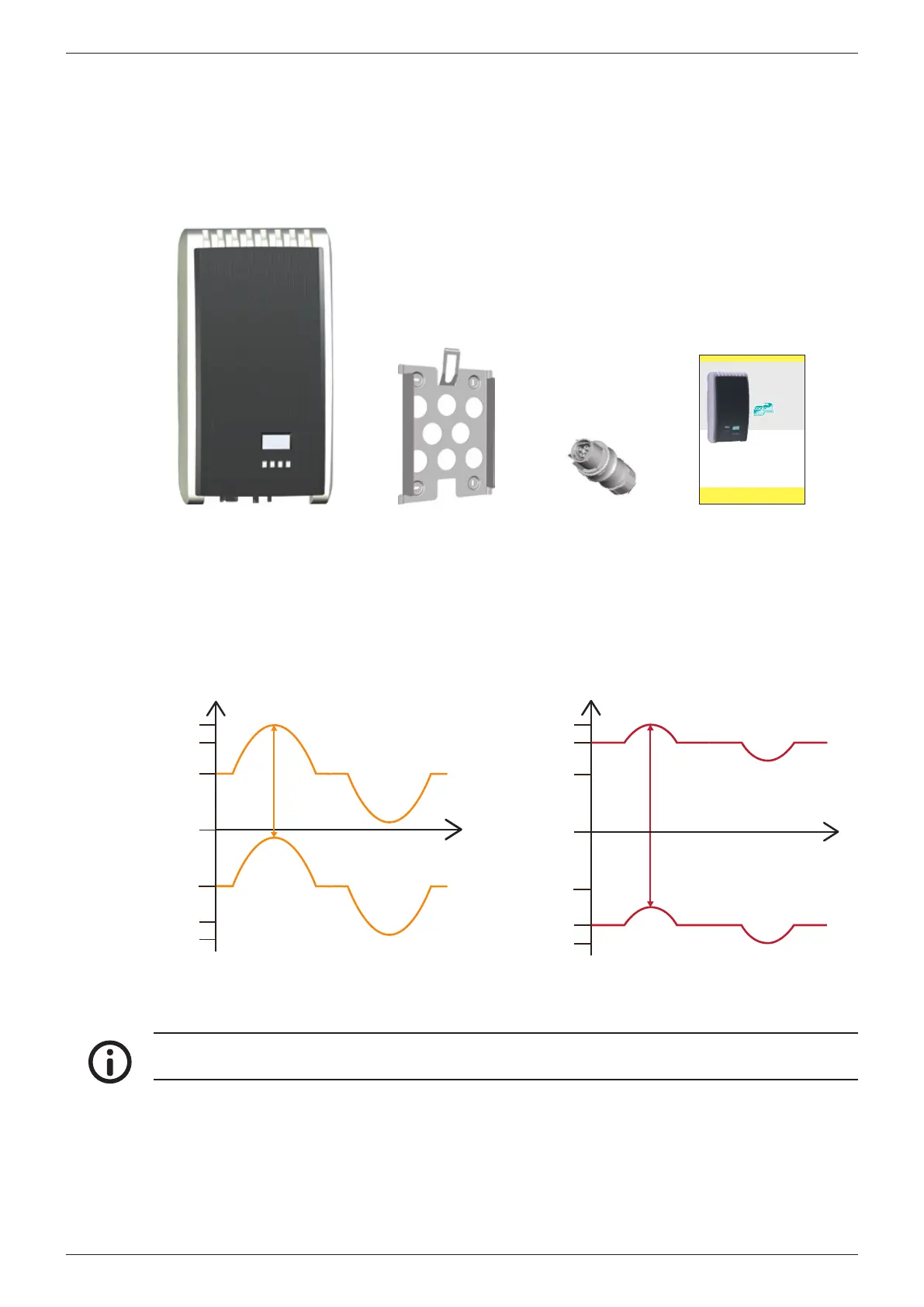

Fig. 3: Scope of delivery
5 Proper usage
The inverter may only be used in grid-connected photovoltaic systems. The inverter is suitable for
use with all solar modules whose connections do not need to be grounded.
Potential curves of the photovoltaic voltage U
PV
at 350 V and 550 V
175 V
-175 V
-275 V
275 V
320 V
U
t
0 V
-320 V
U
PV
= 350 V
175 V
-175 V
-275 V
275 V
320 V
0 V
-320 V
U
t
U
PV
= 550 V
Fig. 4: Potential curves of the photovoltaic voltage U
PV
at 350 V (left) and 550 V (right);
U
PV
= Potential between the plus and minus poles at the DC input
Note
An overview of suitable solar modules is available at www.stecasolar.com/matrix.
