Install Loading Equipment Docking Base Operator/Maintenance Manual P129391-130
NOTE: The docking base mounts to the floor.

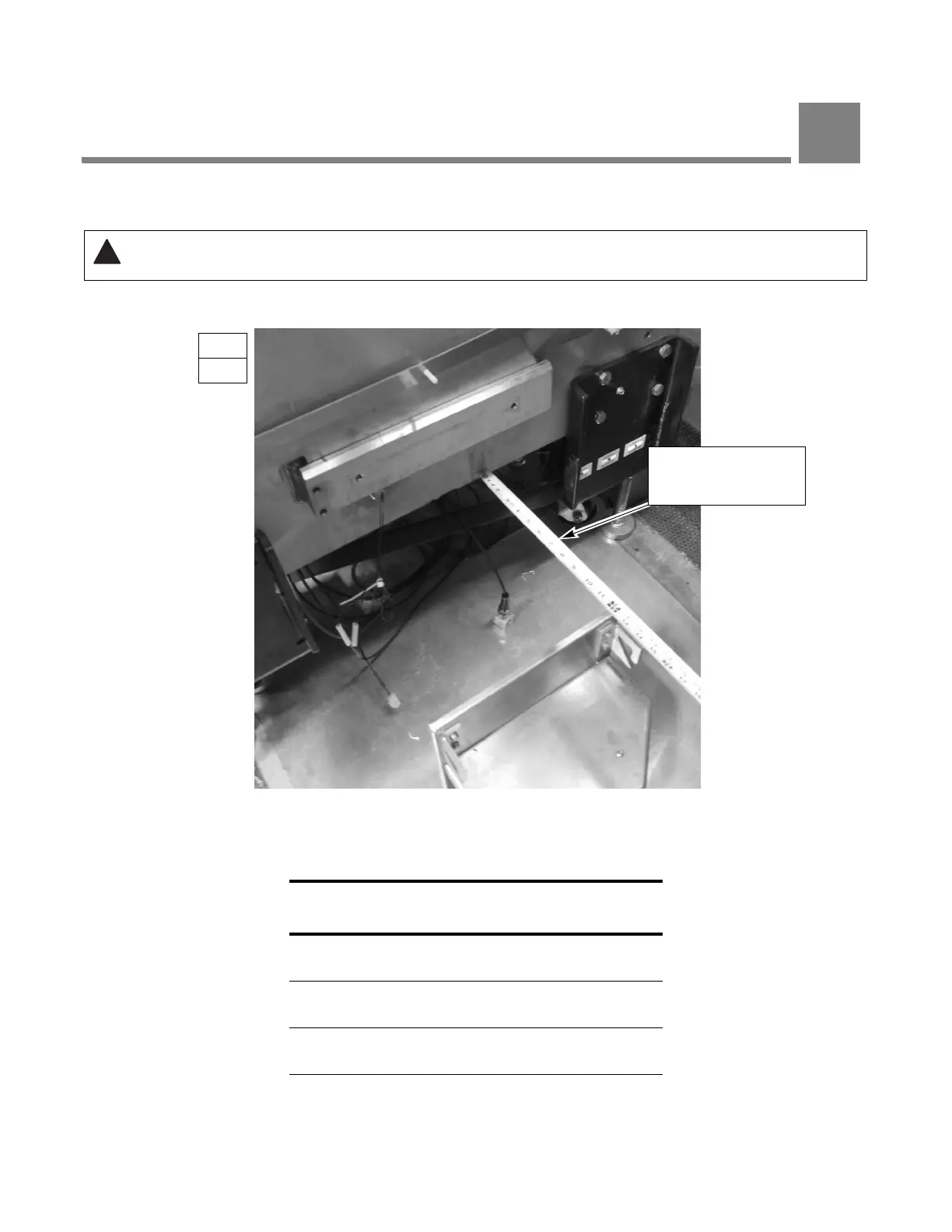

STEP 1: Measure for correct docking base distance from bottom end frame.
CAUTION – POSSIBLE EQUIPMENT DAMAGE HAZARD: Ensure docking base is properly aligned
to allow correct entry of loading car into chamber before permanently fastening base to floor.
Table 3-1. Measure from End Frame to Docking Plate
Sterilizer Configuration
(Chamber Size/Door)
Distance of Dock from
Sterilizer End Frame
26" x 26" (660 x 660 mm)
Sliding Door
7-27/32"
(198 mm)
26" x 37.5" (660 x 953 mm)
Hinged Door
6-15/16"
(176 mm)
26" x 37.5" (660 x 953 mm)
Sliding Door
9-9/16"
(243 mm)
!
Measure for Dock Position
from End Frame (see
Table 3-1)
STEP
1
INSTALL LOADING EQUIPMENT
DOCKING BASE
