Install Loading Car Shelf
Keyhole slots along loading car frame provide support points for
adjustable shelving.
STEP 1: Chose desired height of shelf.
STEP 2: Align shelf with chosen holes.
STEP 3: Insert support bar through upright and shelf.
STEP 4: Repeat procedure for remaining shelves.
Install Side Gates
Install
STEP 1: Insert side gates into keyhole slots on loading car uprights.
STEP 2: Repeat procedure for remaining side gates.
Remove
STEP 1: Lift side gate until flanges touch top of keyhole slot.
STEP 2: Lift gate away from loading car frame.

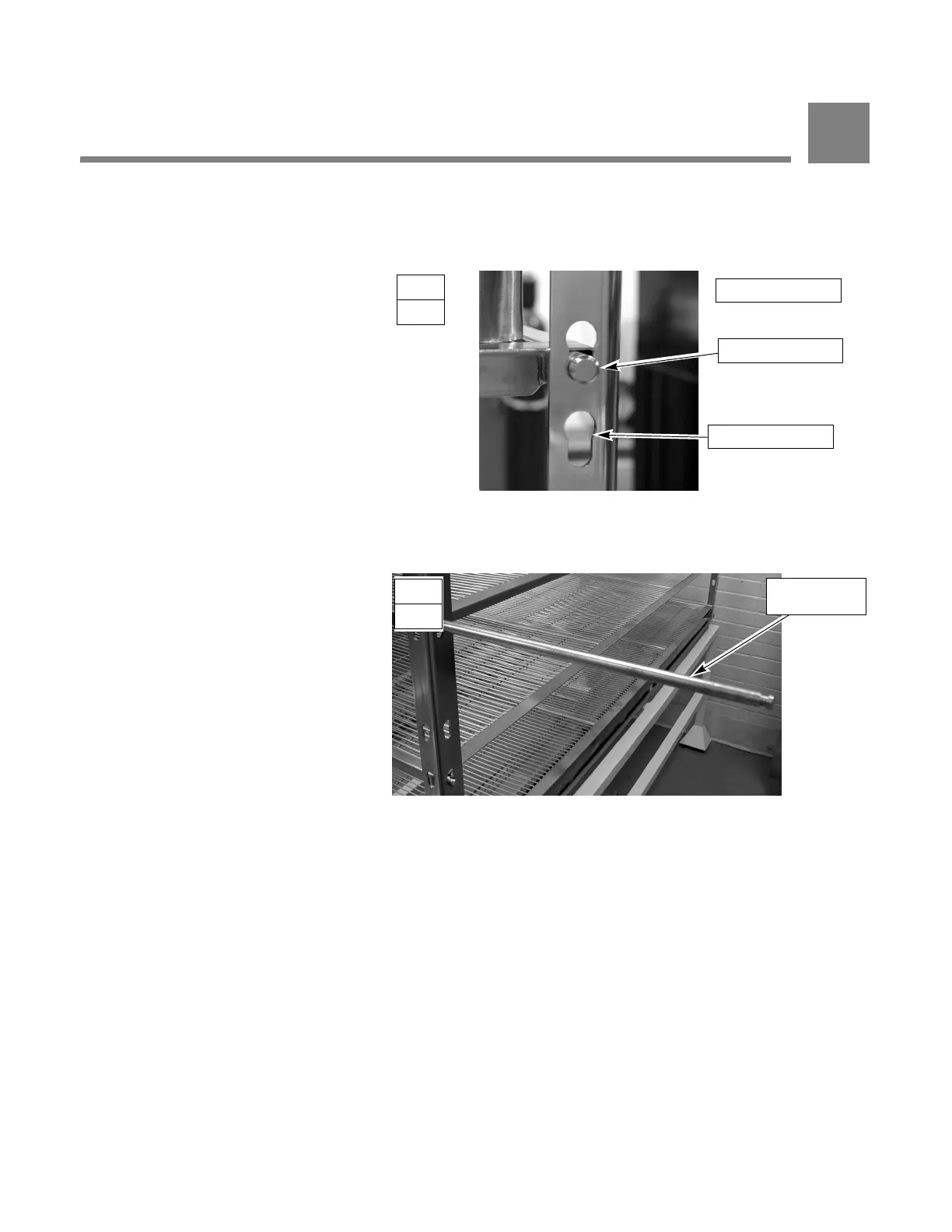

Keyhole Slot
Shelf Support Rod
Choose Shelf Height
STEP
1
Insert Shelf
Support Rod
STEP
3
