Steris Evolution Series - Adjust Transfer Carriage for Operation

4-2
P129391-130 Operator/Maintenance Manual Installation
Adjust Transfer Carriage for Operation
Adjust Transfer Carriage Height
Use following instructions to adjust transfer carriage height. Proper
transfer carriage height is required when placing loading car in
sterilizer chamber.
STEP 1: Position transfer carriage with empty loading car so that
end of transfer carriage is just above end of chambers
tracks.
• Measure distance of rollers above chamber tracks.
• If rollers are 1/8" (3 mm) above chamber tracks, no
further adjustments are required.
• If rollers are not 1/8" (3 mm) above chamber tracks,
proceed to Step 2.
NOTE: During adjustment procedure check mechanism
for binding. If binding occurs, adjust to eliminate binding.

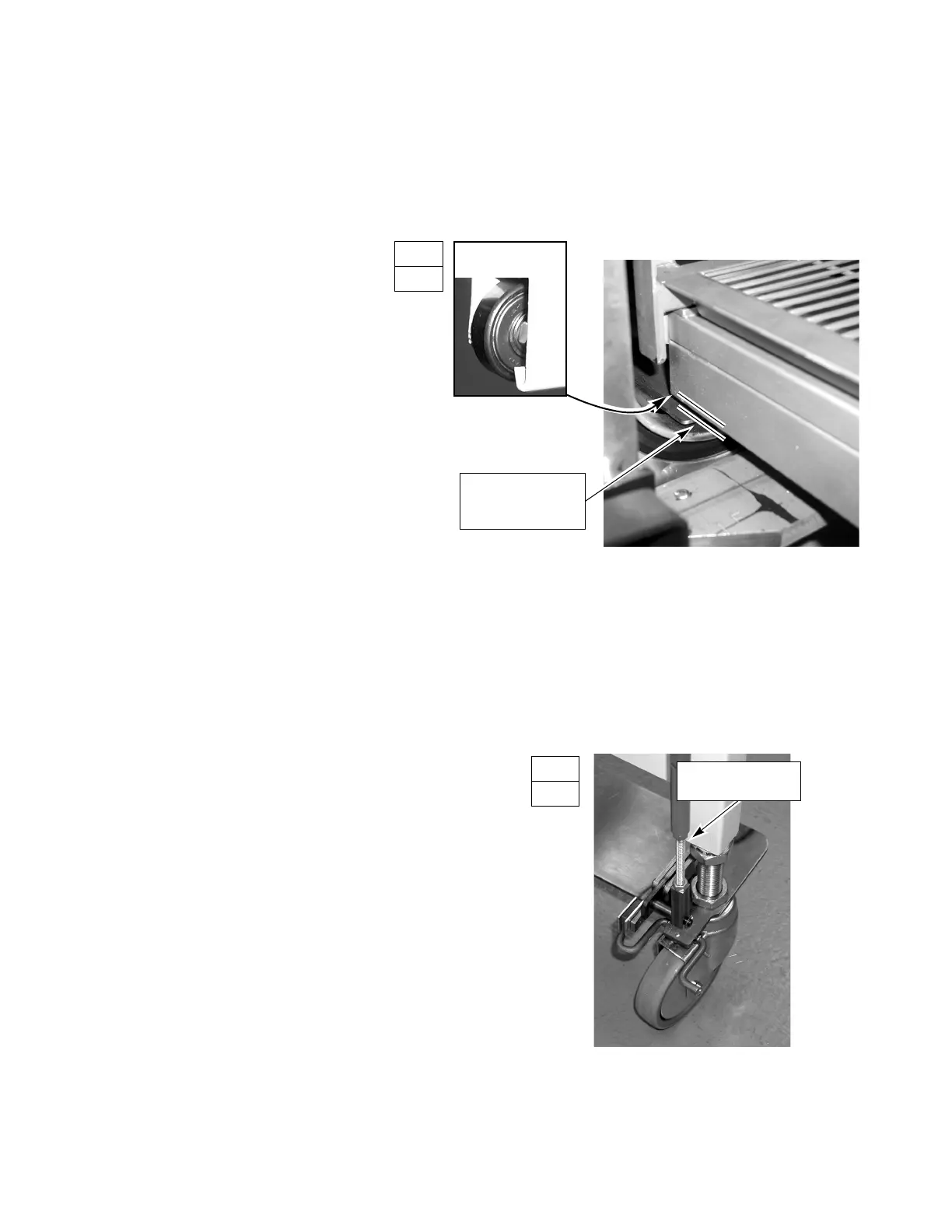

Transfer Carriage
Roller
Measure for 1/8"
(3 mm) gap between
roller and track.
STEP
1
Tighten or Loosen to
Reduce Binding
STEP
1
