4-4
P129391-130 Operator/Maintenance Manual Installation

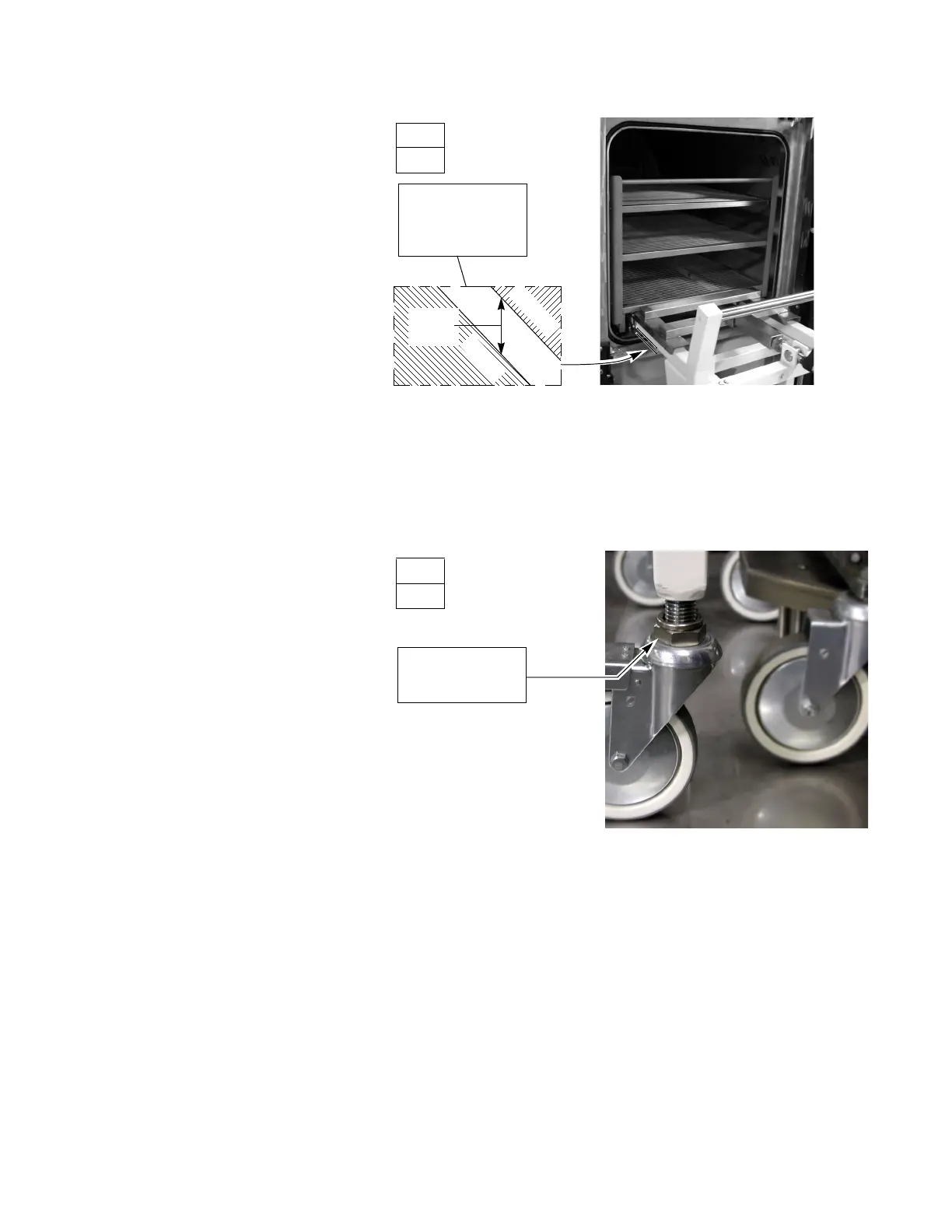

STEP 5: Push transfer carriage completely into sterilizer chamber
on tracks.
• When transfer carriage is fully pushed into chamber,
gap below carriage roller bar and top of chamber track
must be 5/16" (8 mm).
• If necessary, adjust rear casters.
STEP 6: Loosen upper 1"-8 UNC nut on rear casters.
• Adjust 1"-8 UNC nut at bottom of rear caster stem until
gap is 5/16" (8 mm) gap.
Measure for 5/16"
(8 mm) gap between
roller bar and chamber
track
STEP
5
5/16"
(24 mm)
R
o
l
l
e
r
B
a
r
T
r
a
c
k
STEP
6
Loosen Nut and Run to
Bottom of Rear Caster
Stem
To Next Page
