STIEBEL ELTRON WPF 5 basic - Output Diagrams WPF 5 S Basic

INSTALLATION
Specication
64 | WPF basic www.stiebel-eltron.com

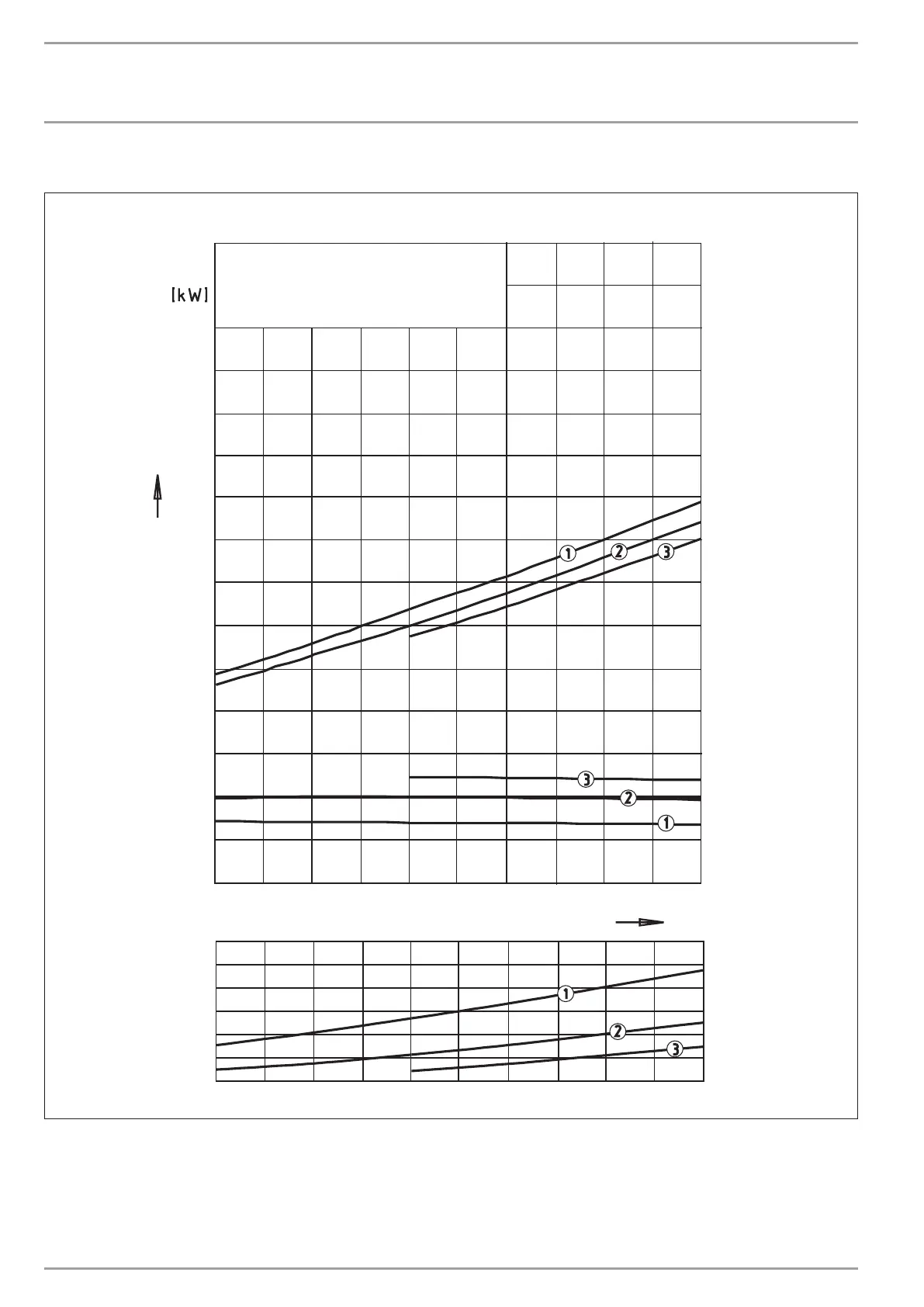

15.11 Output diagrams WPF 5 S basic
15
10
5
0
-5 0 5
10 15 20
8
7
6
5
4
3
2
°C
Ethylenglykol/W assergemisch mit 33 V ol.% Ethylenglykol
1=V orlauf temperatur 35 °C V olllast
2=V orlauf temperatur 50 °C V olllast
3=V orlauf temperatur 60 °C V olllast
26�03�01�0257
Performance factor ε
HP
Power consumption P
HP
Heat Output
Q
.
HP
Inlet temperature of Source Medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 50 °C
3 Flow temperature 60 °C
