15.9 Output diagrams WPF 13 basic
Legend for output diagrams
Y Heating output [kW] / power consumption [kW] / coefficient of performance e [-]
X Inlet temperature of the WQA medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 45 °C
3 Flow temperature 55 °C
4 Flow temperature 60 °C

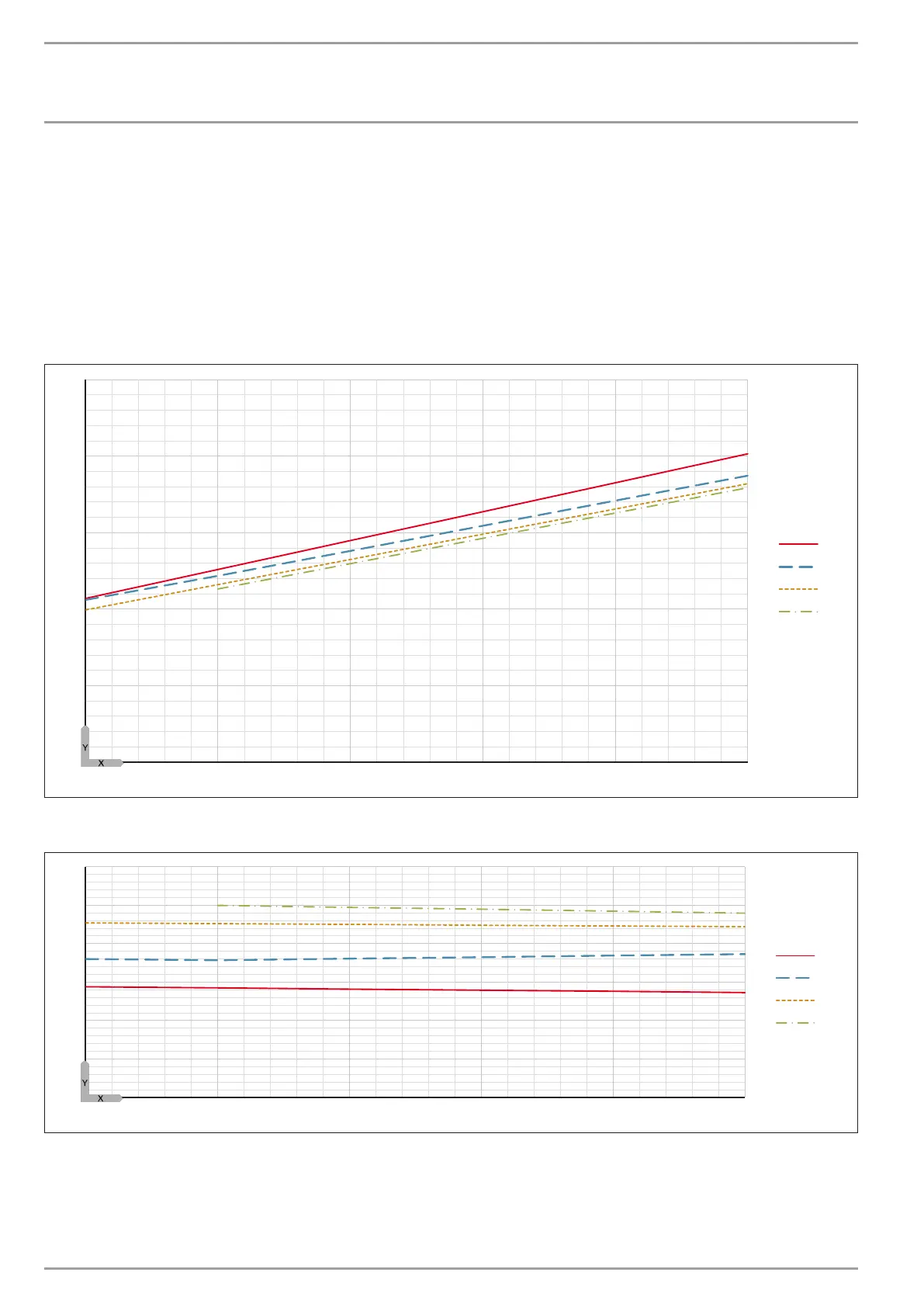

Heating output WPF 13 basic
0
5
10
15
20
25
-5 0 5 10 15 20
1
2
3
4
D0000022775
Power consumption WPF 13 basic
0
1
2
3
4
5
6
-5 0 5 10 15 20
1
2
3
4
D0000022775
