WORKSHOP MANUAL
MP 84/98 - MP 84/98 Hy
hydrostatic drive models
You cannot make any further adjustments from
the outside. Therefore you need to dismantle the
whole rear axle of the machine and contact one of
the manufacturer’s Service Centres.
case, the free move-
ment can be adjusted
with the screw (8), un-
less the brake pads or
discs are so worn that
they need replacing.

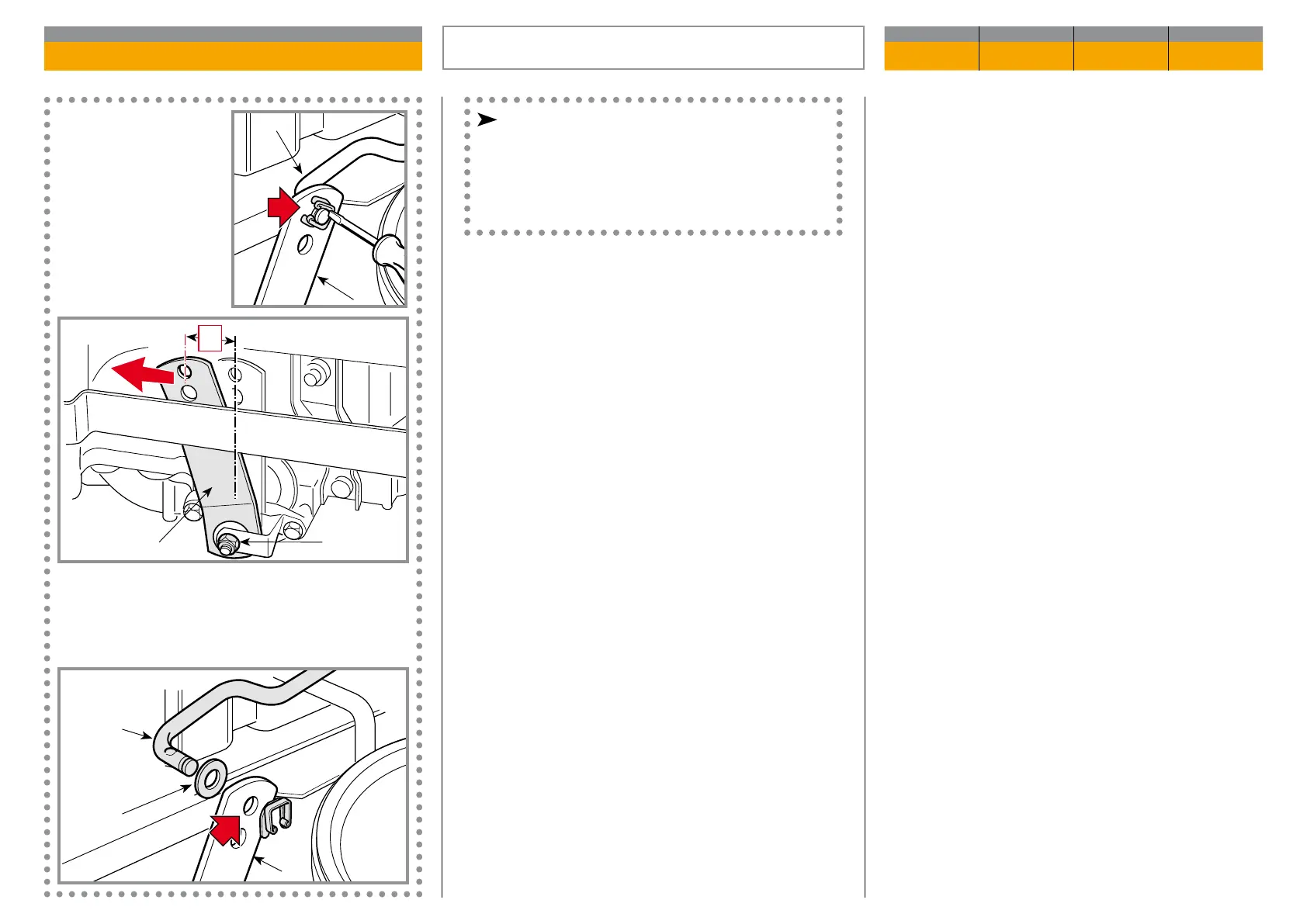

When connecting the rod (3) be sure to use the
uppermost hole in the lever (7) and to replace the
washer (9); then check the length of the spring
again (2).
CHAPTER REVISION FROM ... PAGE
4.2 1 2018 2 of 2
BRAKE ADJUSTMENT
7
3
7 8
20
mm
7
3
9
