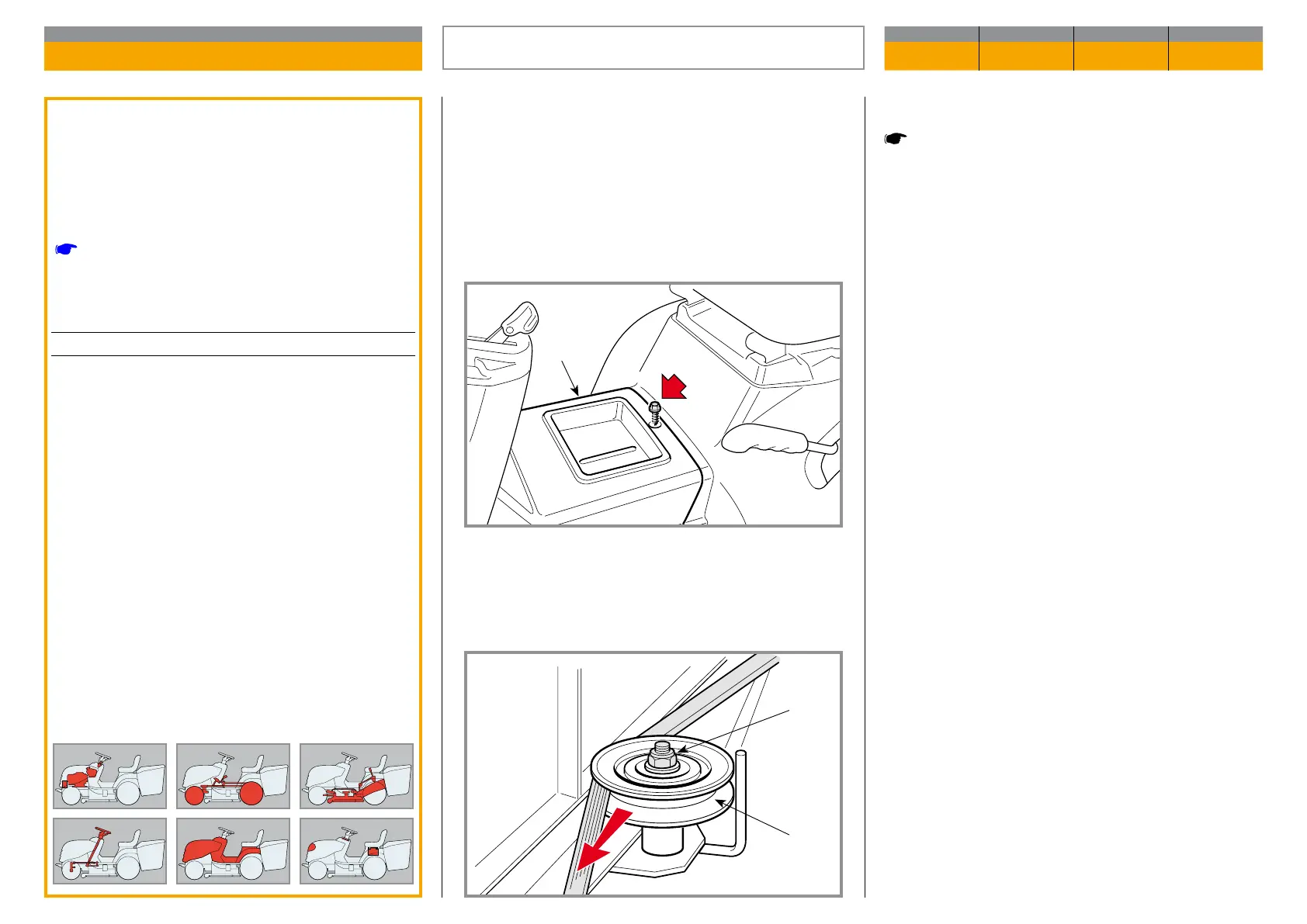

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
When assembly is completed, ...
Adjust the drive engagement.
Bring the cutting deck to the lowest position «1».
Engage the parking brake to slacken o the belt and
obtain greater operating convenience.
Remove the inspection hatch (1).
Unscrew the nuts (2) and remove the two small wheels
(3) by moving them toward the rear of the machine.
General informations:
Related topics:
[
4.3] Drive belt adjustment
Tightening torques
3 Nuts for small wheels ..................... 25 ÷ 30 Nm
REPLACEMENT OF THE SMALL WHEELS
FOR THE DRIVE BELT
CHAPTER REVISION FROM ... PAGE
6.5 0 2018 1 of 1
