WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
General informations
Removing the cutting deck facilitates all the over
haul and replacement of hubs, bearings and
blade shafts.
With some practice and experience it is possible
to do this work with the deck still in position.
Related topics
[
4.5] Aligning the cutting deck
[
5.8] Removing the ejection conveyor
Tightening torques
3 Steering rod xing nut .................... 18 ÷ 20 Nm

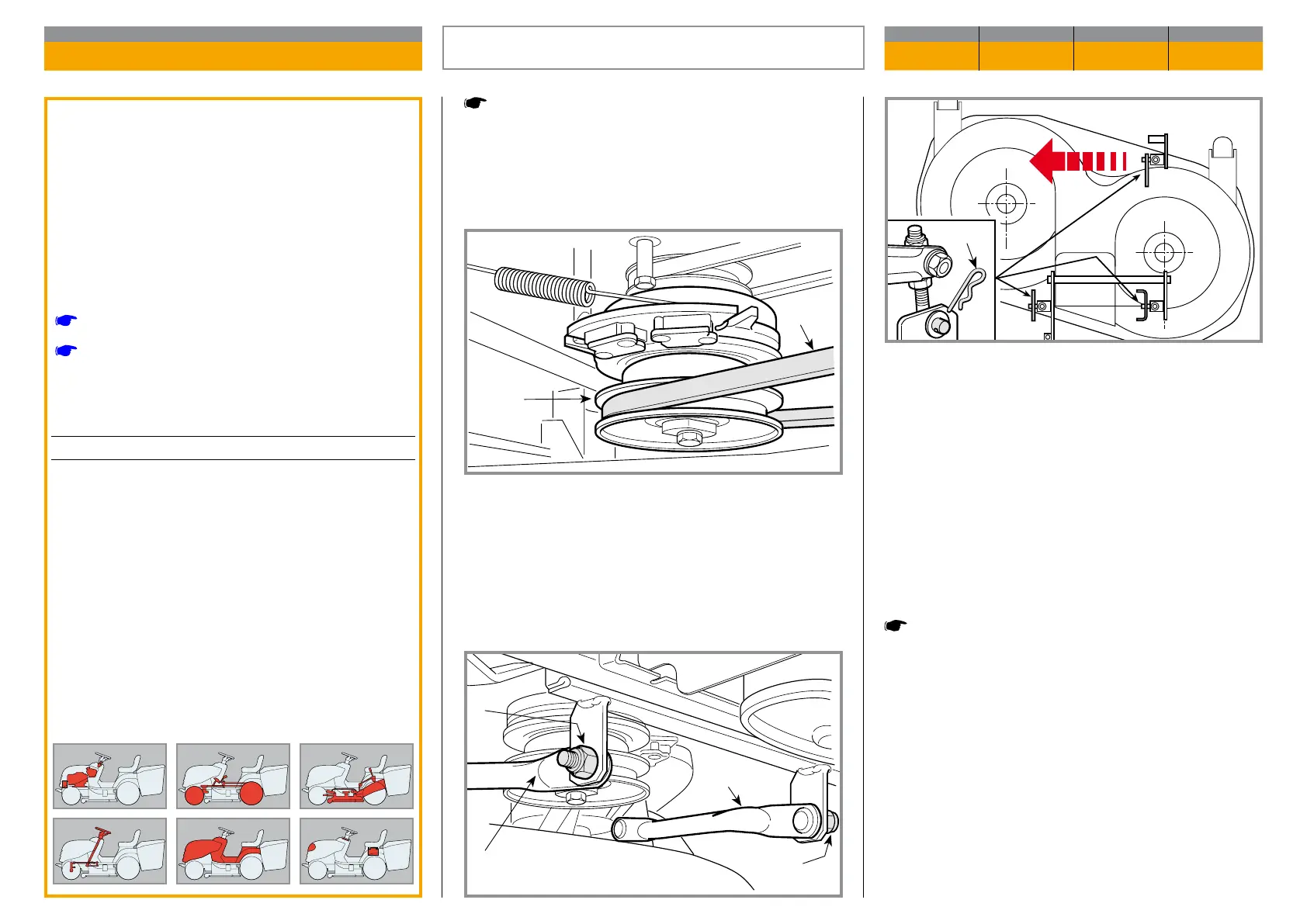

REMOVAL OF THE CUTTING DECK
CHAPTER REVISION FROM ... PAGE
5.7 0 2018 1 of 1
Remove the collector channel
Free the blade belt (1) from the clutch pulley (2) and
set the cutting height adjustment lever to position «1».
Unscrew the two nuts (3) fastening the two arms (4)
to the frame.
Release the three exible split pins (5) of the lifting
tie-rods.
Having checked that there is nothing in the way, the
deck can be removed, turning it anti-clockwise so that
all the pins come out of their positions.
To assemble, perform the operations described a bo-
ve in reverse order making sure to tighten the nuts (3)
so as not to hinder correct cutting deck o scil lation.
When assembly is completed …
Check the alignment of the cutting deck
1
2
3
4
3
4
5
