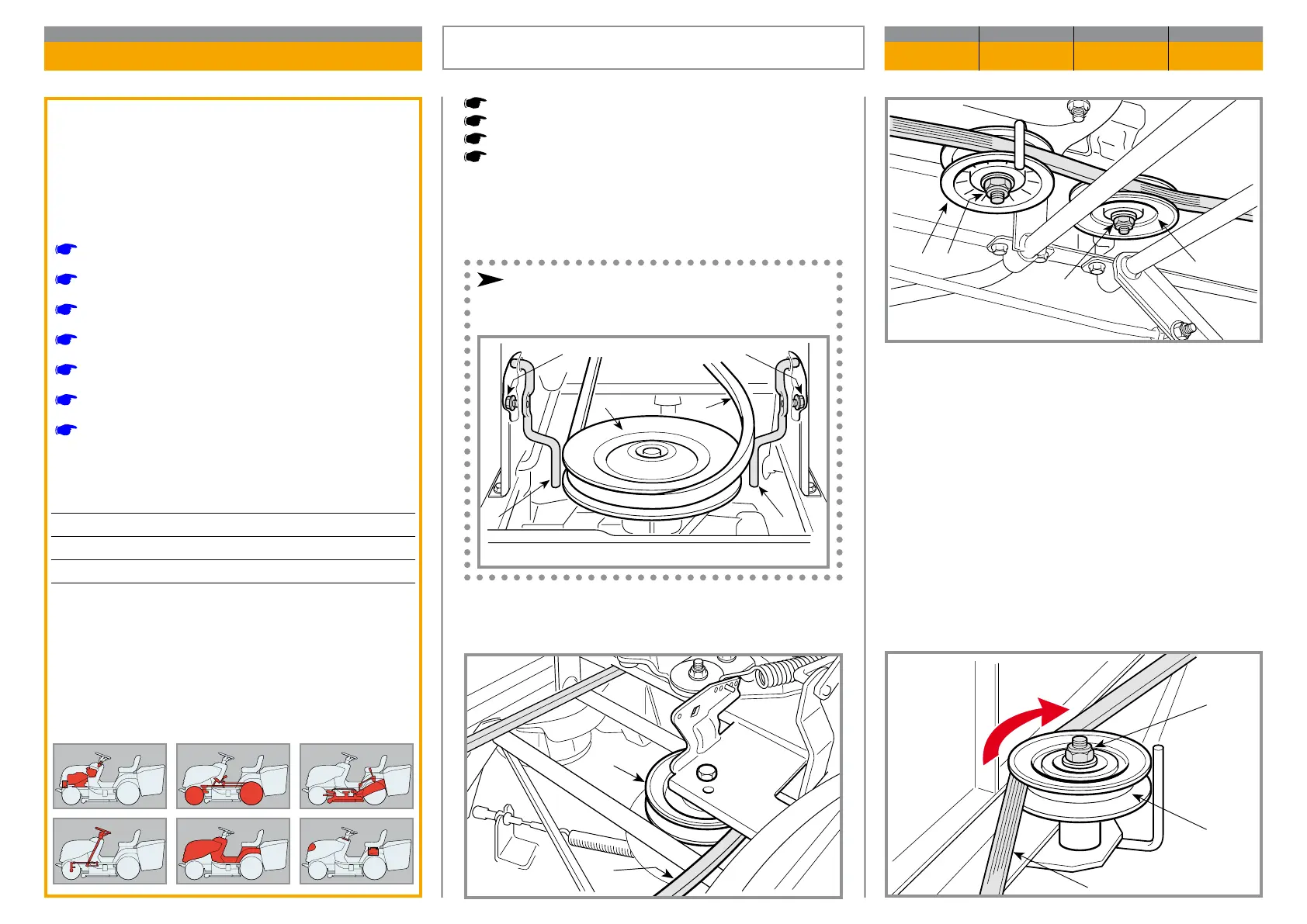

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
Loosen the nut (7) for the drive pulley (8) to the point
where the passage of the belt is allowed (5).
Unscrew the nut (9) and take o the pulley of the guide
pulley (10).
Unscrew the nuts (11), remove the two small wheels
(12) and remove the belt (5).
Remove the rear of the conveyor.
Removing the cutting deck.
Remove the wire of the deck lifting lever.
Remove the engine pulley and the clutch
Engage the parking brake to slacken o the belt and
obtain greater operating convenience.
mechanical drive models:
Loosen the two side screws (1) and (2) and move
the two belt guides (3) and (4).
Hold the two parts of the belt (5) to release it from the
pulley (6).
General informations
Related topics
[
4.3] Drive belt adjustment
[
5.3] Removing the ejection conveyor
[
5.5] Removal of the engine
[
5.7] Removing the cutting deck
[
5.8] Removing the ejection conveyor
[
6.9] Replacement of the lifting cable
[
8.2] Belts assembly
Tightening torques
7 Drive pulley fastening nut ............... 25 ÷ 30 Nm
9 Nut for pulley of the guide pulley .... 25 ÷ 30 Nm
11 Nuts for small wheels ................... 25 ÷ 30 Nm
REPLACEMENT OF THE DRIVE BELT
CHAPTER REVISION FROM ... PAGE
6.4 1 2018 1 of 1
7
8
10 9
12
5
11
1 2
3 4
56
