WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
models with mechanical transmission:

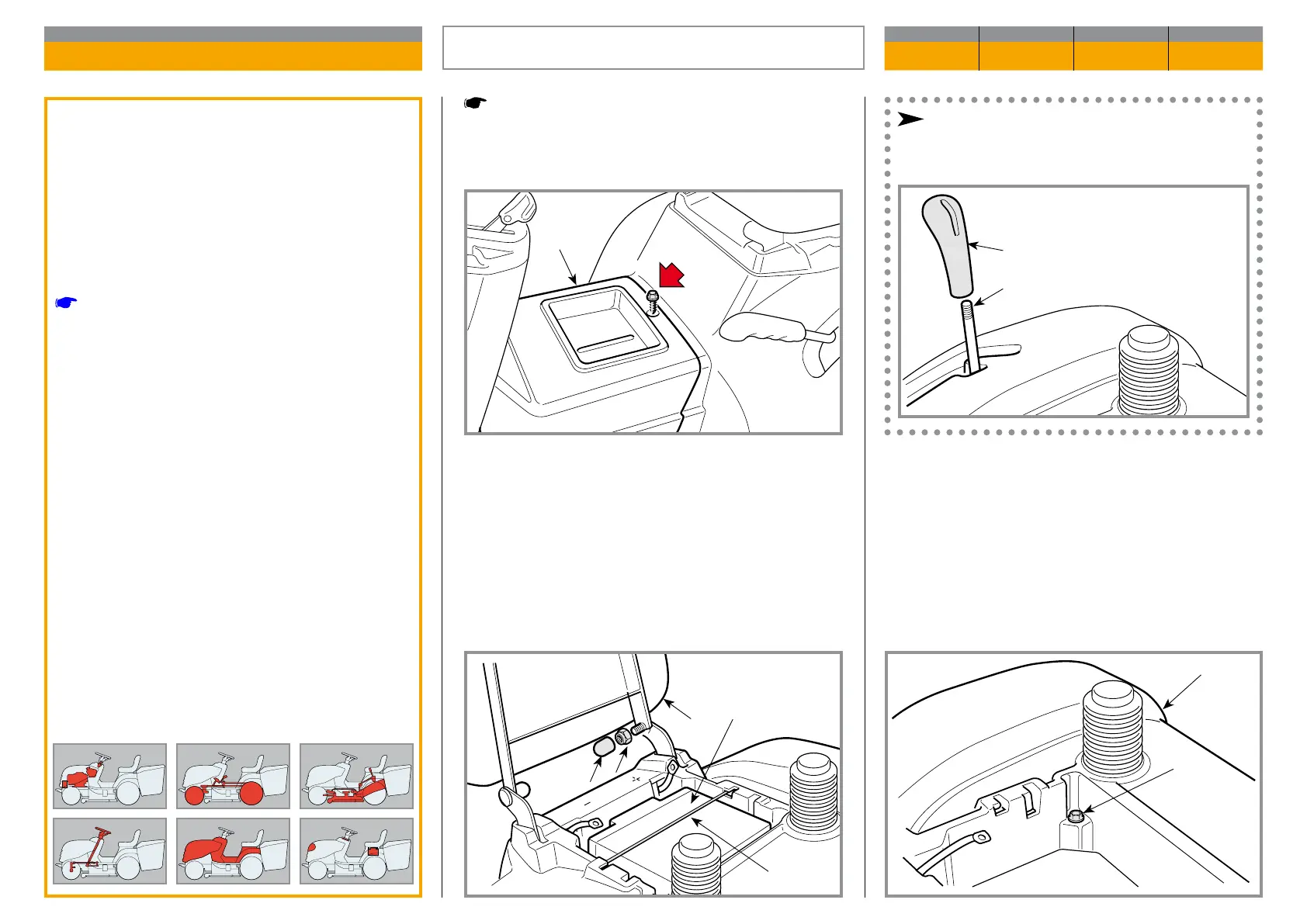

Remove the gear lever knob (7) from the lever (8).
.
The cover (9) is held by:
– 2 screws (10) inside the battery compartment,
Remove the left and right side guards (if provided).
Remove the inspection hatch (1).
Bring the cutting deck to the highest position «7».
Remove the covering caps (2) and unscrew the two
nuts (3) to remove the seat and the relative support
plate (4).
Take o the spring (5) which holds the battery (6), tak-
ing care to prevent it accidentally short-circuiting. Dis-
connect and remove the battery (6).
General informations
Complete removal of the wheels cover is re
quired for its replacement and to access seat mi
cro switch, placed below the two springs support
crosspiece.
Related topics
[
5.2] Removal of the side guards (if provided)
REMOVAL OF THE WHEEL COVER
CHAPTER REVISION FROM ... PAGE
5.3 0 2018 1 of 2
