WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
The support (4) contains a pad (5a) separated from
the control pistons (6) by a plate (7).
The other pad (5b) can be reached by taking o the
disc (8).
If there is oil on the pads, clean with solvent and go
over them with ne-grade abrasive paper.
Both pads should be replaced if the depth of ei
ther of them is less than 5 mm.
Renew the disc if it is damaged, distorted or less
than 4 mm thick.
mechanical drive models only
Remove the left-hand rear wheel.
Disconnect the control rod (1) from the lever (2) and
un do the two screws (3) which hold on the support (4).
NOTE During all these operations it is better to not
un screw or loosen the central screw (9) to avoid alter
ing the calibration of the cam driving the pistons. If it
has been moved, the lever’s free movement will have
to be checked.
CHAPTER REVISION FROM ... PAGE
6.10 0 2018 1 of 2

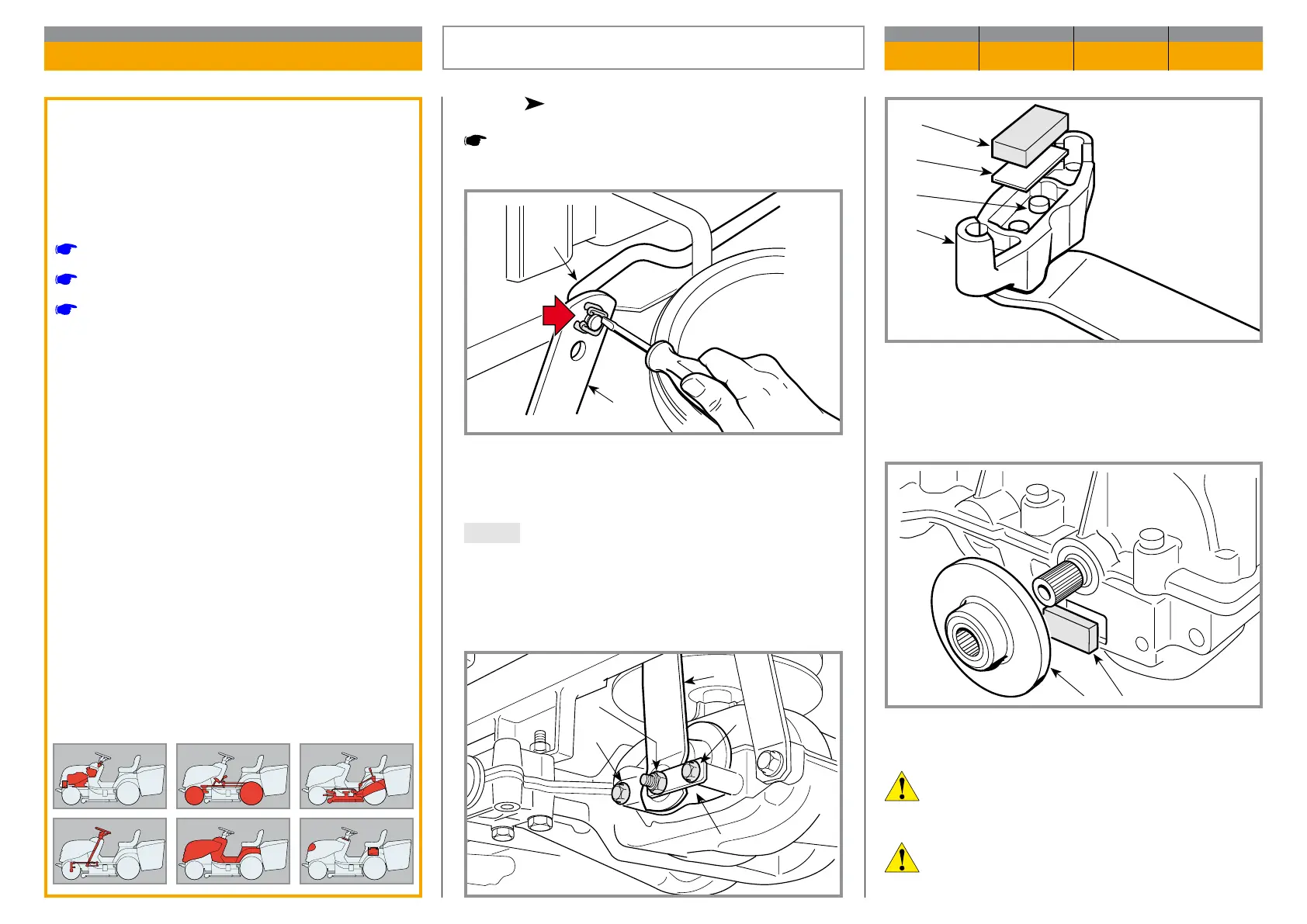

REPLACEMENT OF THE BRAKE PADS
AND DISC
General informations:
Related topics
[
2.3] Lifting of the machine
[
4.2] Brake adjustment
[
6.1] Removal of the wheels
1
2
3
3
4
9
2
4
6
7
5a
5b8
