WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
If higher amounts are found, check that the blades are
not distorted. If this is not the case, check the sup-
ports or the shafts for the blades [see 6.9], re placing if
necessary, and check the condition of the point where
the anges rest on the cutting deck.
IMPORTANT Always replace damaged blades
and do not at tempt to repair or straighten them. Al
ways use ma nufacturer’s genuine spare parts!
Put the machine into a vertical position
or:
Remove the cutting deck.
WARNING! Always wear strong gloves
when handling the bla des.
WARNING! The blades are connected to
each other, the rotation of each blade engages
the rotation of the other.
With the blades disengaged, rmly hold each blade
and bring the cutting edges together in the various
positions possible (A-B; A-B1; A1-B1; A1-B); at each
position they should be aligned to within 2 mm.

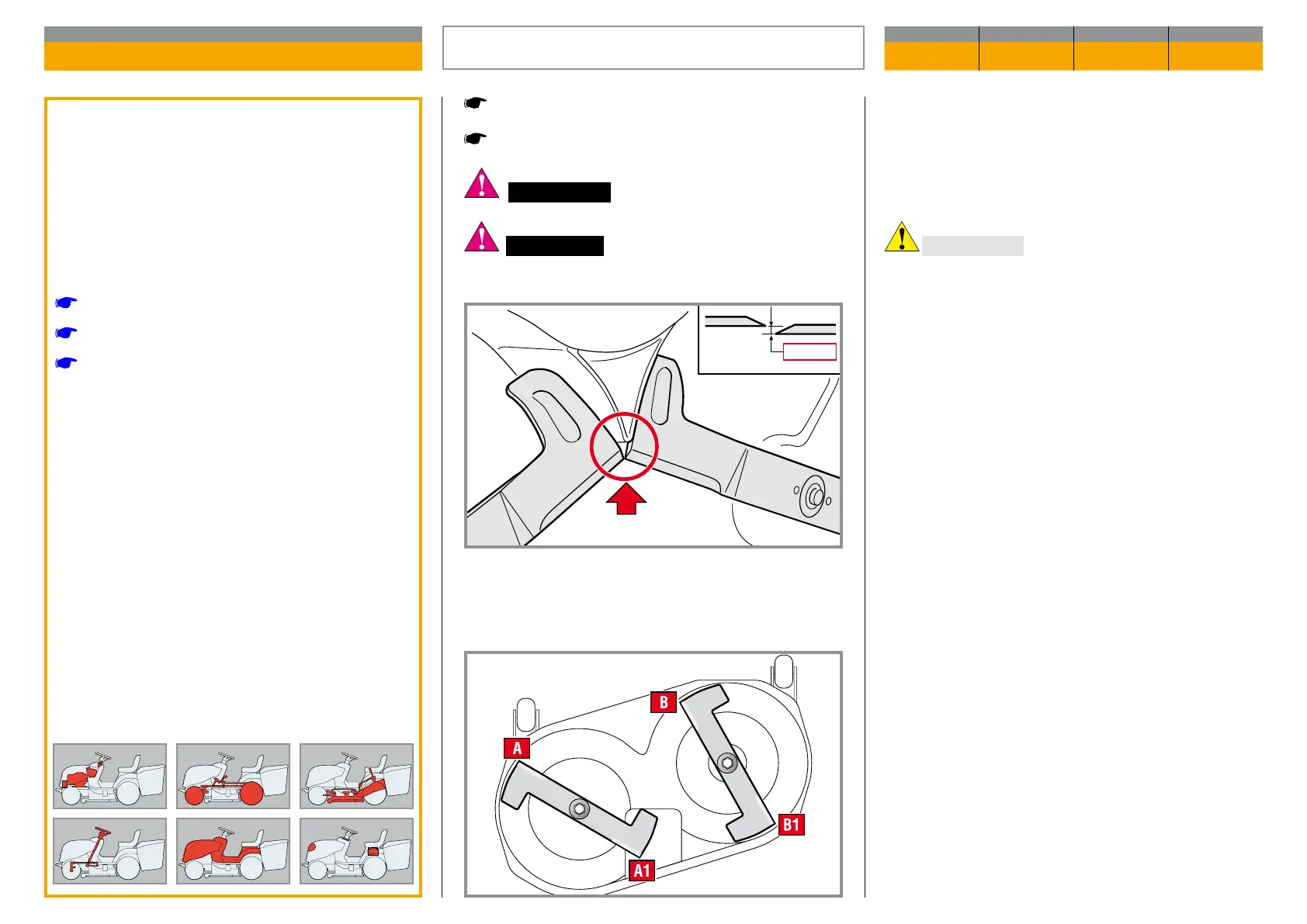

CHECKING BLADES ALIGNMENT
CHAPTER REVISION FROM ... PAGE
4.8 0 2018 1 of 1
General informations
Excessive vibration when cutting and an uneven
cut can be due to misalignment of the blades
o wing to deformation of the anges or the shafts
as a result of accidental knocks.
Related topics
[
2.3] Vertical positioning
[
5.7] Removal of the cutting deck
[
6.7] Replacement of the supports and shafts of
the blades
< 2 mm
