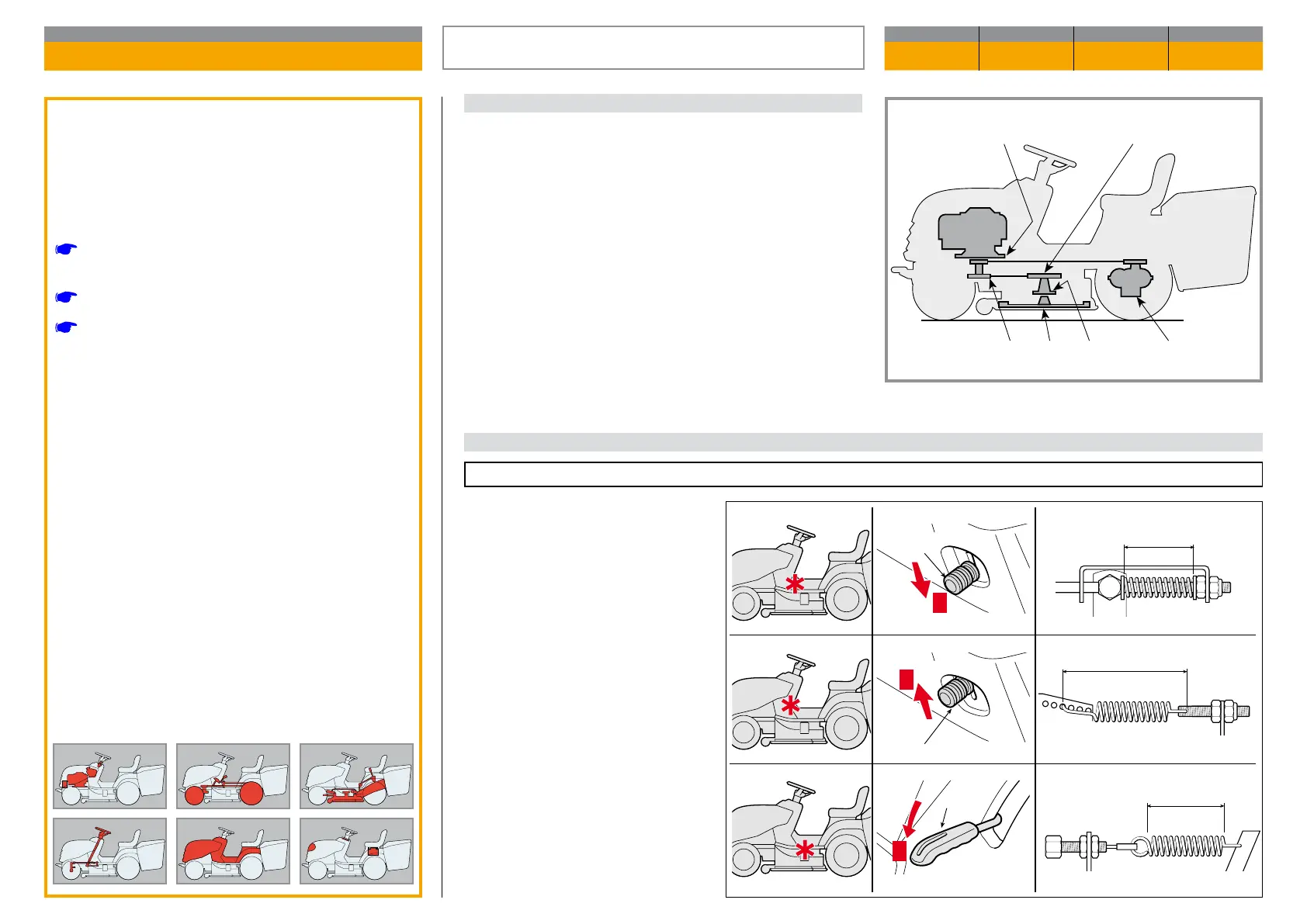

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
A) Tightening torques
Below are the specied tightening torques for the x ing
bolts on the main parts.
1 Screws for engine fastening ................. 35 ÷ 40 Nm
2 Screw for engine pulley ........................ 45 ÷ 50 Nm
3 Screws for rear axle fastening .............. 25 ÷ 30 Nm
4 Blade pulley screws ............................. 25 ÷ 30 Nm
5 Flanged support xing nuts .................. 25 ÷ 30 Nm
6 Screw for blade .................................... 45 ÷ 50 Nm
Every section in this manual gives values for all the com-
ponents involved in each operation.
B) Adjustments
TIGHTENING TORQUES AND ADJUSTMENTS
SUMMARY
CHAPTER REVISION FROM ... PAGE
8.1 1 2018 1 of 1
General informations
Related topics
[
4.1] Adjusting the engagement and checking
the blade brake
[
4.2] Brake adjustment
[
4.3] Drive belt adjustment
a) Brake adjustment
b) Drive belt adjustment
c) Adjustment the engagement
and checking the blade
brake
Operation Position Position of controls Adjustment
1 4
6 52 3
1
A
B
