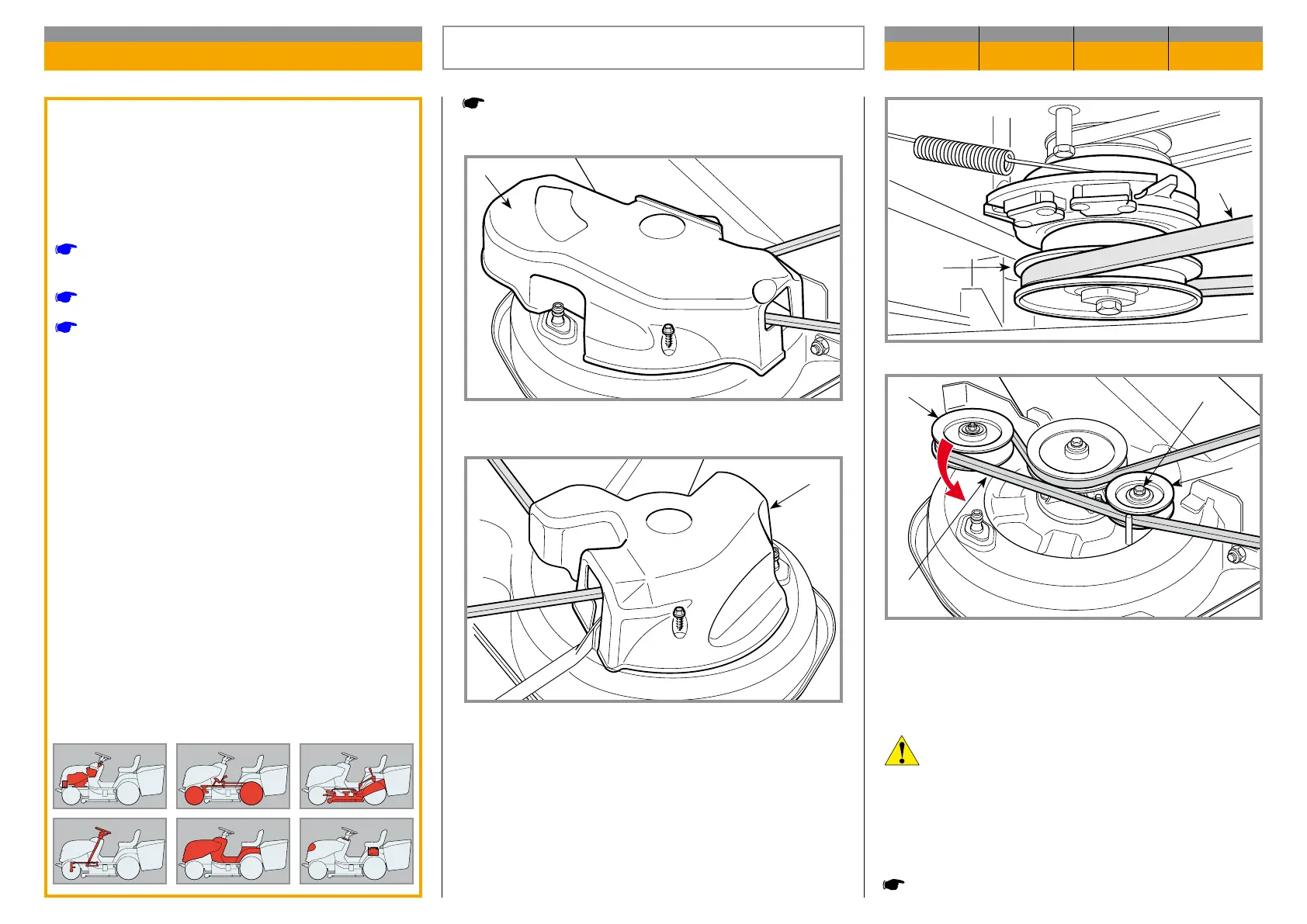

Stiga MP 84/98 - Replacement of the Blades Control Belt

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
When reassembling the right (1) and left (2) guards,
keep the belt (3) taut so that it is well-inserted in the
pulley grooves and do not interfere with the belt guides
inside the guards.
Always reassemble the side safety guards.
Once assembly is completed ...
Adjust the blade engagement.
Remove the left and right side guards (if provided).
Remove the right (1) and left (2) guards.
Free the blade belt (3) from the clutch pulley (4).
Loosen the screw (5) and remove the drive pulley (6).
At this point the tension regulator guide pulley (7) can
be distanced manually and the belt (3) un threa ded
and replaced.
General informations

Related topics
[
4.1] Adjusting the engagement and checking
the blade brake
[
5.2] Removal of the side guards (if provided)
[
8.2] Belts assembly
REPLACEMENT OF THE BLADES
CONTROL BELT
CHAPTER REVISION FROM ... PAGE
6.6 0 2018 1 of 1
