WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy

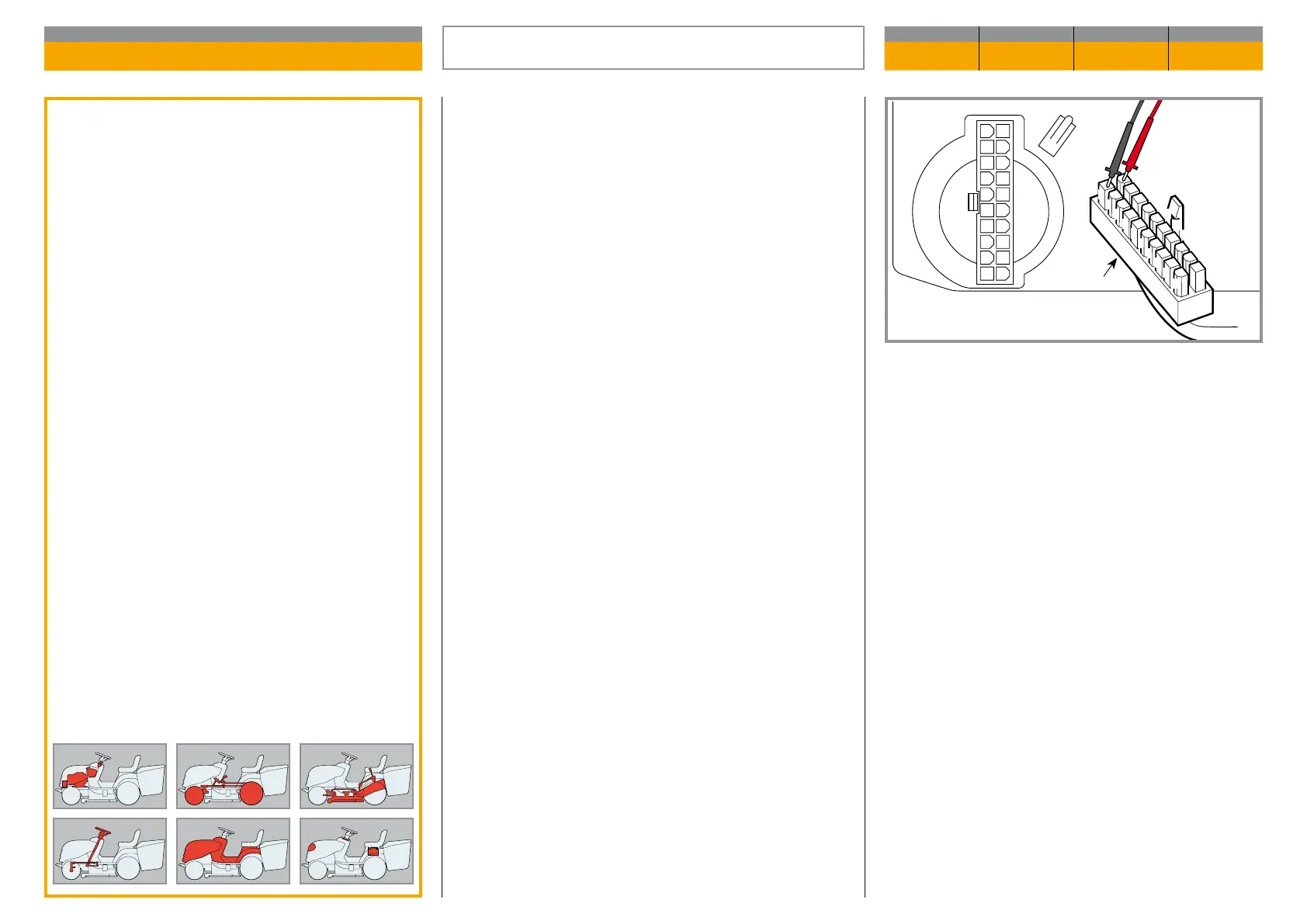

This check is made with the tester operating as a
Voltmeter (Volts DC 0 ÷ 20), with the black ferrule on
terminal 1 and the red one on terminal 11of the con-
nector (1) of the wiring.
– The key in the «ON» position
The reading shows the battery voltage, which should
never go below 11 Volts.
General informations
Related topics
---
TERMINAL BOARD SUPPLY CHECK
CHAPTER REVISION FROM ... PAGE
7.4 0 2018 1 of 1
111
212
313
414
515
616
717
818
919
1020
