WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
WARNING! This check must be made with
the engine o.

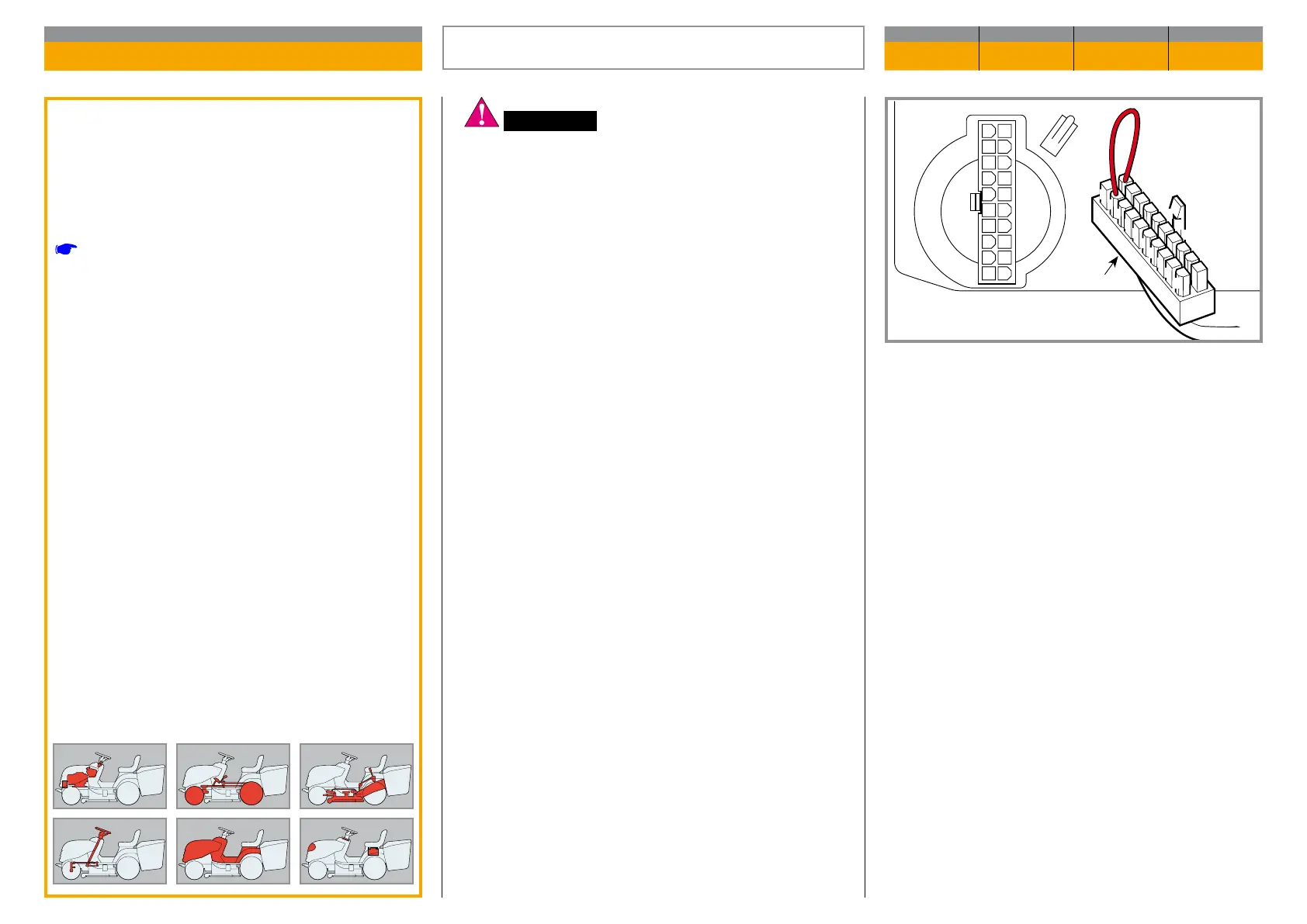

Disconnect connector CN1 and bridge terminals 2
and 11 of cabling connector CN1 (1).
With the key set to «ON», when the switch is ope-
rated a click must be heard from the moving part of
the clutch, due to excitation of the electric wiring.
If this is not so, check the operation of the cabling and
control switch.
The clutch must be replaced if engagement does not
take place after these checks.
General informations
Related topics
[
7.3] Safety microswitches operation check
ELECTROMAGNETIC CLUTCH OPERATION
CHECK
CHAPTER REVISION FROM ... PAGE
7.5 0 2018 1 of 1
