WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
WARNING! Remove the cap of the spark
ing plug (or plugs), since the safety systems that
nor mally prevent accidental starting of the en
gine are cut out when the checking procedure is
carried out.
To do this requires:
– operator seated,
– blades disengaged,
– the key in the «ON» position.

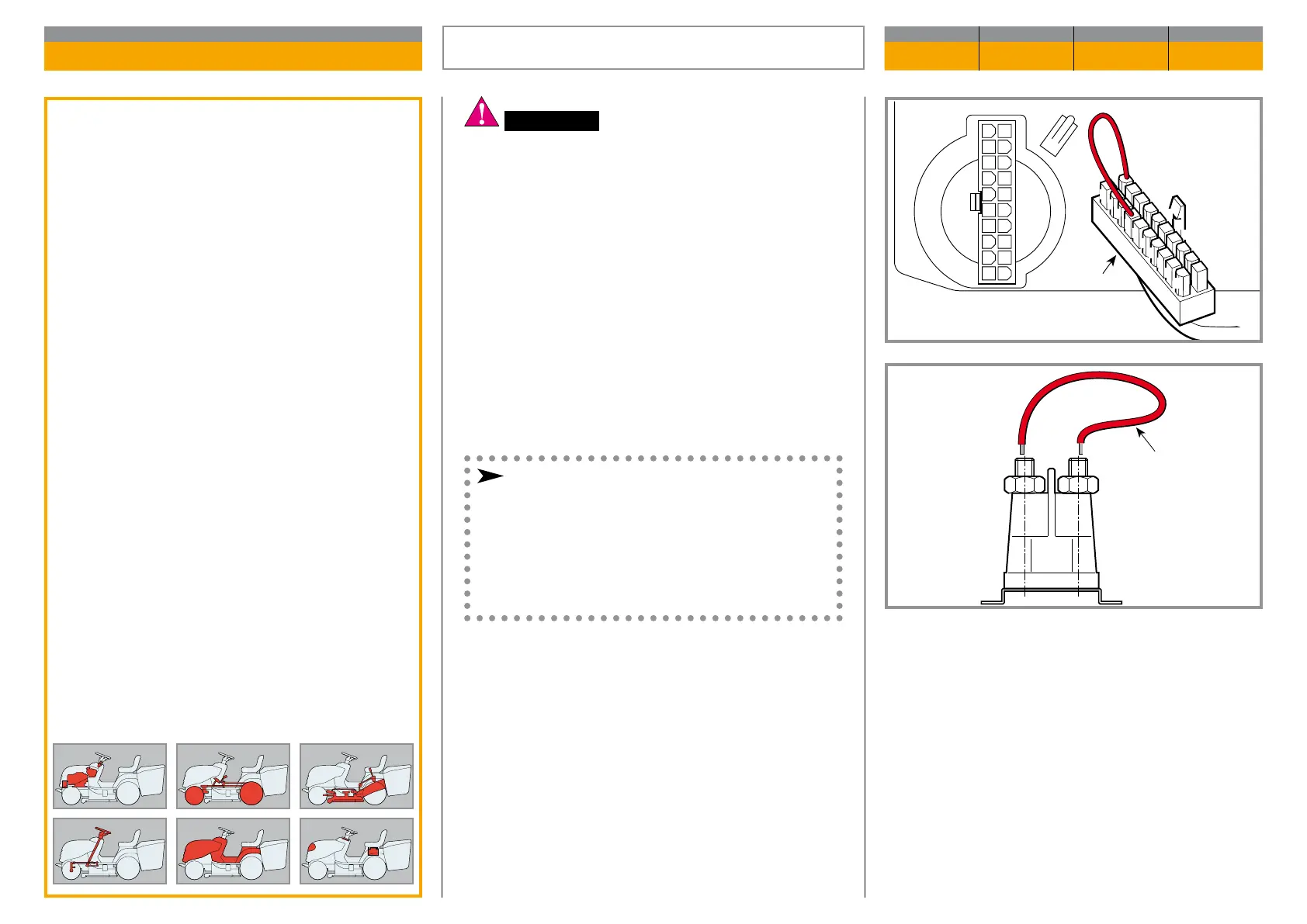

Disconnect the connector (1).
In making a bridge between the terminals 11 and 4 of
the wiring connector (1), the click of the relay bob bin
should be heard and the starter motor should come
into action.
except Honda engines:
If the bobbin clicks but the starter does not start,
make a bridge (2) with a large section cable
(5 mm
2
) between the power contacts of the relay.
If the starter comes into operation, look for the fault
within the relay or replace it. Otherwise, check the
starter together with its wiring.
General informations
---
Related topics
---
STARTER RELAY OPERATION CHECK
CHAPTER REVISION FROM ... PAGE
7.6 1 2018 1 of 1
