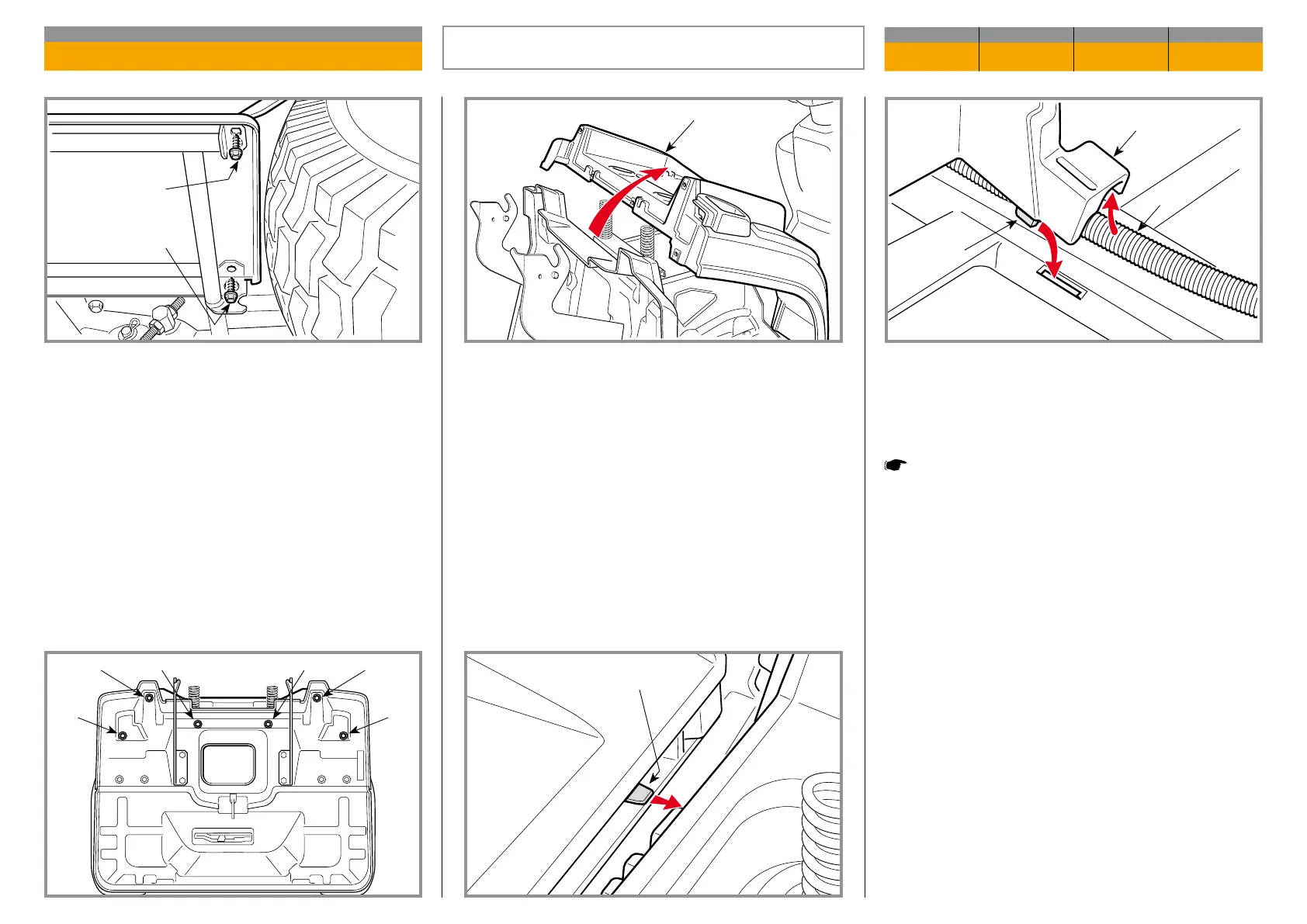

WORKSHOP MANUAL
MP 84/98 - MP 84/98 Hy
Correctly reposition the wiring sheath (15) in its hou -
sing on the right side of the cover.
Reassemble the right and left side guards (if pro-
vided).
The removal of the cover (9) is facilitated by pushing
it forward and simultaneously by lifting it from the rear.
On assembly, follow the procedures described above
in reverse order.
Be careful to correctly reassemble the tting (13) and
properly insert the two side tongues (14) of the cover
in the seats from the foot boards.
– 4 lower screws (11) (2 for each side) located under
the external edge of the foot boards,
– 6 rear screws (12).
REMOVAL OF THE WHEEL COVER
CHAPTER REVISION FROM ... PAGE
5.3 0 2018 2 of 2
12
12 12
12
1212
13
9
11
11
14
9
15
