WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
Unscrew the screw, take o the accelerator knob (6),
then unscrew the accelerator xing screws (6a).
Remove the starter control (7), where appropriate.
Unscrew the parking brake knob (8).
Disconnect all electrical connectors from their re spec-
tive components:
– ignition key,
– blade engagement clutch switch,
– battery charge connector,
– fuses,
– electronic circui board.

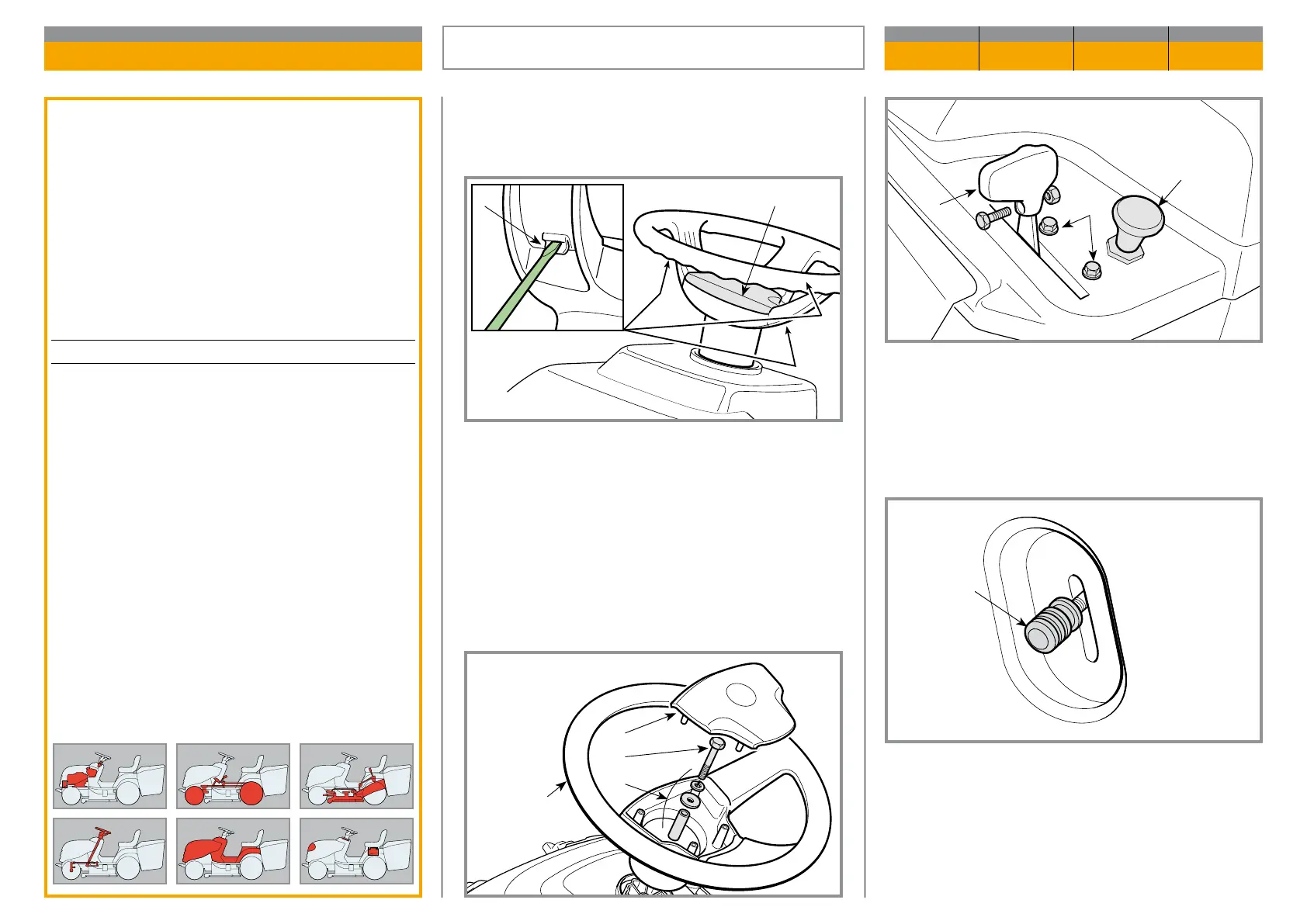

REMOVAL OF THE DASHBOARD
Using a screwdriver, unhook the two central hooks
and two right and left hooks (1) that secure the stee-
ring wheel cover (2).
Unscrew the central screw (3) and remove the stee-
ring wheel (4) making sure to recover the spacer and
washer (5).
General informations:
Dashboard removal is only required for its re pla
ce ment.
Related topics:
---
Tightening torques
11-12-13-14
Dashboard fastening screws
12÷15 Nm
CHAPTER REVISION FROM ... PAGE
5.4 1 2018 1 of 2
