Reattach all the connections, and then …
Ret the rear wheels.
Reassemble the rear of the conveyor.
Check the brake.
If the the drive control rod has been replaced or com-
pletely pulled down:
Adjust the travel and the position of “neutral” for
the pedal
MP 84/98 - MP 84/98 Hy

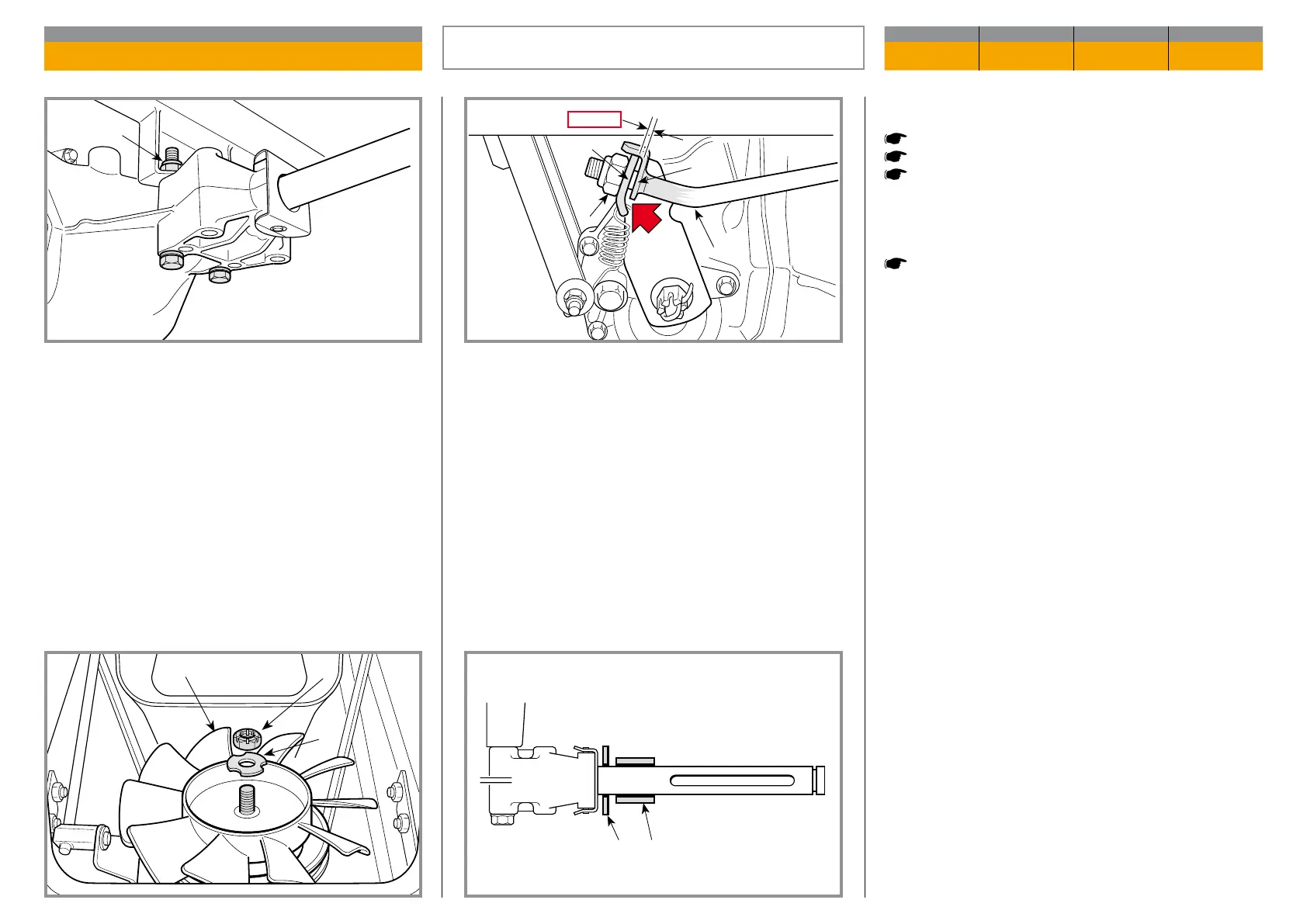

Carefully unscrew the four frame fastener nuts (11),
adequately supporting the unit so it does not fall.
To reassemble, reverse the order of the previous o p-
e rations.
If the fan (2a) was removed, ensure the shaped wash-
er (2c) is replaced below the nut (2).
REMOVAL OF THE REAR AXLE
Hydro-Gear T2-ADBF-2X3C-1RX1
CHAPTER REVISION FROM ... PAGE
5.6a 0 2018 2 of 2
When you come to connect the brake rod (6), it is
ne cessary to screw the nut (5) on as far as possible,
along the entire rod thread.
After completing the screwing phase, engage the
parking brake and check that there is a 1.5 mm gap
between the rod plate (6a) and the lever (7).
Check that the spacers (12 - 13) are correctly tted to
the shafts, in the sequence given.
11
2
2a
2c
5
6
6a
7
1,5 mm
12 13
