104 MS 201, MS 201 C, MS 201 T, MS 201 TC

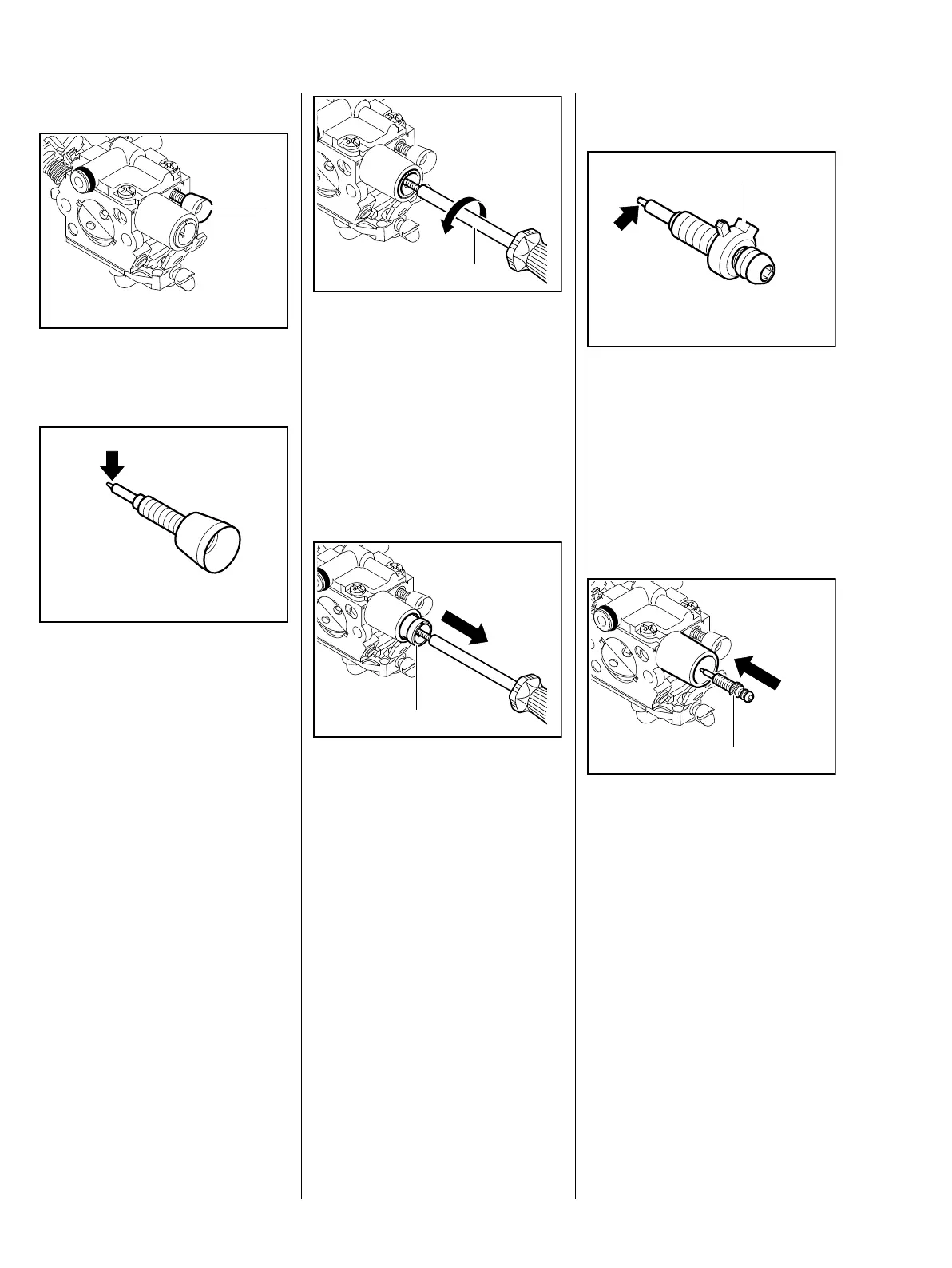

Low speed screw
: Take out the low speed screw
L (1).
: Inspect the tip (arrow) for
damage or wear and replace the
low speed screw ( L) if
necessary.
– Screw down the low speed screw
(L) as far as stop.
High speed screw
The high speed screw H has a
limiter cap, which has to be
removed before the screw is
removed.
7013RA343 TG
1
5902RA406 TG
: Screw the puller (1)
5910 890 4502 about 5 turns
counterclockwise into the limiter
cap
– left-hand thread.
: Do not turn the puller (1) any
further – the high speed
screw (H) may otherwise be
damaged.
: Pull out the limiter cap (1).
The polymer segment is left on the
high speed screw (H) after the
limiter cap has been pulled off. It is
necessary to unscrew the high
speed screw (H) to remove the old
polymer segment.
– Take out the high speed screw
( H).
7013RA344 TG
1
7013RA345 TG
1
Always install a new limiter cap.
: Inspect the tip (arrow) for
damage or wear and replace the
screw (H) if necessary.
: If the high speed screw (H) is in
order, remove the old polymer
segment (1)
– take care not to damage the
high speed screw (H).
: Screw down the high speed
screw H (1) as far as stop.
1
5902RA409 TG7013RA346 TG
1
