113MS 201, MS 201 C, MS 201 T, MS 201 TC

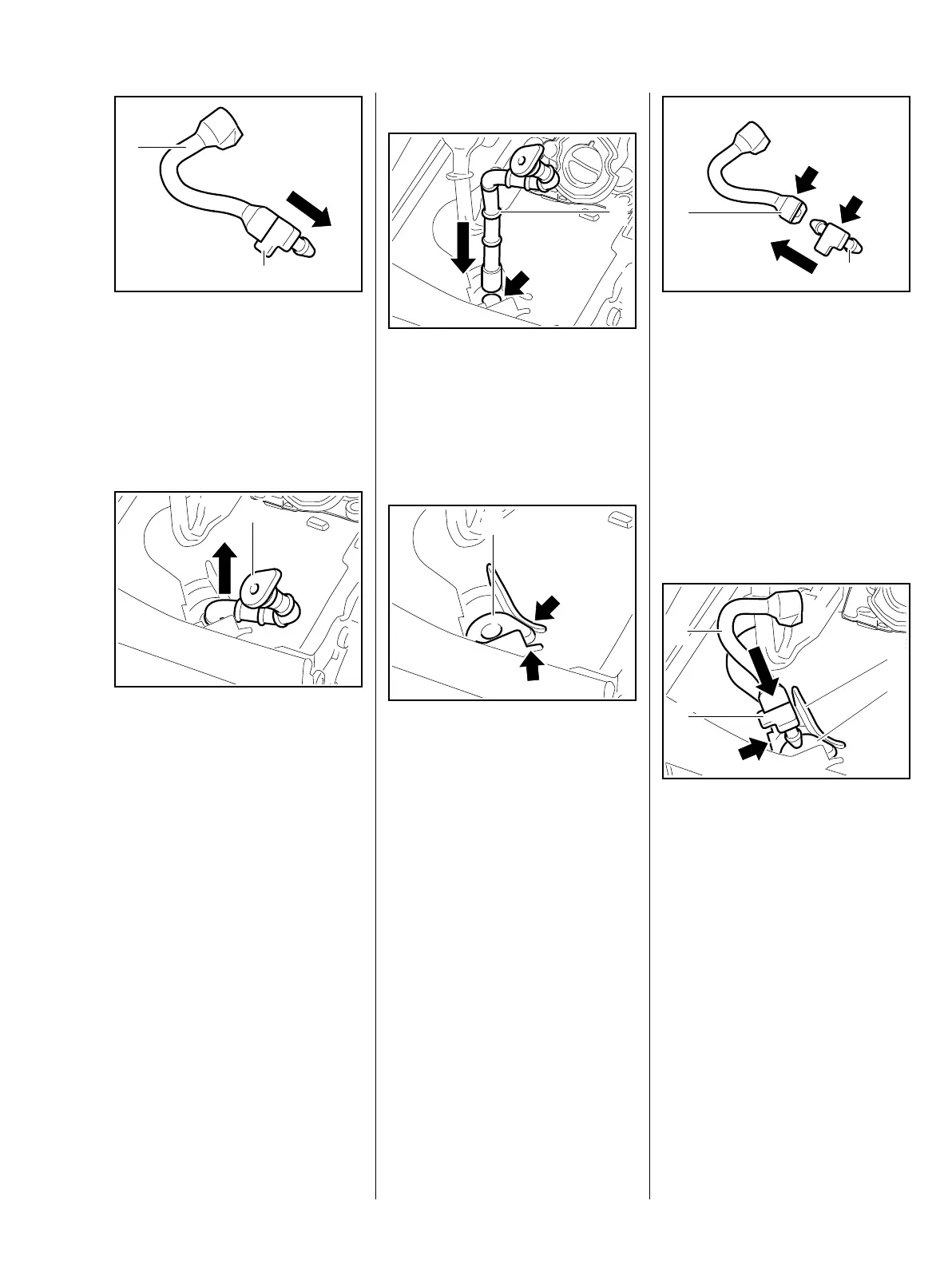

: Pull the elbow connector (1) off
the fuel suction hose (2).
– Check the elbow connector and
replace if necessary.
– Install a new fuel suction hose.
: Pull the fuel suction hose (1) out
of the fuel tank.
– Check the fuel suction hose and
replace if necessary.
7013RA401 TG
2
1
7013RA402 TG
1
Installing
– Coat the fuel suction hose with
STIHL press fluid, b 14
: Push the fuel suction hose (1)
through the bore (arrow) in the
fuel tank.
: Position the fuel suction hose (1)
so that the flange fits between the
ribs (arrows), then push it into the
housing bore as far as stop.
7013RA403 TG
1
7013RA404 TG
1
– Coat inside of fuel suction hose
with STIHL press fluid, b 14
: Position fuel suction hose (1) and
elbow connector (2) so that the
flat face (arrow) is parallel to the
lug (arrow).
: Push the elbow connector (2)
into the fuel suction hose (2) as
far as stop – the lug must locate
flat against the elbow connector.
– Coat inside of fuel suction hose
with STIHL press fluid, b 14
: Position elbow connector (1) so
that the lug engages the seat
(arrow) and the fuel suction
hose (2) the guide.
: Push the elbow connector (1)
with fuel suction hose (2) into fuel
suction hose (3) as far as stop.
7013RA405 TG
1
2
7013RA406 TG
2
1
3
4
