55MS 201, MS 201 C, MS 201 T, MS 201 TC

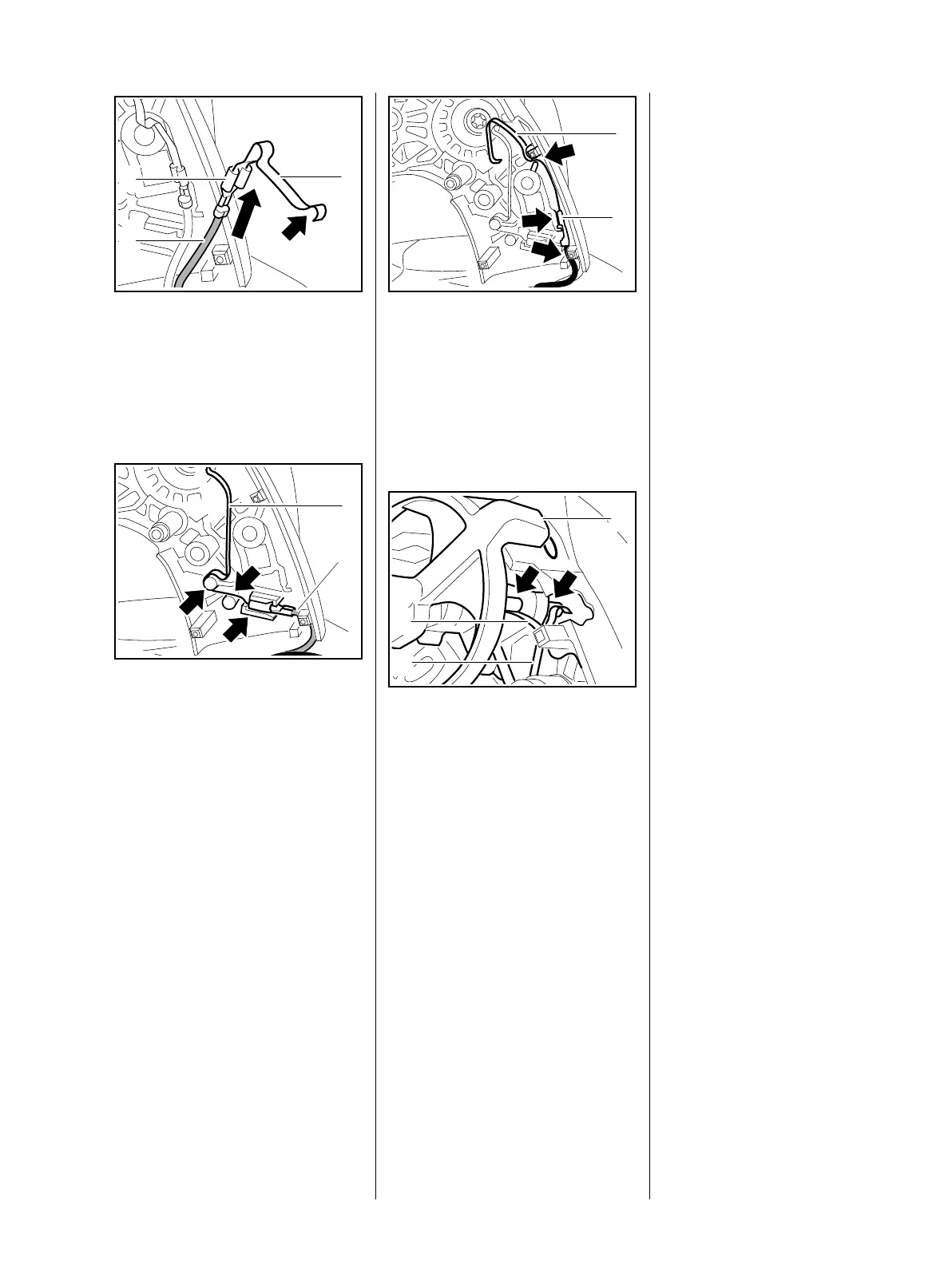

: Push the terminal (1) of ground
wire (2) onto the contact
spring (3) so that the crimped
side faces the spring loop (arrow)
– wide terminal on wide contact
spring.
: Push the contact spring (1) of
ground wire (2) into the guides
(arrows).
7013RA447 TG
1
2
3
7013RA310 TG
1
2
: Push the contact spring (1) of
short circuit wire (2) into the
guides (arrows).
– Install the AV spring, b 9.2.1
– Install the switch lever, b 10.1.2
: Check operation
– contact springs of short circuit
wire (1) and ground wire (2) must
touch the metal pin (arrow) on the
switch shaft (3) in position "0".
– Install the lockout lever and
throttle trigger, b 10.3
– Reassemble all other parts in the
reverse sequence.
7013RA311 TG
1
2
7013RA448 TG
2
1
3
