66 MS 201, MS 201 C, MS 201 T, MS 201 TC

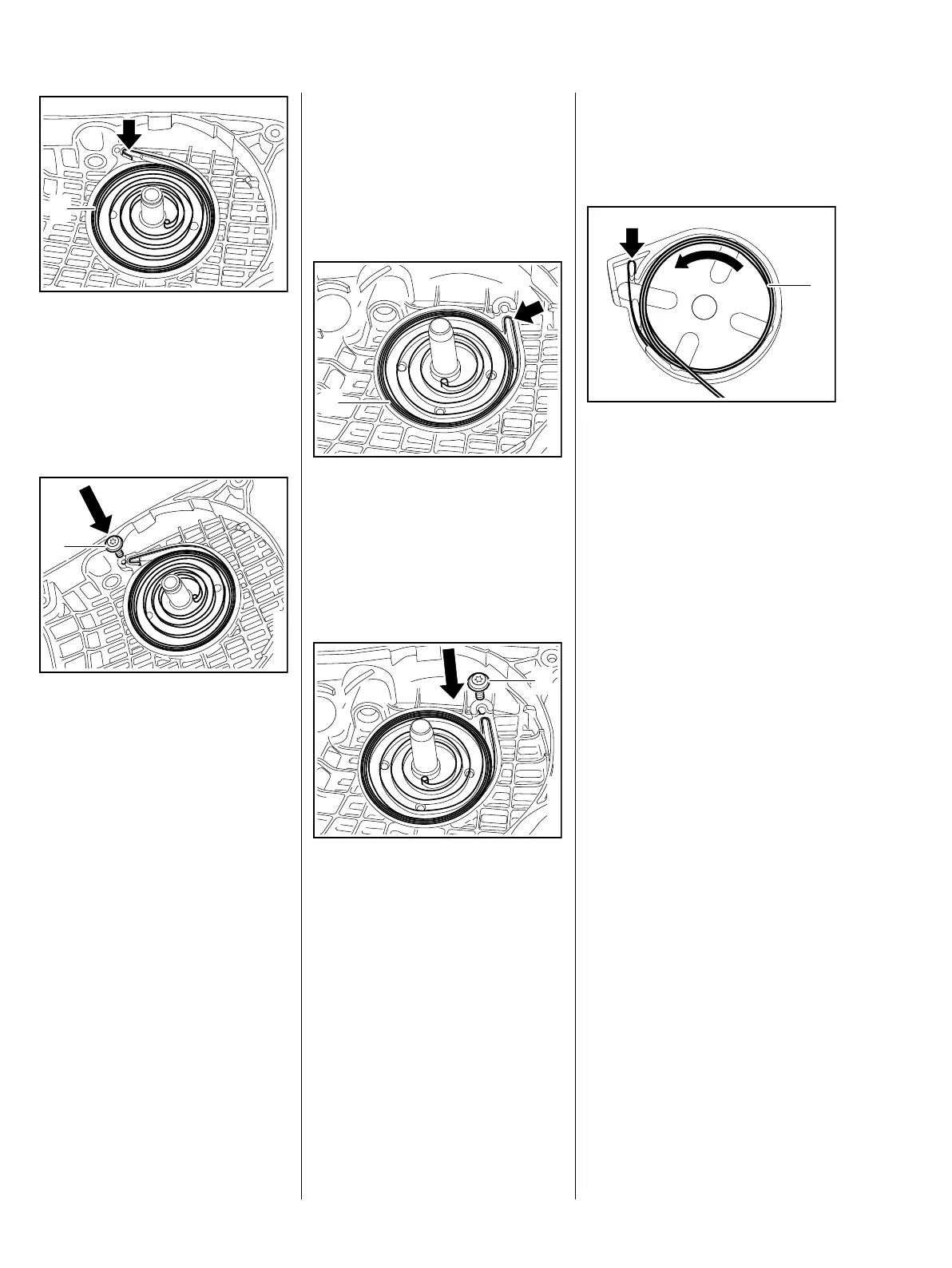

Make sure that the new rewind
spring (1) is properly seated and the
outer anchor loop is engaged on the
lug (arrow). If necessary, use
suitable tools to push the rewind
spring fully into its seat in the fan
housing.
: Insert and tighten down the
screw (1) firmly.
– Remove the rope rotor, b 8.4
– Install the pawl, b 8.3
– Tension the rewind spring, b 8.6
– Reassemble all other parts in the
reverse sequence.
7013RA178 TG
1
7013RA179 TG
1
Models with ErgoStart
Removal and installation
procedures for machines with
ErgoStart are the same, but the
anchor loop lug is in a different
position.
Make sure that the new rewind
spring (1) is properly seated and the
outer anchor loop is engaged on the
lug (arrow). If necessary, use
suitable tools to push the rewind
spring fully into its seat in the fan
housing.
: Insert and tighten down the
screw (1) firmly.
– Install the rope rotor, b 8.4.1
– Install the pawls, b 8.3
– Tension the rewind spring, b 8.6
– Reassemble all other parts in the
reverse sequence.
7013RA180 TG
1
7013RA181 TG
1
Installing unwound rewind spring
If the rewind spring has popped out,
refit it in the frame as follows:
: Fit the anchor loop in its seat
(arrow) in the frame.
: Fit the rewind spring (1)
counterclockwise in the frame,
holding the windings steady in
the process.
The procedure is otherwise the
same as that for installing a new
rewind spring.
0008RA181 TG
1
