Stihl Ms 201 User Manual

79MS 201, MS 201 C, MS 201 T, MS 201 TC

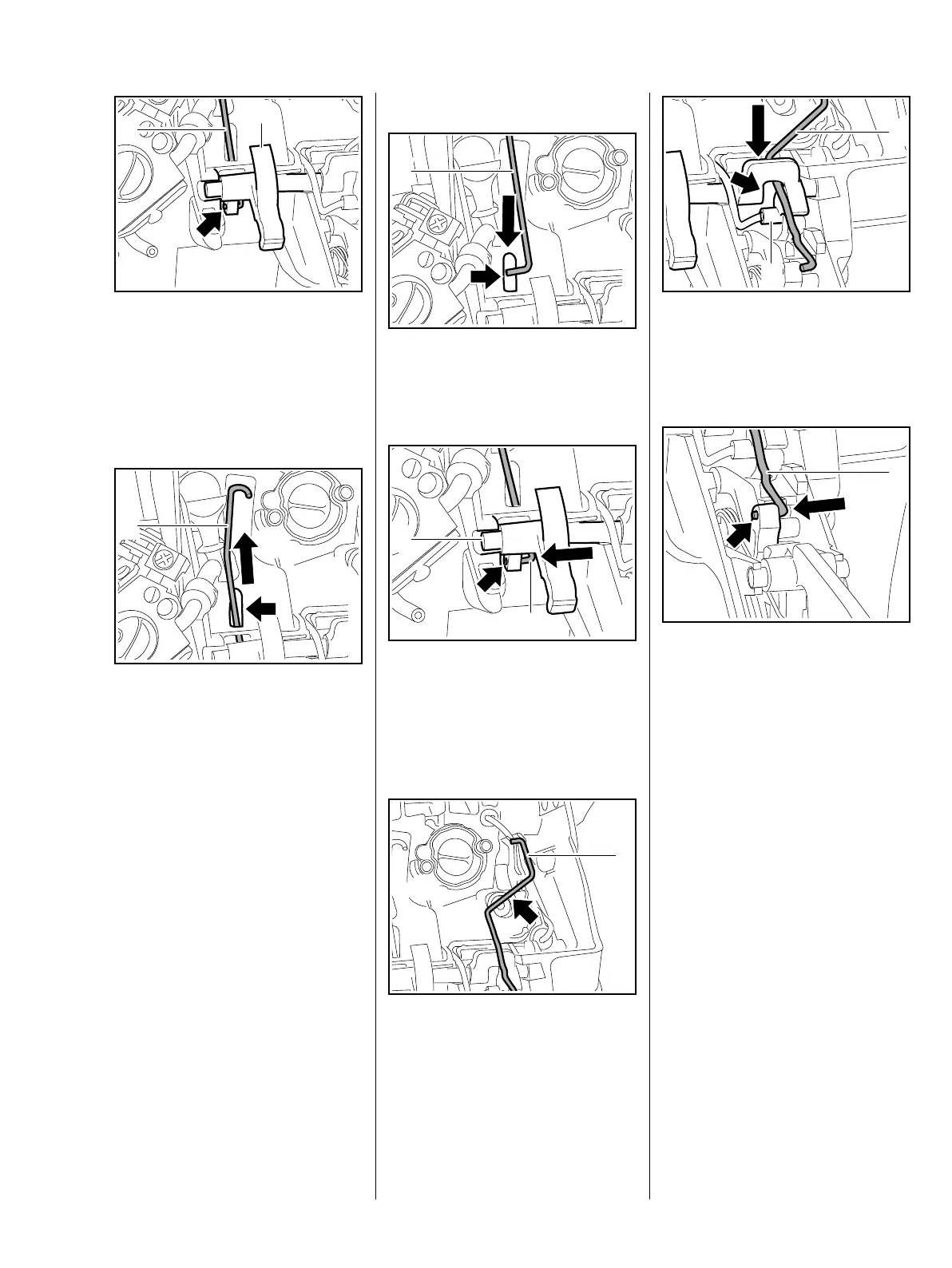

: Pry the switch shaft (1) out of its
mount.
– Do not remove the switch shaft.
: Pull the choke rod (2) out of the
hole (arrow).
: Pull the choke rod (1) out of the
opening (arrow).
– Check the choke and throttle rods
and replace if necessary –
always replace a twisted throttle
rod.
2
7013RA235 TG
1
1
7013RA236 TG
Installing
: Push the right angled end of the
choke rod (1) through the
opening (arrow).
: Push the choke rod (1) into the
hole (arrow).
: Push the switch shaft (2) into its
mount until it snaps into position.
: Hold the choke rod (1) so that its
angled portion (arrow) is in the
carburetor box.
1
7013RA237 TG
2
7013RA238 TG
1
7013RA239 TG
1
: Pass the throttle rod (1) through
the arch (arrow) in the switch
shaft – throttle rod must be above
the connector sleeve (2).
: Push throttle rod (1) into the hole
(arrow) in the throttle trigger.
– Install the carburetor, b 12.4
– Check operation
– Depress trigger to full throttle
position. The throttle shutter must
be completely open. Set the
switch shaft to cold start. The
choke shutter must be closed.
– Reassemble all other parts in the
reverse sequence.
7013RA240 TG
1
2
7013RA241 TG
1
