81MS 201, MS 201 C, MS 201 T, MS 201 TC

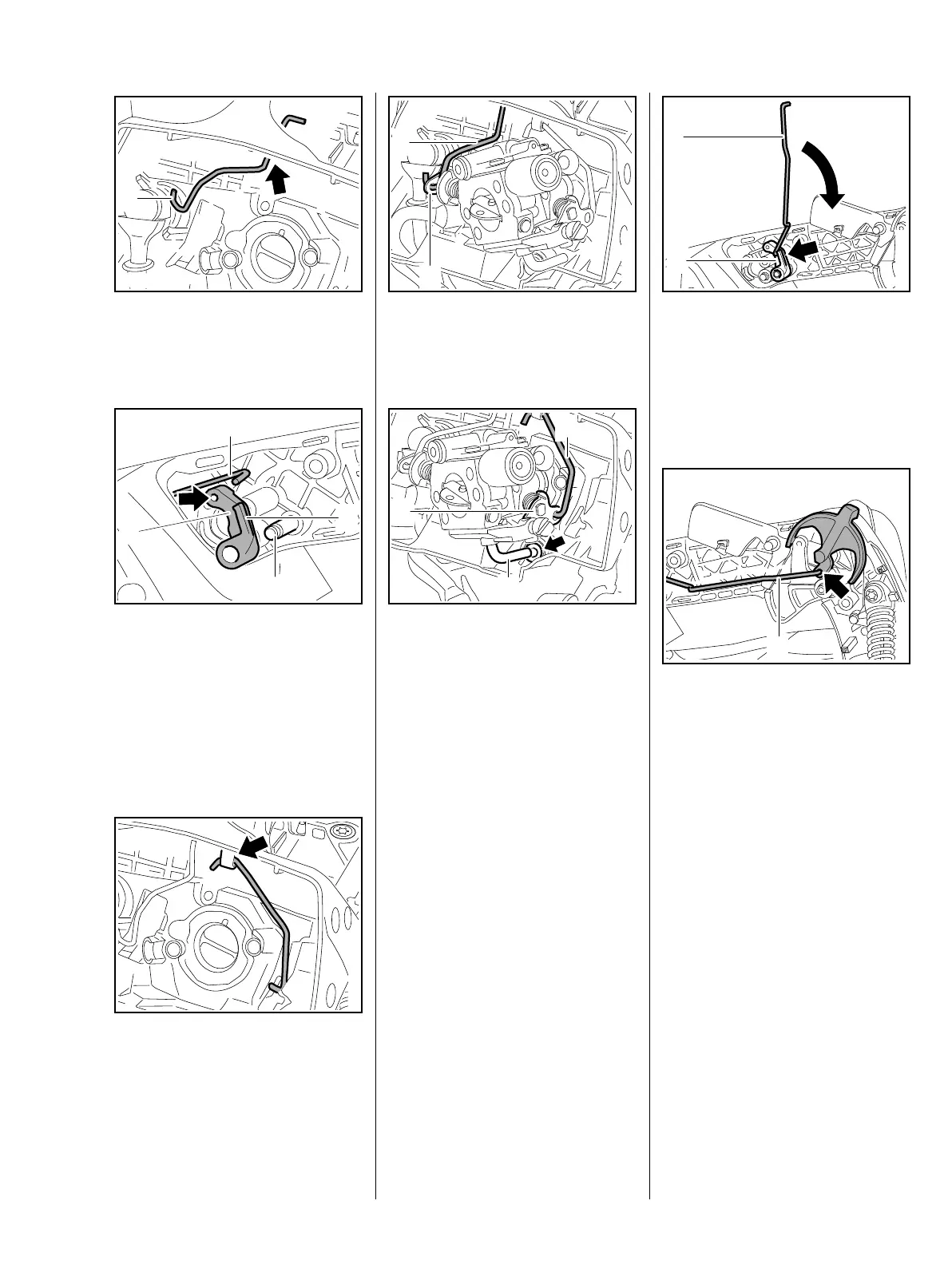

: Push the right angled end of the
choke rod (1) through the
opening (arrow) and hold it there.
: Position the double lever (1) so
that the lug (2) points towards the
switch shaft.
: Attach the choke rod (3) to the
hole (arrow) and push the double
lever (1) onto the pivot pin (4) as
far as stop.
: Attach the throttle rod (arrow) to
the double lever.
7013RA248 TG
1
7013RA249 TG
3
4
2
1
7013RA251 TG
: Place carburetor in position and
attach the choke rod (1) to the
lever (2).
: Attach throttle rod (1) to lever (2)
and position connector (3) on
impulse hose (arrow).
: Hold throttle rod (1) on lever (2)
and push the carburetor into
position as far as stop.
– Install the filter base, b 12.3.1
7013RA252 TG
1
2
7013RA253 TG
2
1
3
: Hold the choke rod (1) vertically.
– Hold the double lever (2) steady,
attach the choke rod (1) and turn
it clockwise until it is behind the
lug (arrow).
: Push the choke rod (1) into the
switch shaft (arrow).
7013RA254 TG
2
1
7013RA255 TG
1
