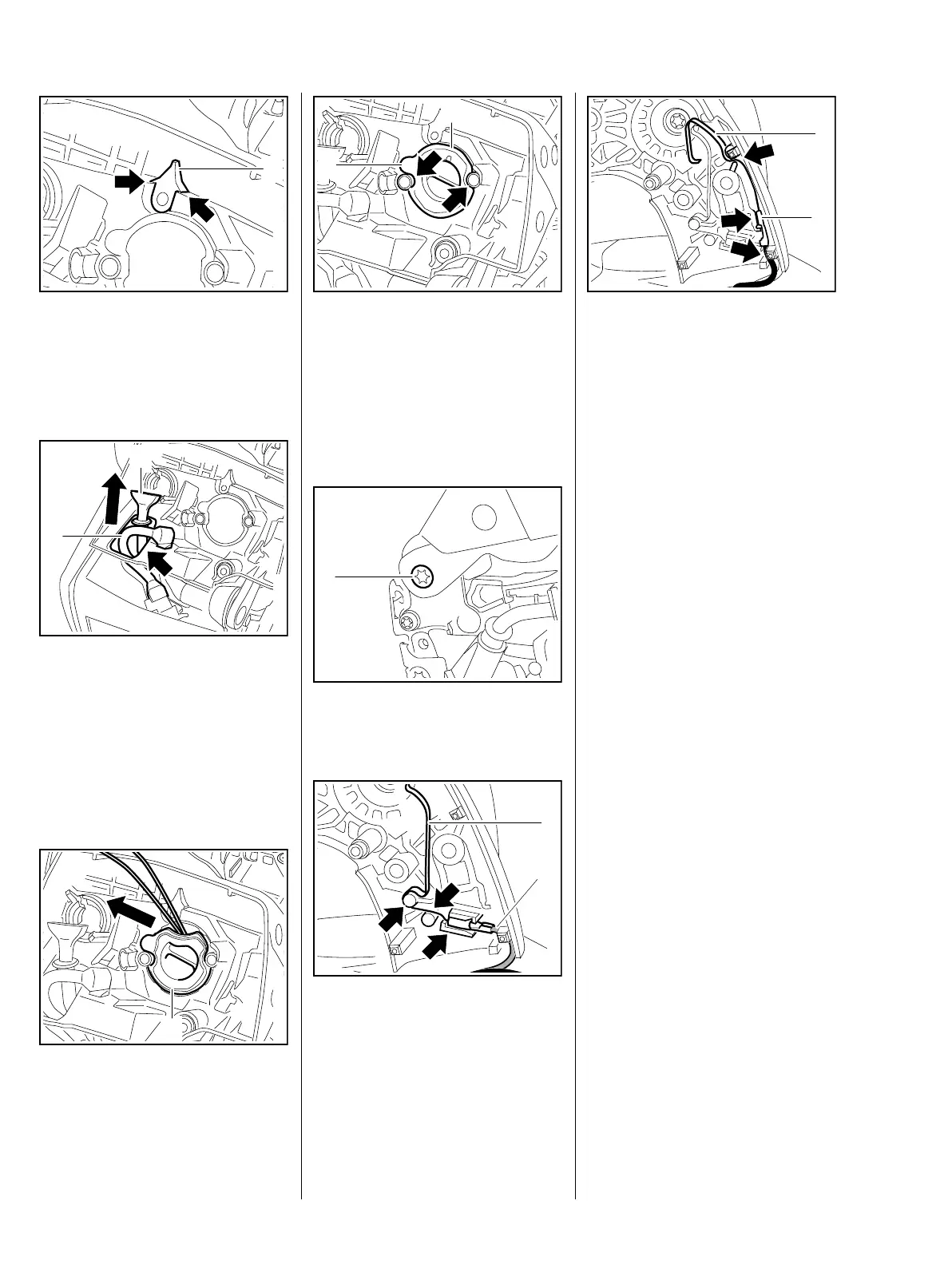

88 MS 201, MS 201 C, MS 201 T, MS 201 TC
Shoulders of fuel suction hose's
tab (1) must engage on the edges
(arrows).
All models
: Thread the tank vent hose (1)
and fuel suction hose (2) through
the opening (arrow).
– Pass the ends of the string
through the hole in the handle
housing and position the handle
housing against the manifold.
: Pull the manifold (1) into position
and remove the string.
1
7013RA306 TG
1
7013RA307 TG
2
7013RA308 TG
1
: Position the manifold flange (1)
so that the recesses (arrows)
locate against the screw sleeves
and the tab (2) is seated in the
recess.
– Install the handlebar, b 9.3.1
: Insert and tighten down the
screw (1) firmly.
: Push the contact spring (1) of
ground wire (2) into the guides
(arrows).
1
7013RA309 TG
2
7013RA299 TG
1
7013RA310 TG
1
2
: Push the contact spring (1) of
short circuit wire (2) into the
guides (arrows).
– Install the AV spring, b 9.2.1
– Install the tank vent, b 12.9
: Install the switch lever, b 10.1.2
– Install the lockout lever and
throttle trigger, b 10.3
– Remove the choke and throttle
rods with double lever, b 10.3.2
– Install the carburetor, b 12.5
– Reassemble all other parts in the
reverse sequence.
– Check operation
