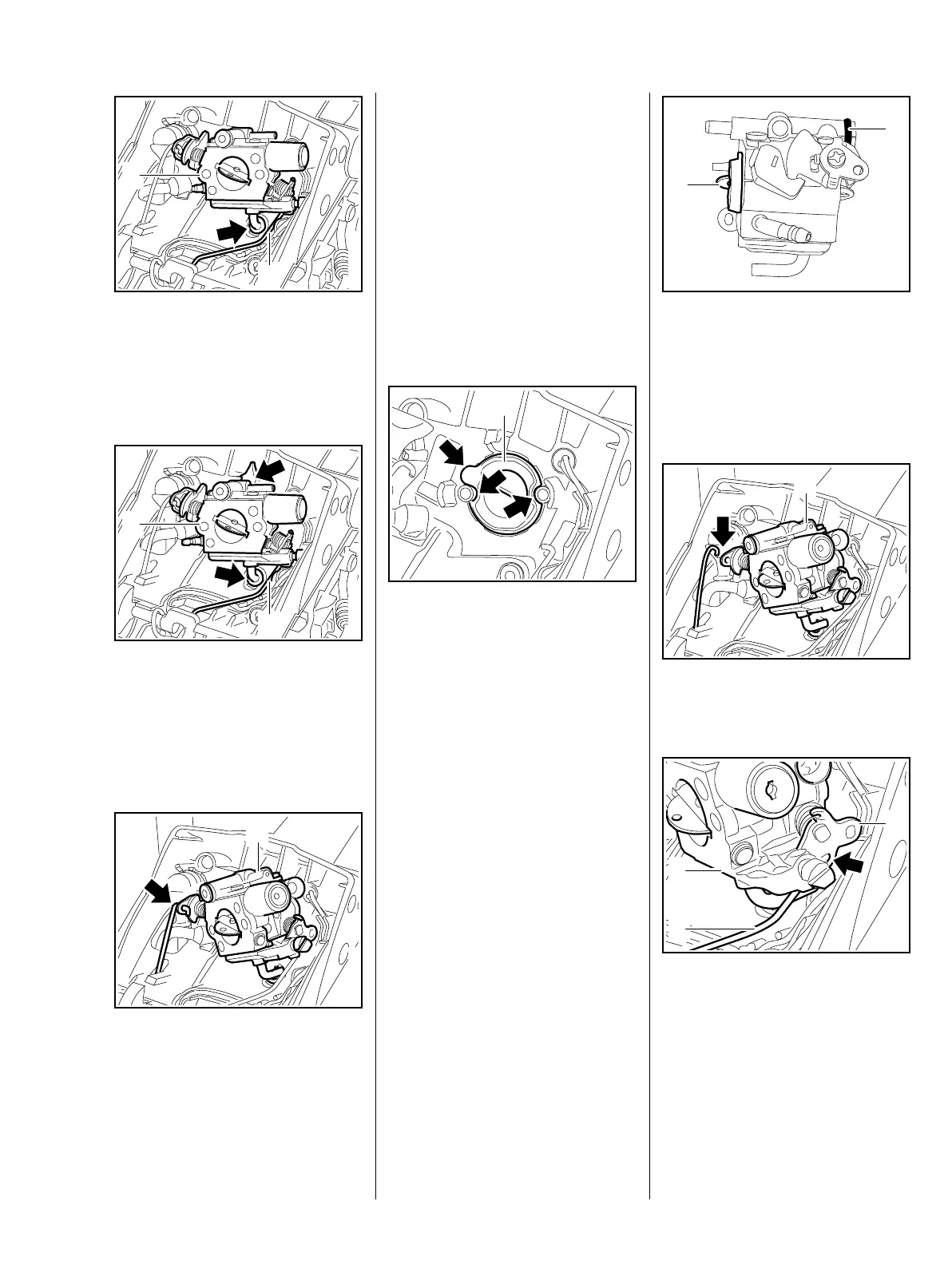

: Pull carburetor (1) off impulse
hose (arrow) and disconnect the
throttle rod (2) at the same time.
Models with manual fuel pump
: Pull carburetor (1) off impulse
hose (arrow) and fuel suction
hose (arrow), and disconnect the
throttle rod (2) at the same time.
All models
: Turn the carburetor (1) slightly
and disconnect the choke rod
(arrow).
7013RA119 TG
1
2
7013RA120 TG
1
2
7013RA121 TG
1
– Check the carburetor and service
or replace if necessary, b 12.6
– Install a new fuel suction hose,
b 12.10.2
Installing
– To ensure the manifold is
properly seated and not under
tension, loosen the annular buffer
on the fuel tank, b 9.1
– Coat the inside of the manifold
with STIHL press fluid to ensure
that the carburetor ring is fully
seated in the manifold, b 14
The flange (1) must be properly
seated (arrows) and not project.
7013RA122 TG
1
Make sure the ring (1) is in place.
Make sure the O-ring (2) is in place.
– Check the individual parts and
replace if necessary.
: Attach the choke rod (arrow) to
the carburetor (1).
: Turn the carburetor (1) slightly
and attach the throttle rod (2) to
the lower opening (arrow) in the
lever (3).
7013RA123 TG
1
2
7013RA124 TG
1
7013RA125 TG
1
3
2
