97MS 201, MS 201 C, MS 201 T, MS 201 TC

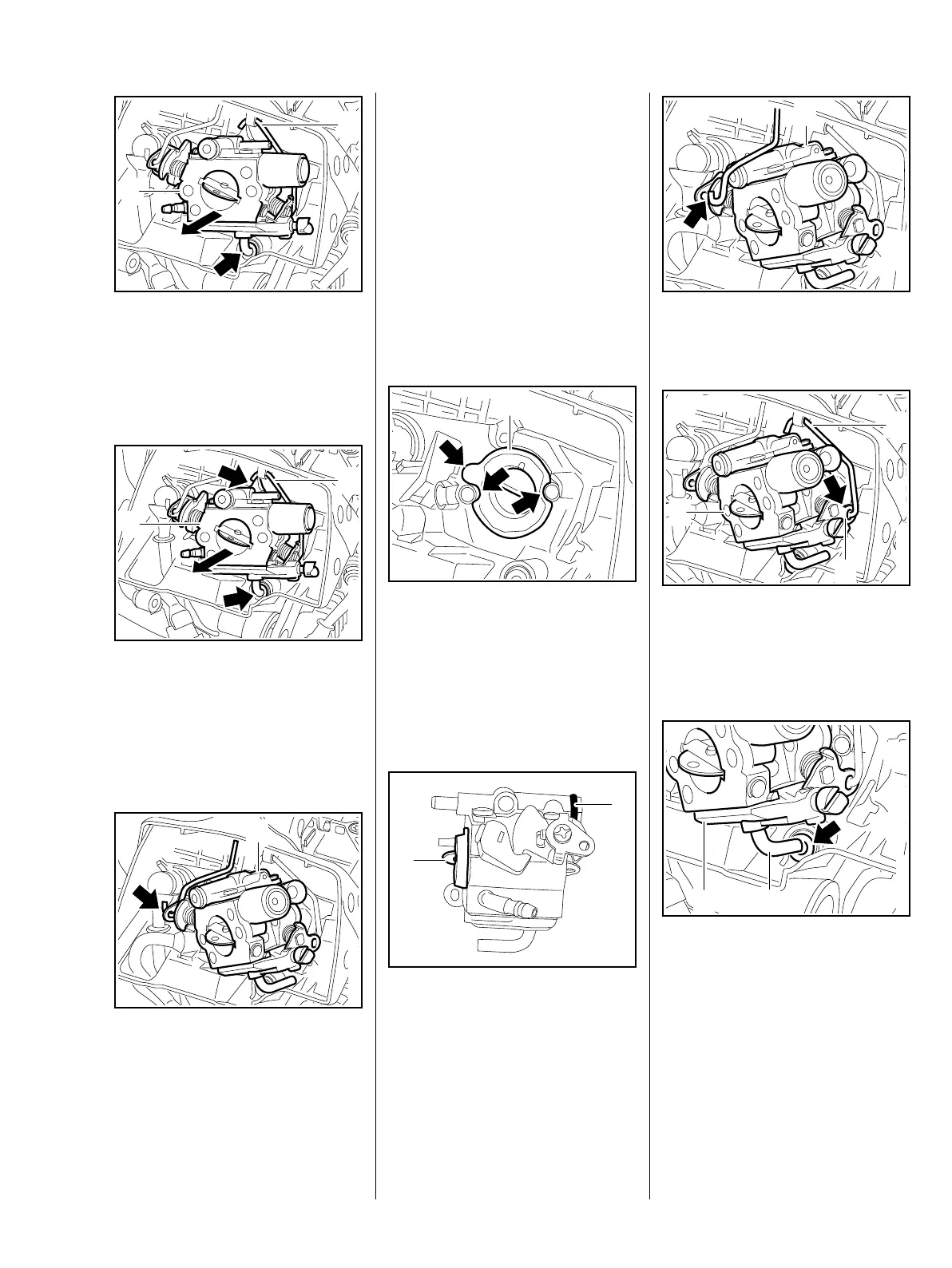

: Pull carburetor (1) off impulse
hose (arrow) and disconnect the
throttle rod (2) at the same time.
Models with manual fuel pump
: Pull carburetor (1) off impulse
hose (arrow) and fuel suction
hose (arrow), and disconnect the
throttle rod (2) at the same time.
All models
: Turn the carburetor (1) slightly
and disconnect the choke rod
(arrow).
7013RA132 TG
1
2
7013RA133 TG
1
2
7013RA134 TG
1
– Check the carburetor and service
or replace if necessary, b 12.6
– Install a new fuel suction hose,
b 12.10.2
Installing
– To ensure the manifold is
properly seated and not under
tension, loosen the annular buffer
on the fuel tank, b 9.1.1
– Coat the inside of the manifold
with STIHL press fluid to ensure
that the carburetor ring is fully
seated in the manifold, b 14
The flange (1) must be properly
seated (arrows) and not project.
Make sure the ring (1) is in place.
Make sure the O-ring (2) is in place.
– Check the individual parts and
replace if necessary.
7013RA135 TG
1
7013RA123 TG
1
2
: Attach the choke rod (arrow) to
the carburetor (1).
: Turn the carburetor (1) slightly
and attach the throttle rod (2) to
the upper opening (arrow) in the
lever (3).
Secure throttle rod to stop it falling
out during carburetor installation.
: Position the carburetor (1) so that
the stub (2) points towards the
impulse hose (arrow).
– Push carburetor into position until
it locates against the manifold.
7013RA136 TG
1
7013RA137 TG
1
2
3
7013RA138 TG
2
1
