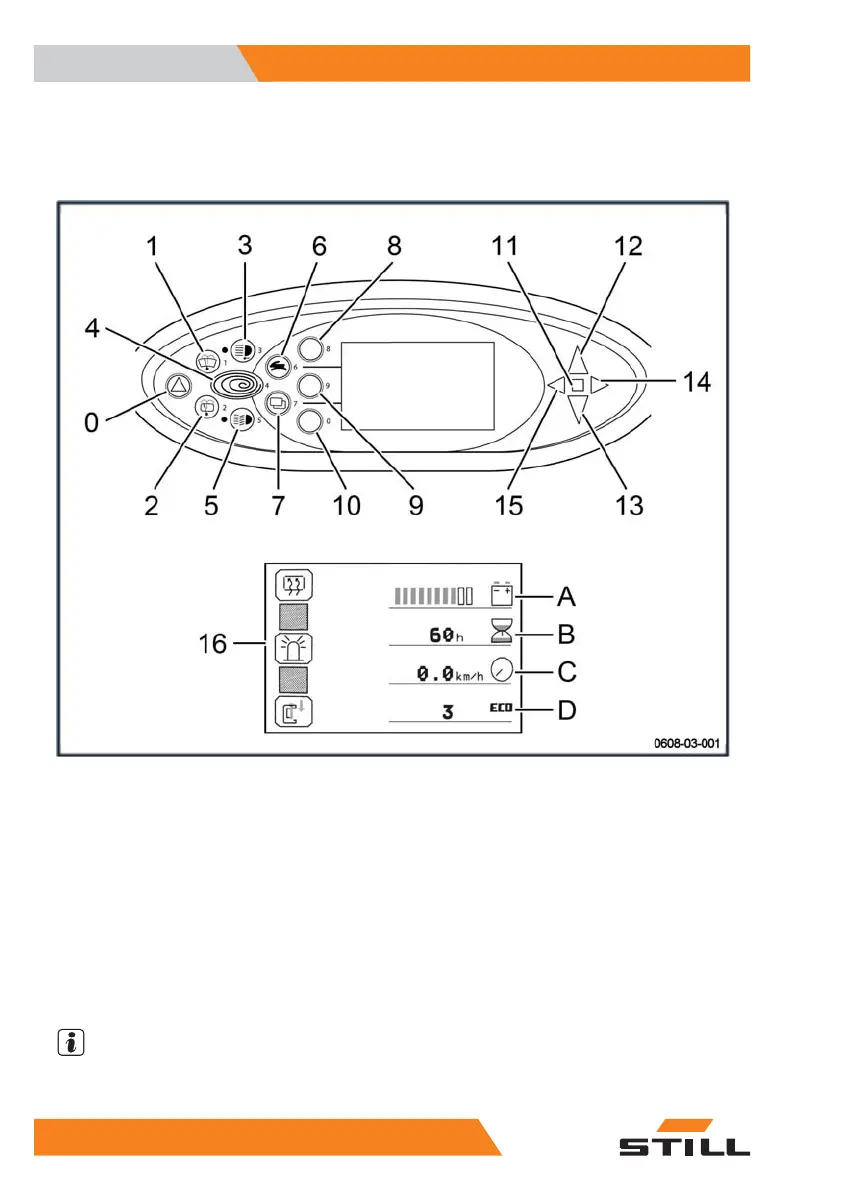

Control and display components
Display
Hazard warning light button
Front windscreen wiper button
Rear window wiper button
Work light button
Blue-Q mode button
Signal lights button
Drive programme selection button
Button for changing the display
Rear demisting menu
Rotating beacon button
Button for accessing options (if enabled)
Stop indicator light
Forwards travel indicator light
0
1
2
3
4
5
6
7
8
9
10
11
12
Reverse travel indicator light
Right turn indicator light
Left turn indicator light
Start-up screen
Menu 1: Battery charge status/Menu 2: Hour
meter
Menu 1: Gradient of the slope/Menu 2: Num-
ber of hours before the next service inspec-
tion
Menu 1: Speed/Menu 2: Drive programme
selection mode
Menu 1: Clock/Menu 2: Number of kilome-
tres per day
13
14
15
16
A
B
C
D
NOTE
If the time is no longer displayed, please con-
tact the after-sales service department.
