• Common installation of EtherCAT master and POSITool on a PC or industrial
PC (IPC).
• The EtherCAT network on which the POSITool over EtherCAT is to be used
must be fully placed in operation. On this aspect, pay attention to 11
Commissioning with TwinCAT®.
• The mailbox gateway for the EtherCAT master must be activated. On this
aspect, pay attention to 12.2 Activating mailbox gateway.
• The EtherCAT network must be in the PREOP (Pre-Operational) state. The
other states Safe-Op (Safe-Operational) and Op (Operational) are possible,
provided you do not want to send a configuration from POSITool to the
inverters.

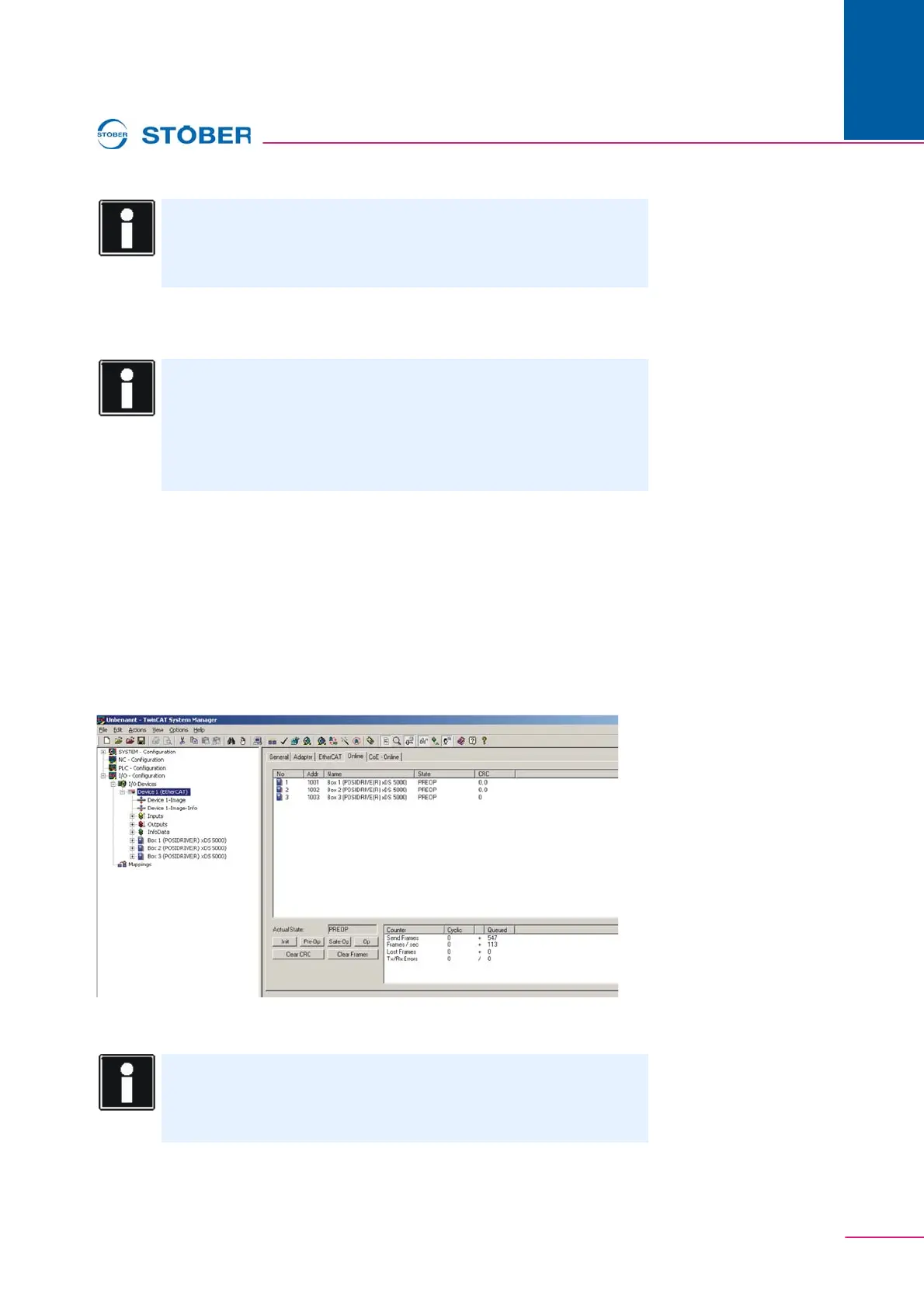

Fig. 12-2 State of the EtherCAT network
Information
For correct communication, the EtherCAT master software and the
mailbox gateway it contains must work correctly. The manufacturer of
this software is solely responsible for this function!
Information
For correct communication, it is necessary to carefully configure the
EtherCAT; the devices must also be correctly allocated in the POSITool.
The user is responsible for ensuring communication is with the specific
inverter intended. Any mistakes in the address or position of the
inverter cannot be detected or prevented by the inverter or POSITool!
Information
While working with POSITool ensure simultaneous access (mailbox,
CoE/SDO) to the inverter parameters by a controller program is not
possible.
