Stober MDS 5000 - 2 Sending Inverter Data to Ethercat

12
POSITool over EtherCAT
ID 441896.05
WE KEEP THINGS MOVING
Operation manual
86

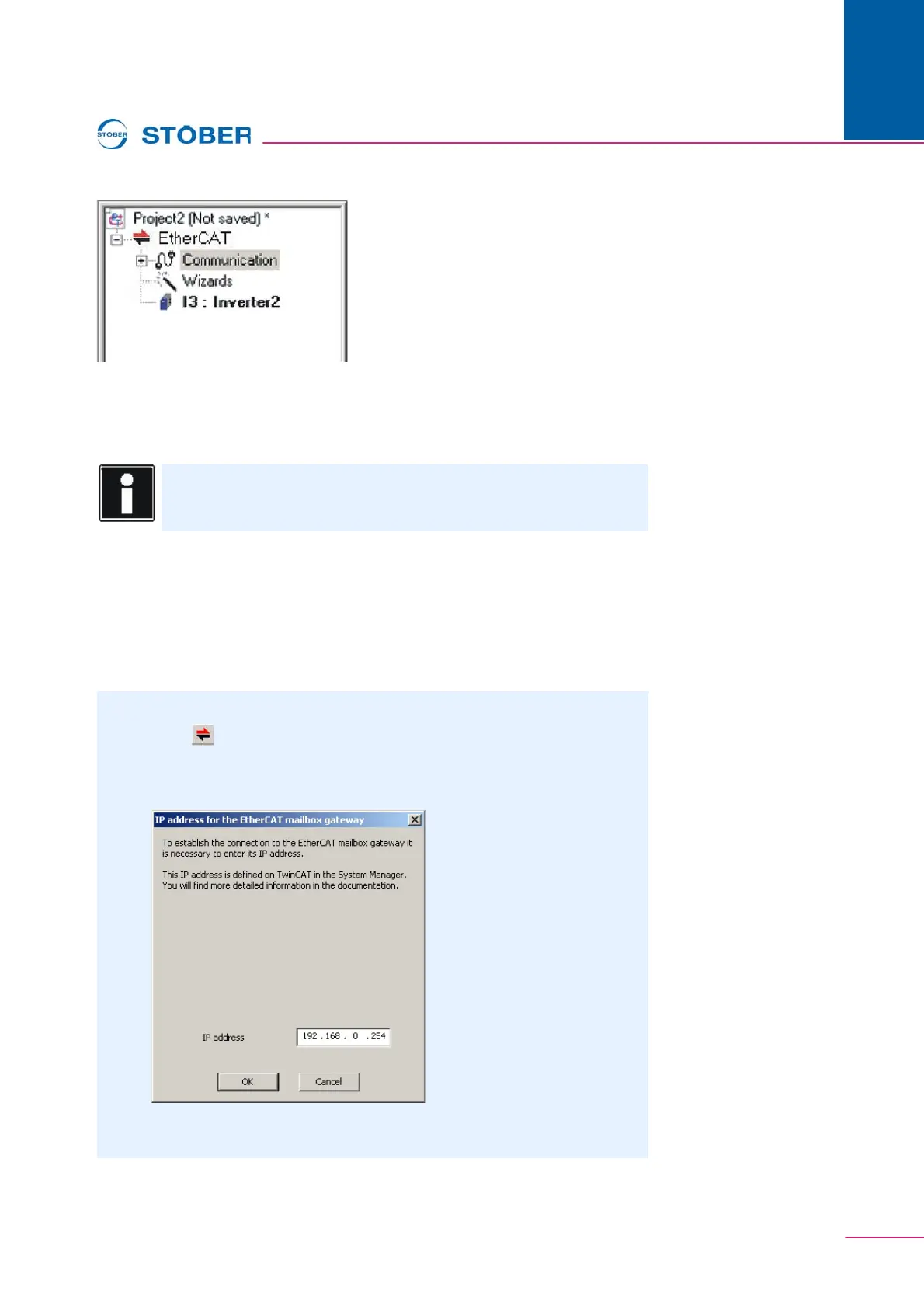

Fig. 12-4 Establish connection in the project view
12.3.2 Sending inverter data to EtherCAT®
To be able send existing project data to an inverter, the following requirements
must be met:
• You have added an EtherCAT entry to your project (see 12.4 Management).
• You have allocated the inverter with which you want to communicate to the
EtherCAT entry using the POSITool over EtherCAT function. (see 12.4
Management)
Then proceed as follows:
Information
Ensure all the requirements in 12.1 are met before you use the
POSITool over EtherCAT function.
Sending inverter data to EtherCAT
1. Click the button.
 The IP address for the EtherCAT mailbox gateway dialog screen is
displayed:
2. Type the IP address for the mailbox gateway that you noted during activation
(see 12.2 Activating mailbox gateway).
