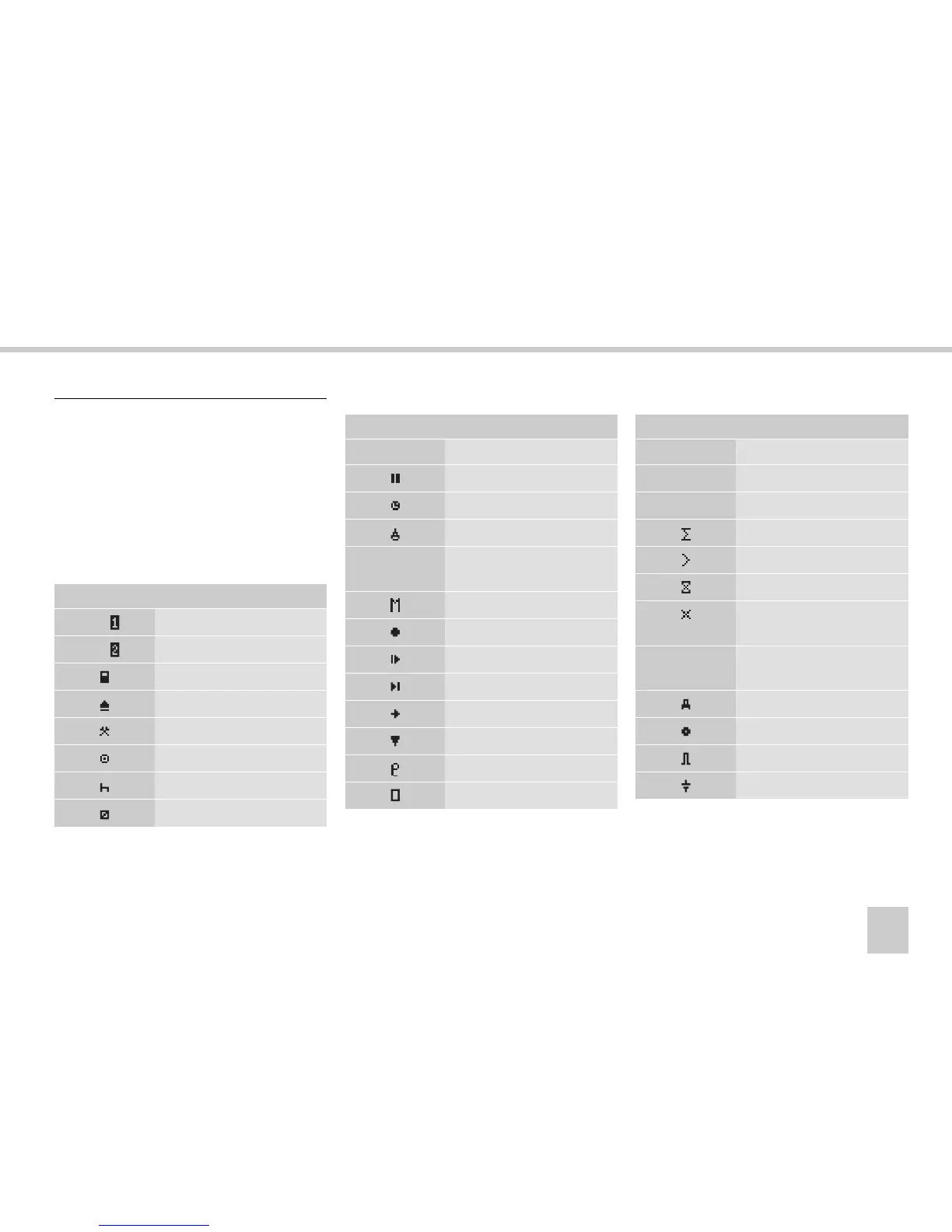

Stoneridge SE5000 - Symbols

63
Displays and data
Displays
The symbols shown on the display and the
printouts represent persons, activities or
processes of the VU.
The symbols may also appear in combina-
tion (컄 Symbol combination meanings‚
page 65).
Symbol meanings
Symbols
Symbol Meaning
1,
Driver 1
2,
Driver 2
Driver card
Eject
Work
Driver/driving
Rest
Availability
Symbol Meaning
? Question/unknown
Break
Time
Ferry/train journey
OUT Monitoring equipment
not required
Manually entered activity
Location
Start of work
End of work
From or to
Printout
Paper
Display
Symbol Meaning
24h Daily
|
Weekly
||
Two weeks
Cumulative.../summary
Speed
Processing, please wait
Message, warning or
malfunction
! Message, warning or
malfunction
Vehicle, VU
Tyre size
Sensor
Power supply
