Stonex S9III Plus GNSS Receiver – User Manual 42
Click on button “OK“ to confirm.
5.2.3.4. Bluetooth
This option give us the possibility to use the internal Bluetooth device for RTK
data exchange.
In this case the same channel used for sending commands to receiver and
getting position information from receiver is used also for transmitting the
differential corrections from handheld to the receiver, for example if the
handheld is connected through internet or it is connected to a mobile phone
connected to internet. Please remember that if you select Bluetooth as
datalink, you do not see any datalink led on the display.

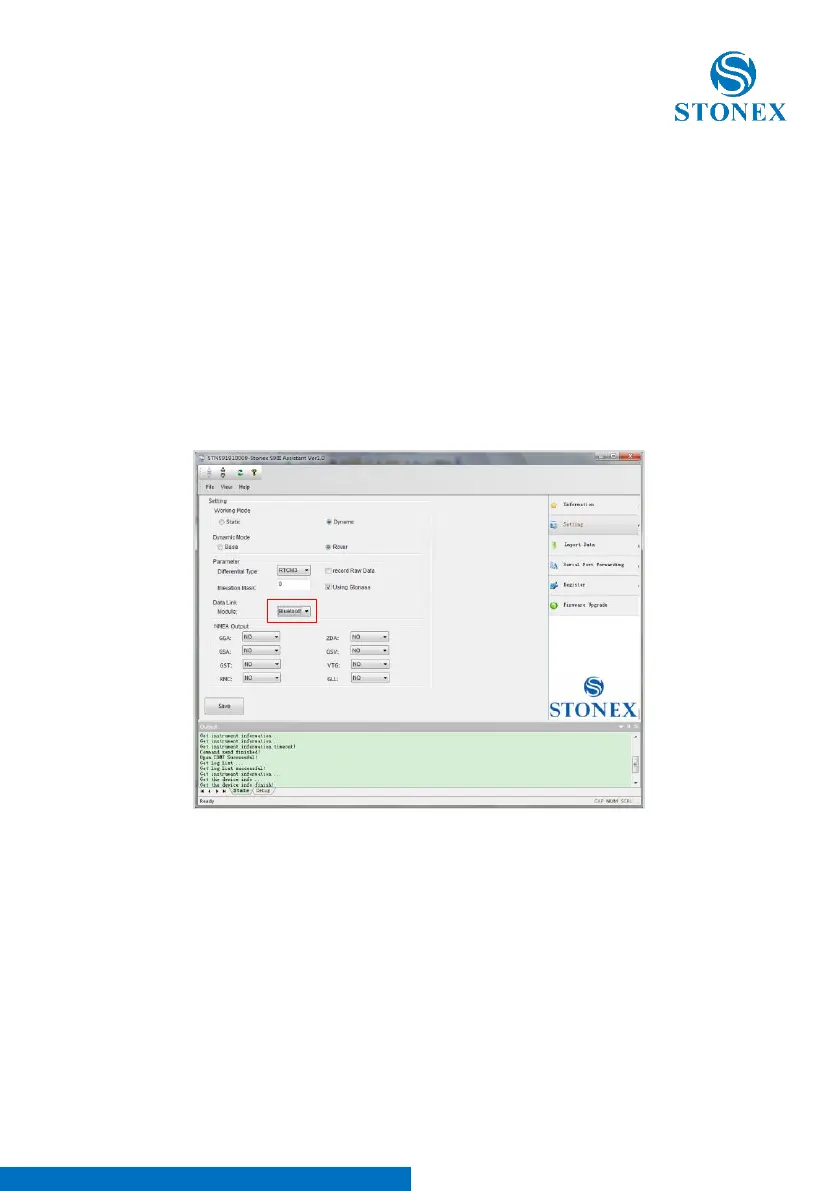

Fig. 5.19 - Bluetooth
When you have completed all your selection, please click on “Save” button
and the configuration will be stored inside S9 III PLUS memory.
5.2.3.5. No Datalink – only for Rover
This option has to be selected if customer don’t need any kind of corrections.
