STONEX S9III Plus - 5.2.3. Datalink Options Configuration

Stonex S9III Plus GNSS Receiver – User Manual 35

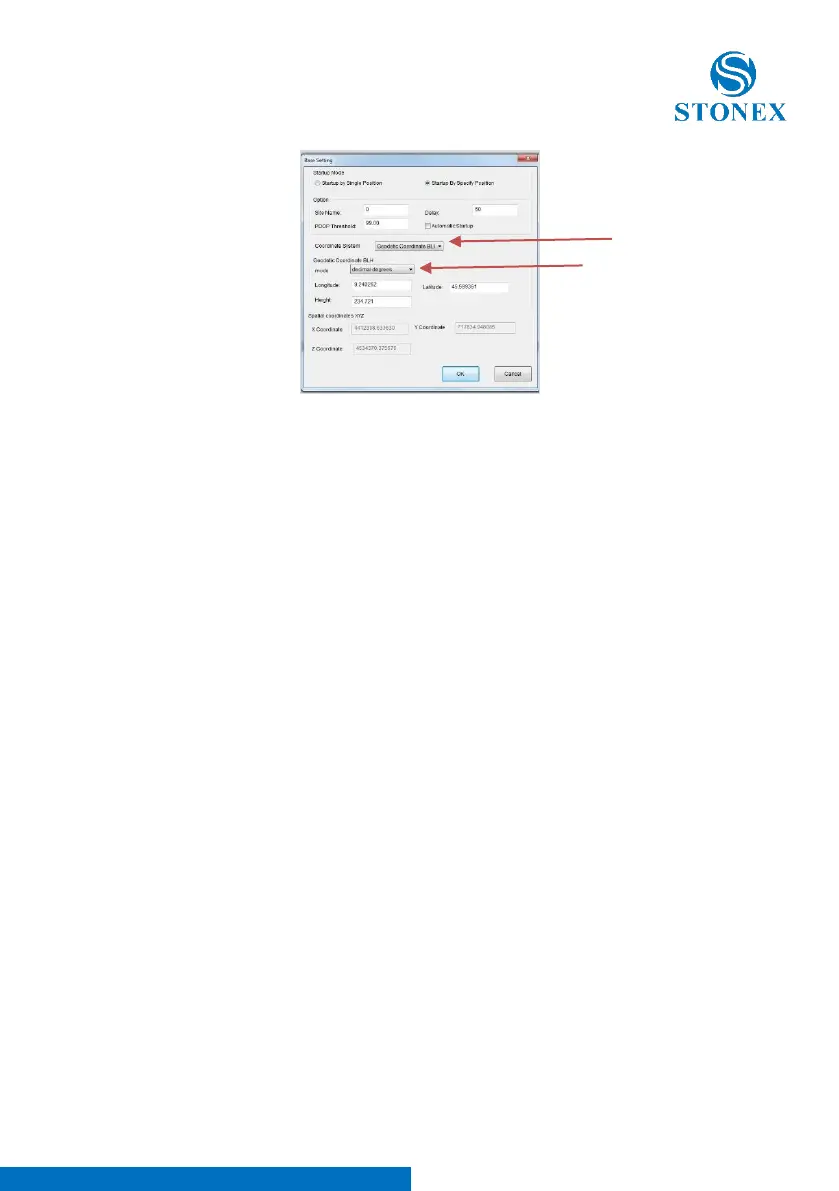

Fig. 5.10 – Startup by a specific position
5.2.3. Data Link
Here you can select the type of datalink used to get/provide differential
corrections.
Four different options are available for “rover” mode: GPRS/GSM modem
(“Network”), internal radio (“UHF”), external radio or external device
(“External”), Bluetooth device (“Bluetooth”), or no datalink (“No Data link”).
In the “base” mode we have the same first four choices (Network, UHF,
External, Bluetooth) and another choice, that is “Network and External”, which
allows base to transmit at the same time to the GPRS/GSM modem and to the
external device.
5.2.3.1. Network
This option is relative to get GNSS differential corrections from a CORS system.
1
2
