2.3. The battery housing
1. SIM card slot
2. MicroSD card slot
3. Battery
4. Battery cover
Under the place for the battery, there is the slot for SIM card and SD memory
card.
2.4. Indicator leds and instrument setup

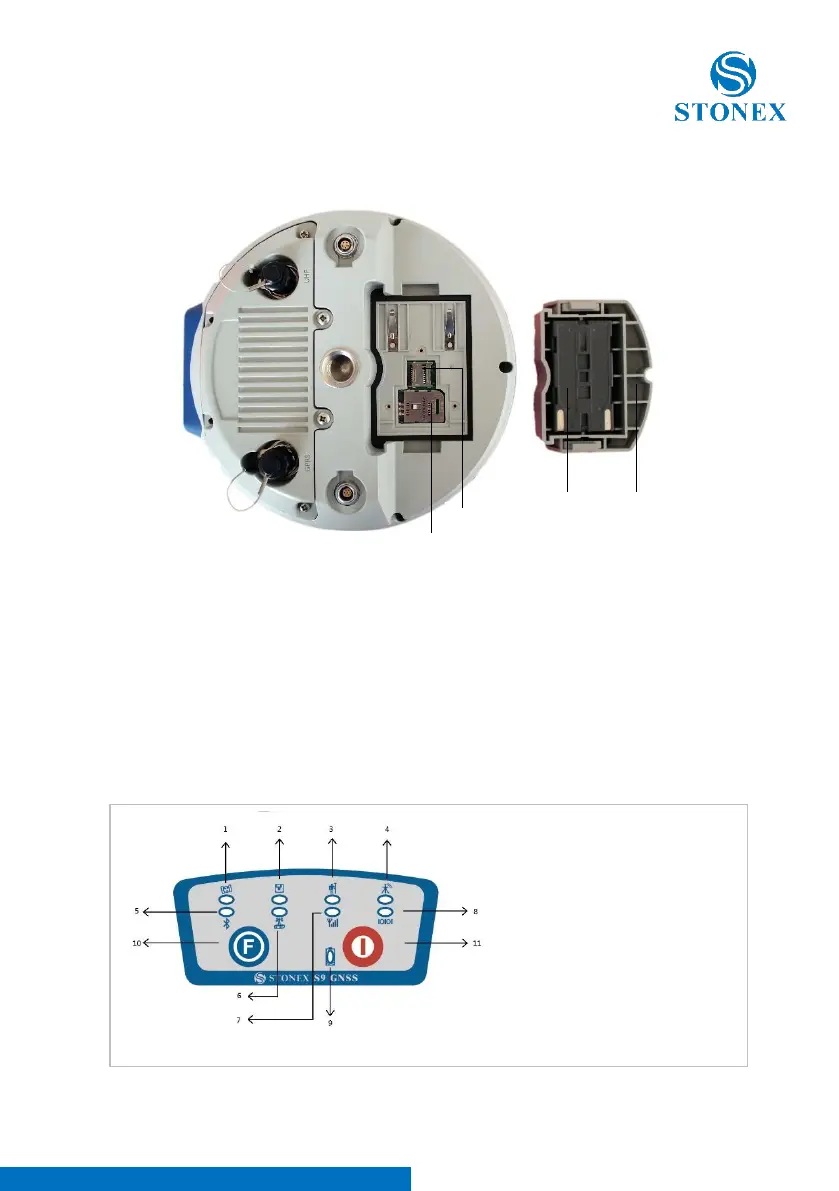

Fig. 2.6 - S9III PLUS battery housing
1. satellite led
2. static led
3. rover led
4. base led
5. Bluetooth led
6. UHF internal radio led
7. GSM/GPRS led
8. External data link led
9. Power supply led
10. Function Key
11. Power Key
Fig. 2.7 - S9III PLUS keys and indicator leds
