Stonex S9III Plus GNSS Receiver – User Manual 8
The functionality as follows, from left to right:
SATELLITE led (green):
It shows the amount of locked satellites;
when the receiver links one or more
satellites signal it will start to blink every
30 seconds for a number of times equal to
the number of locked satellites.
STATIC led (red):
It switches on if the static mode is selected
and it starts to blink when the receiver is
recording data, with the same frequency
of the sample rate.
ROVER led (red):
Rover led is on when the receiver is working
in rover mode.

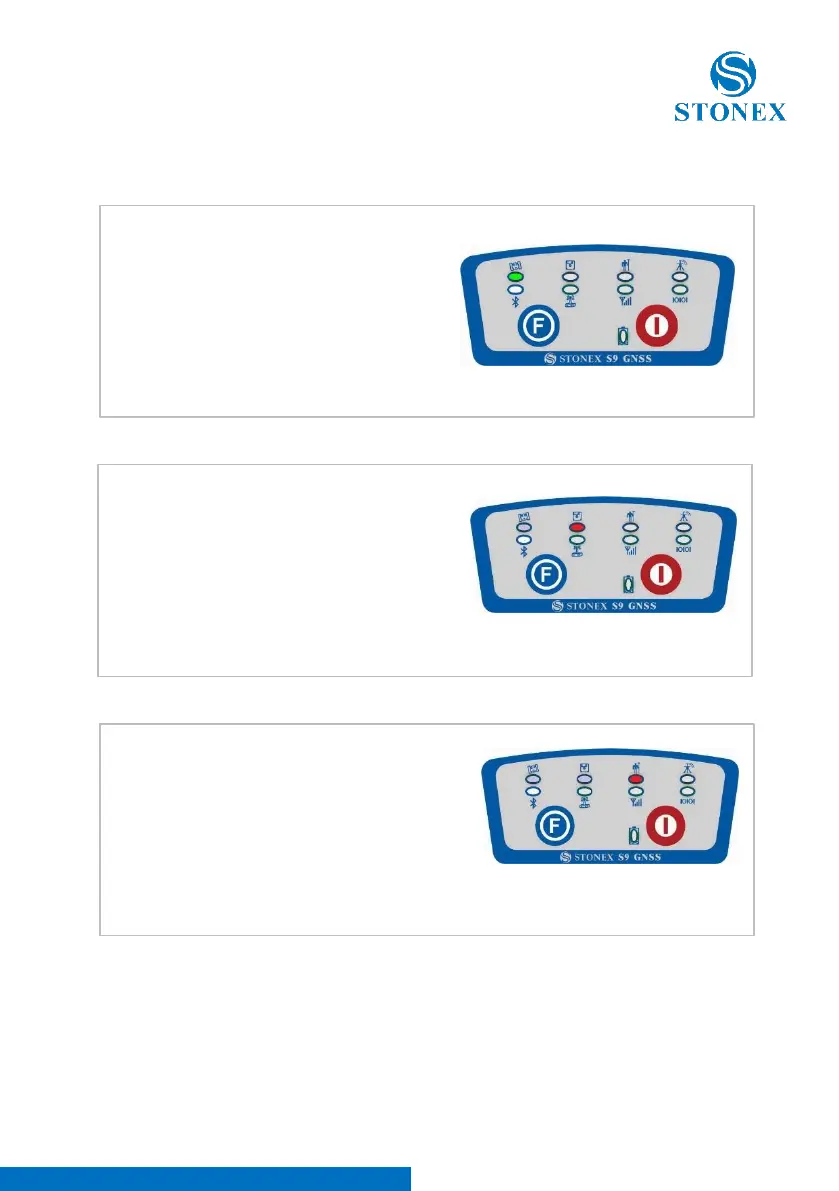

Fig. 2.8 - S9III PLUS satellite led
Fig. 2.9 - S9III PLUS static led
Fig. 2.10 - S9III PLUS rover led
