PLATEN
The steel platen provides the level surface on which parts are built. A substrate is securely affixed to the platen
using the substrate ejection handle. After placing a substrate on the platen lifting up on the handle will lock the
substrate into its build position; pressing down on the handle will release the substrate from the platen for
removal.
The tip offset calibration targets are located on the rear center portion of the platen. These targets are used
when determining the X and Y offset between model and support tips after either head has been replaced
(during an automatic Tip Offset Calibration).

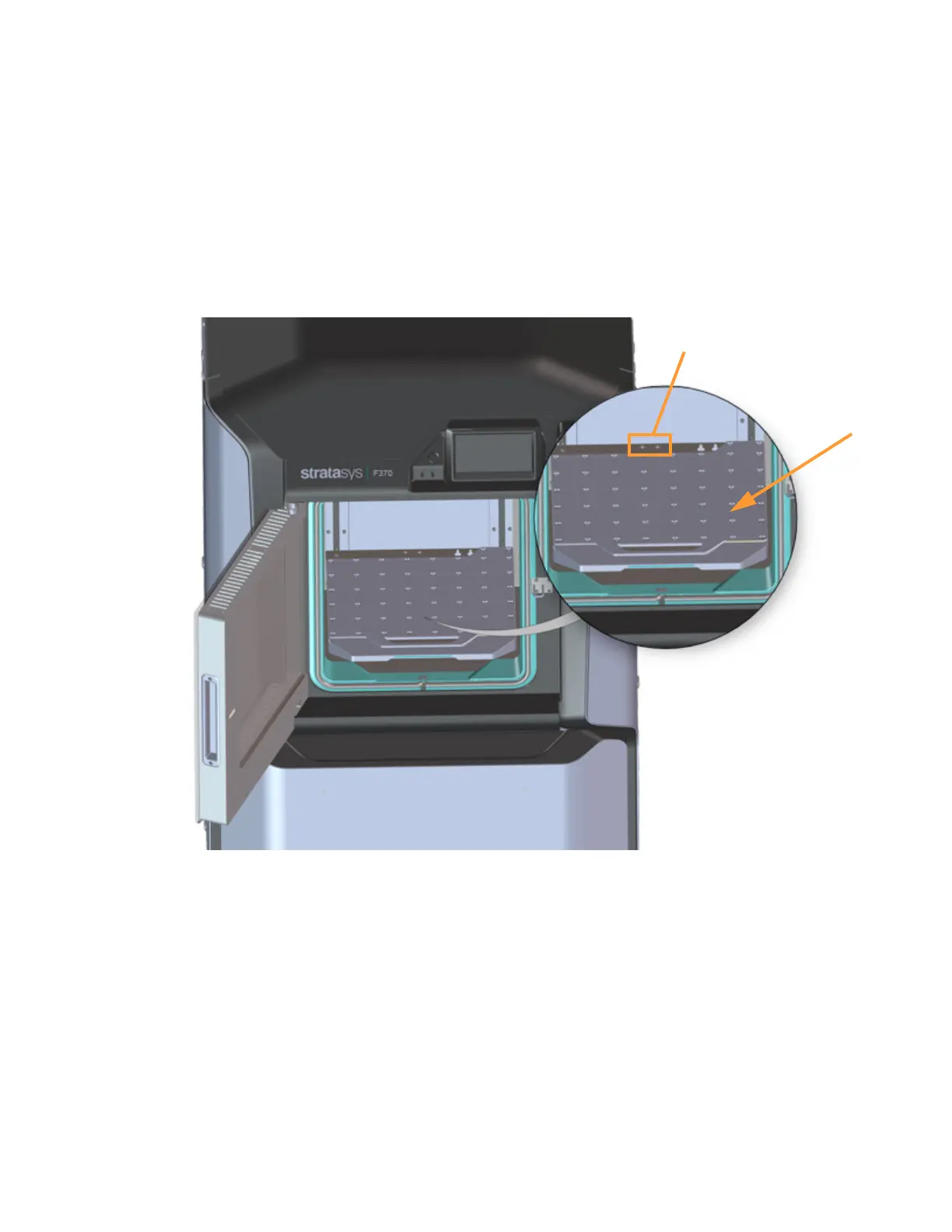

Figure 3-7: Platen Components
Platen
Tip Offset
Calibration
Targets
