Next Steps

10-10 Stratus ftServer 29x0, 49x0, and 69x0 Systems: Site Planning and Installation Guide (R786)

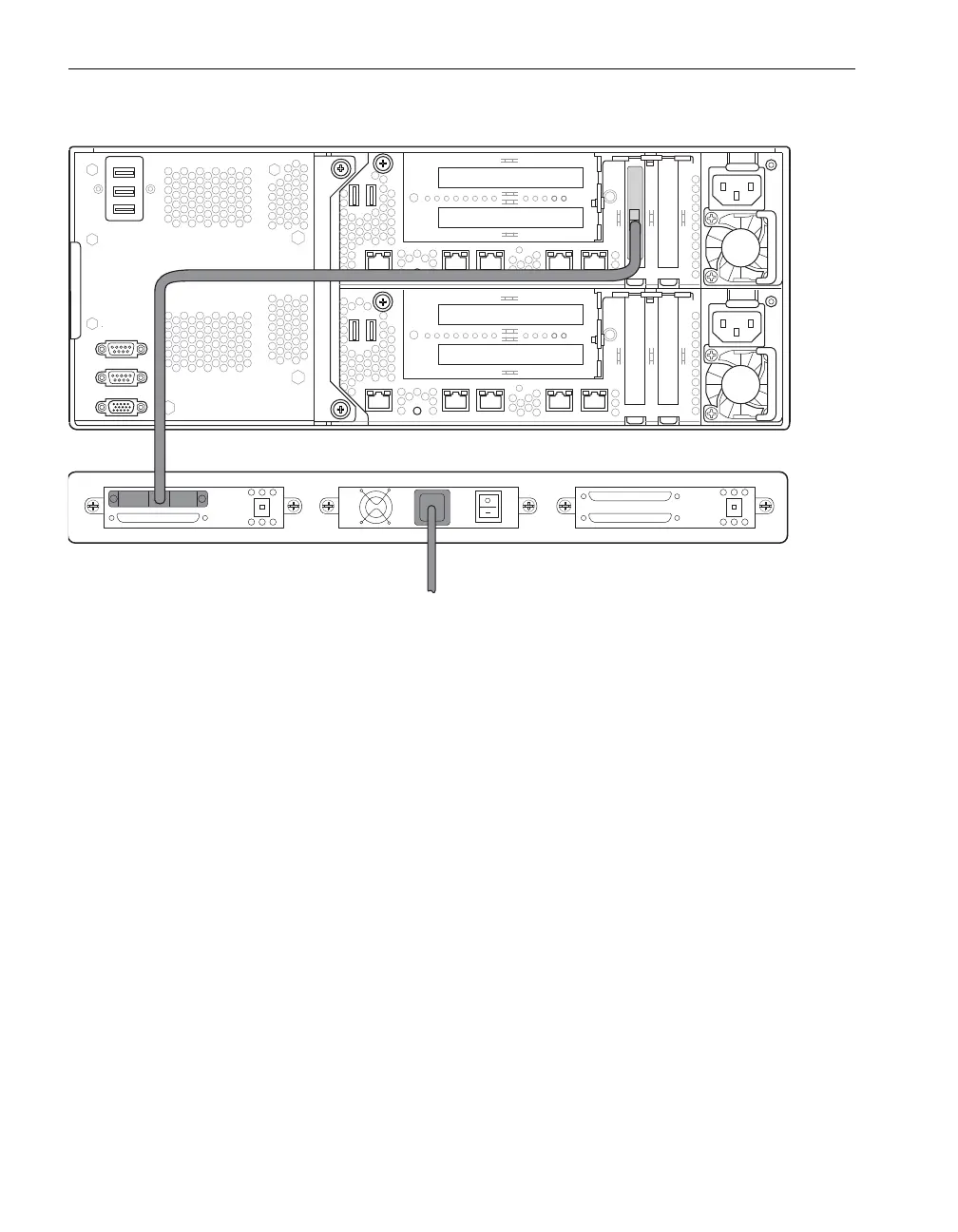

Figure 10-4. Connecting a Tape Drive to an ftServer System

For more information about installing and connecting the tape drive, see the tape drive

manufacturer’s documentation.

For information about the tape-drive models that have been tested with Stratus ftServer

systems, see http://stratadoc.stratus.com/genref/refsell/qualified_equipment.html.

Next Steps

Connect the system to electrical power as described in Chapter 11.

peg016
