Installing a System Chassis
9-20 Stratus ftServer 29x0, 49x0, and 69x0 Systems: Site Planning and Installation Guide (R786)
11. Reinstall the front panel into the shelf unit as follows:
a. Align the front panel with the slot in the front right side of the shelf unit and push
it straight into the slot, as shown in Figure 9-17.
b. Tighten the captive thumbscrew (number 2 in Figure 9-11) at the bottom of the
panel.

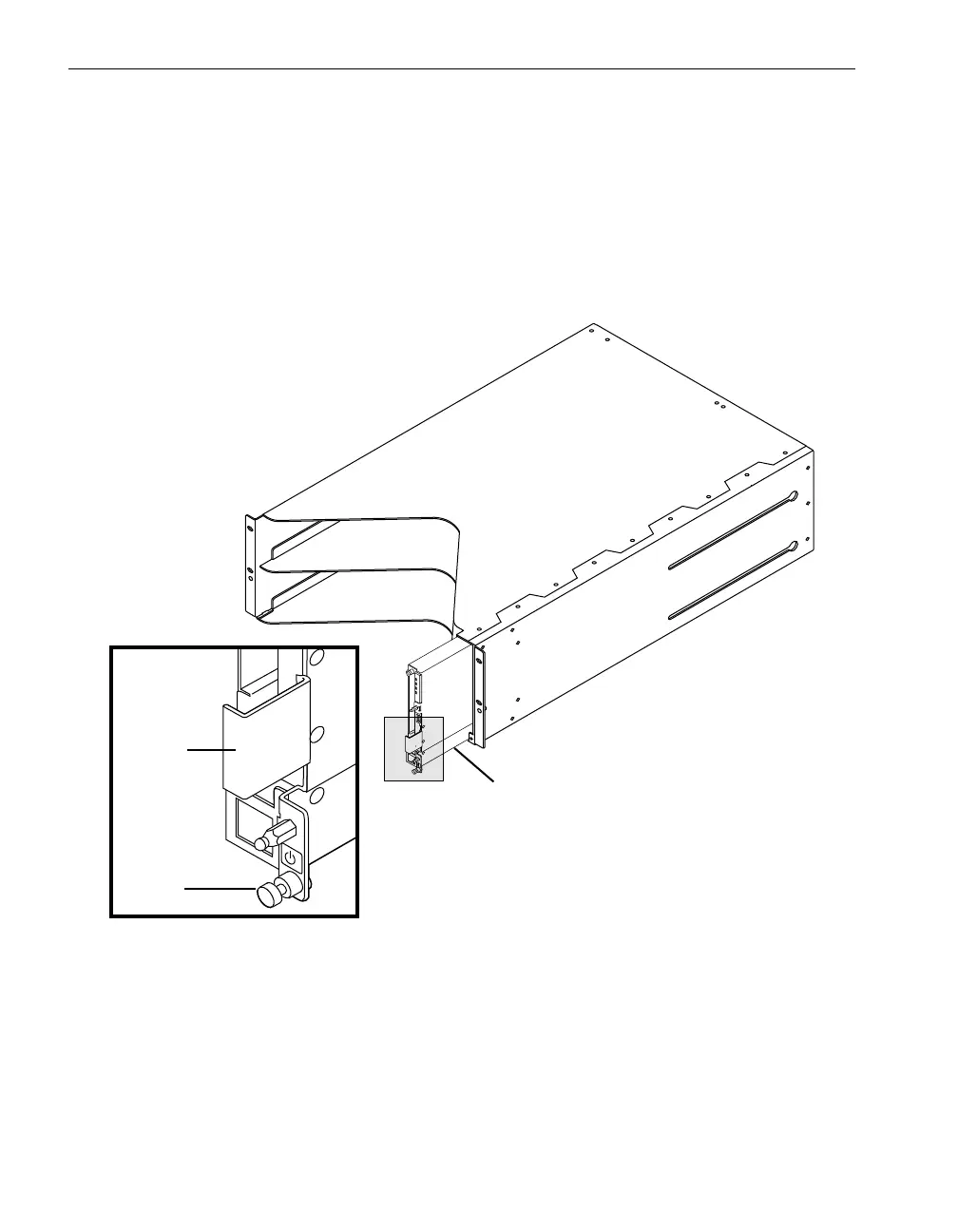

Figure 9-17. Replacing the Front Panel in the Shelf Unit
1 Front panel 2 Captive thumbscrew 3 Bracket
2
3
1
peg043
