Installing PDUs (Optional)
9-8 Stratus ftServer 29x0, 49x0, and 69x0 Systems: Site Planning and Installation Guide (R786)
To install a PDU
1. For each PDU, insert four cage nuts in the rear vertical cabinet rails. Insert two
cage nuts in each rear rail, in the top and bottom holes of U positions 1 and 2. The
locations in which to install the cage nuts for two PDUs are indicated in Figure 9-5.
Figure 9-5. Cage Nut Locations: PDU

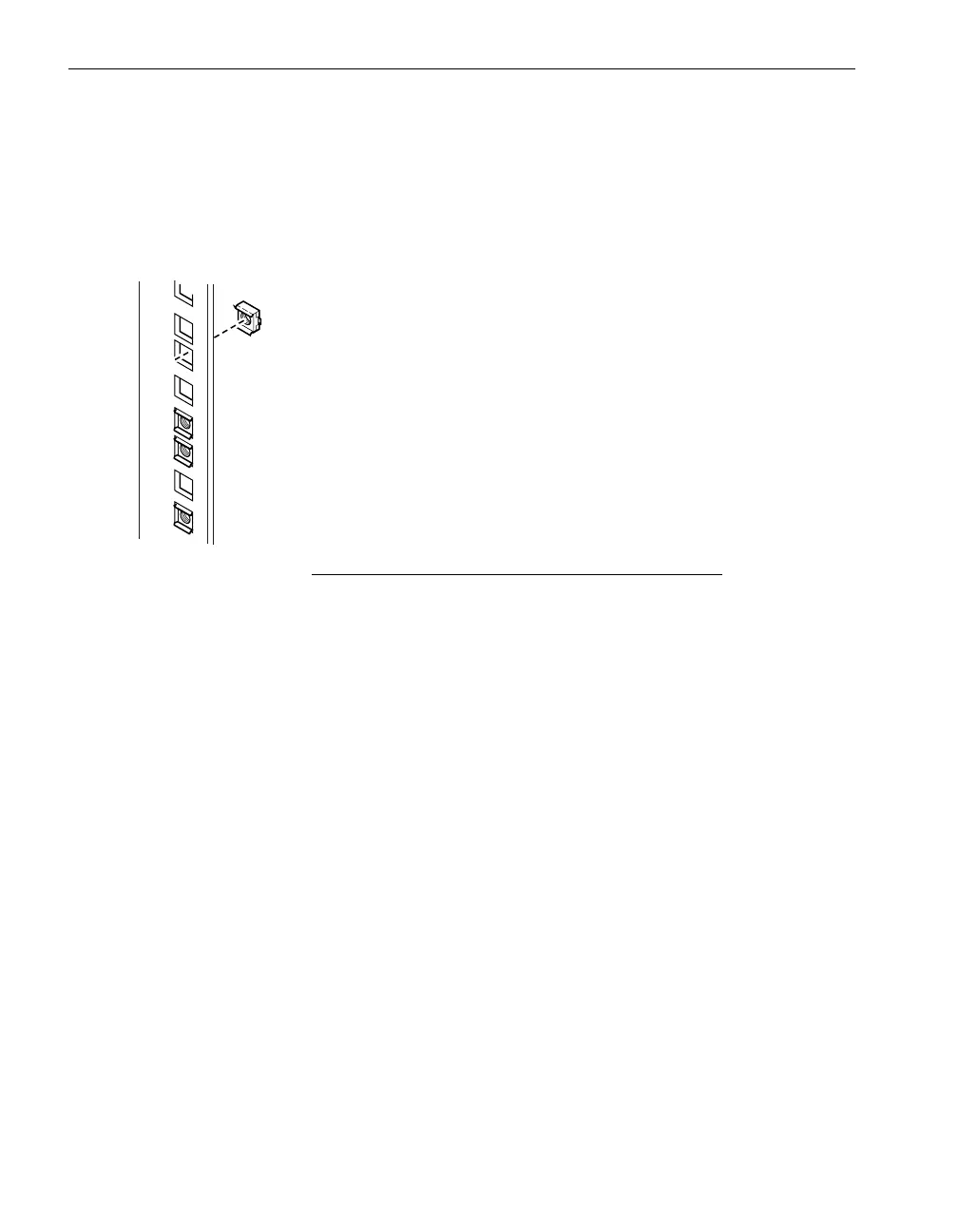

To insert cage nuts, position them so that the tabs are on
the top and bottom (Figure 9-6). Then insert the cage nut
so that its top overlaps the vertical rails, and use a
cage-nut insertion tool or your fingers to pull the rest of the
cage nut through so that the bottom tab overlaps the
vertical rail.
